Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > UPS Function 3KW Solar Energy Storage System Solar Home Energy System

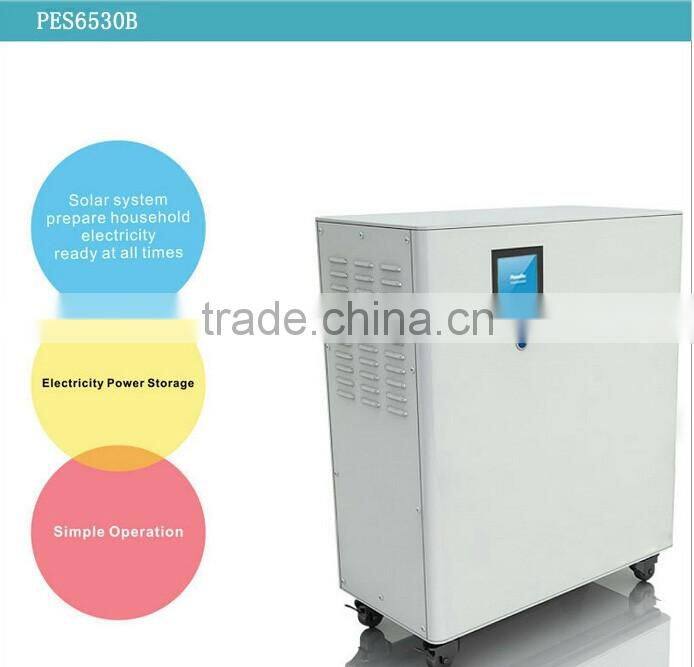

UPS Function 3KW Solar Energy Storage System Solar Home Energy System

Name: UPS Function 3KW Solar Energy Storage System Solar Home Energy System
Brand: Frontier
SKU: 141784562
Availability: InStock

Shanghai Frontier Energy Technology Co., Ltd.

UPS Function 3KW Solar Energy Storage System Solar Home Energy System thumbnail-1

UPS Function 3KW Solar Energy Storage System Solar Home Energy System thumbnail-2

UPS Function 3KW Solar Energy Storage System Solar Home Energy System photo-1

UPS Function 3KW Solar Energy Storage System Solar Home Energy System photo-2

US$ 1 - 2 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Frontier

Model Number:

FES8030B

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Frontier

Model Number FES8030B

Specification Normal

Application Home

Output Voltage (V) AC100-240V

Load Power (W) 3000W

Solar Power (W) 2400W

Work Time (h) Depends

Specifications

3kw hybrid solar energy storage unit

A Solar Energy Storage System with Solar&AC charger, Li-ion Battery with Advanced BMS, Pure Sine Wave Inverter with UPS Function and Other Control Circuit Modules.

Main Parameters As Below.

1. Charging: Solar MPPT-2400W and AC 1600W;

2. AC output: 2000W/3000W(90V-260V),pure sine wave;

3. Li-ion battery: 52V6630Wh;

4. UPS function

5. Optional WiFi/WLAN communication port

6. On/Off gird work

7. Touch LCD display screen

Clearn energy portable high capacity solar battery energy storage system with built-in li-polymer battery 6.5kWh solar power supply

All-in-one ESS (Energy Storage System)

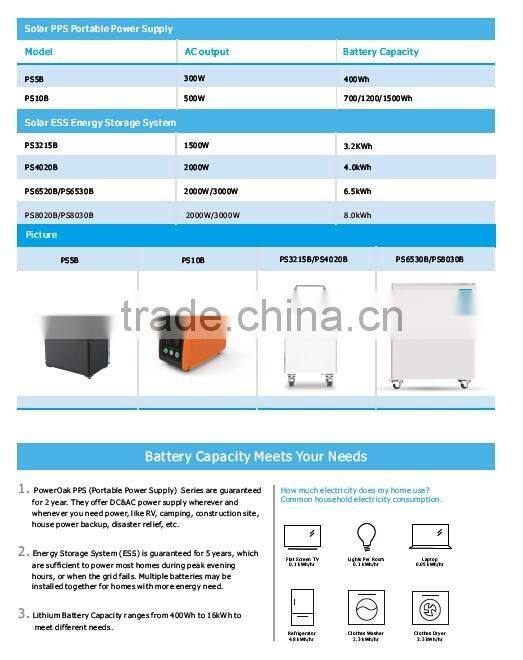

Model No.	FES3215B	FES4020B	FES6530B	FES8030B
Battery
Battery Capacity	3.2kWh	4.0kWh	6.5kWh	8.0kWh
Output
Rated Output Power	1500W	2000W	3000W
Peak Output	2250W	3000W	4000W
Output Voltage	100/110/120V & 220/230/240V
Output Frequency	50/60Hz±0.5Hz
Overload Ability	120%<load<130% @10min 130%<load<150% @10s
UPS Function	Yes
On/off Grid	Off Grid		On & Off Grid
Max Efficiency	92%(>70% Load)
AC Charge
Input Voltage	88~264Vac
Power Factor	≥0.94(full load)		≥0.95(full load)
Input Frequency	50/60Hz±0.5Hz
Max Charge Power	600W		2400W
Max Efficiency	>92%
PV Charge
Max Input Power	1200W	1500W	2400W
Start-up Voltage	75Vdc
MPPT Amount	2
MPPT Input Voltage	75~140Vdc
Max Input Voltage	150Vdc
MPPT Efficiency	99.50%
Max Efficiency	>96%
Solar Charing Model	MPPT
General
Working Condition	Relative Humidity:5%~90%
	Temperature:0~45℃

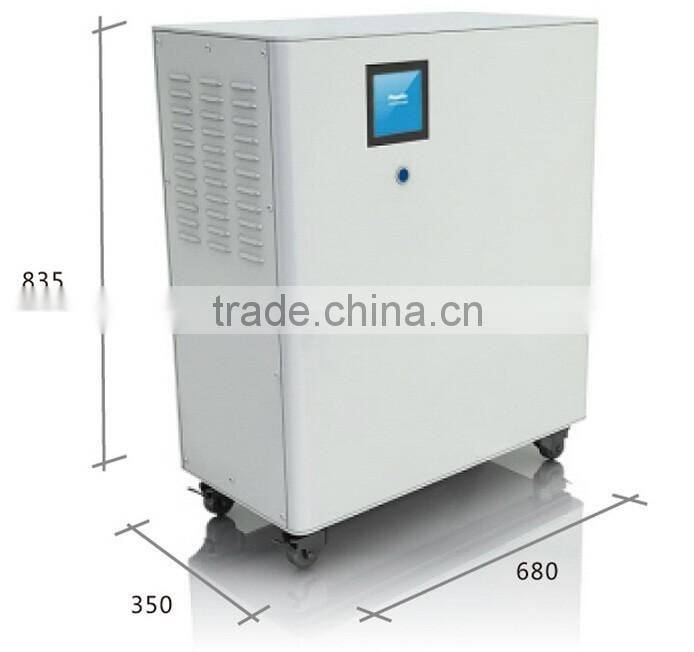

Product Dimension	580300600mm		779350912mm
Packing Dimension	657375645mm		8805251080mm
Net Weight	47Kg	59Kg	135Kg	157Kg
Gross Weight	50Kg	62Kg	160Kg	185Kg
Note: 110V AC output power for PS6530B & PS8030B is 2000W
