6.5KWH/8.0KWH Mobile Home Solar Storage System

6.5KWH/8.0KWH Mobile Home Solar Storage System thumbnail-1
6.5KWH/8.0KWH Mobile Home Solar Storage System thumbnail-2

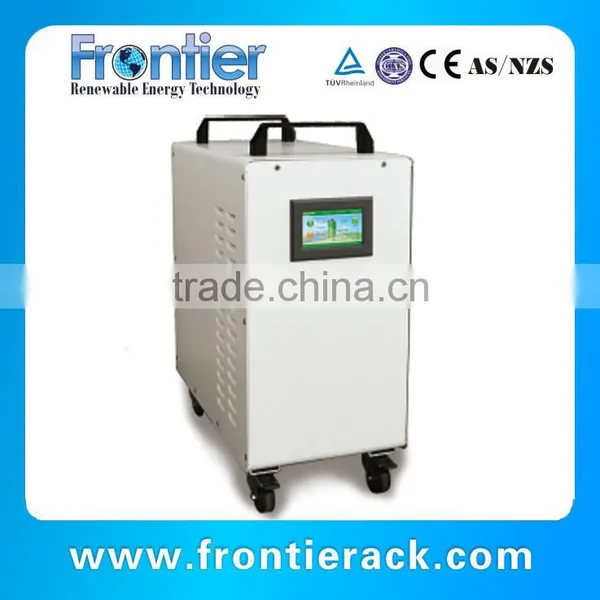

6.5KWH/8.0KWH Mobile Home Solar Storage System photo-1
6.5KWH/8.0KWH Mobile Home Solar Storage System photo-2
US$ 1.8 - 2.4 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Frontier
Model Number:
FES6530B
Contact Supplier Request Quote Chat Now
Shanghai Frontier Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Frontier
Model Number FES6530B
Specification Normal
Application Home
Output Voltage (V) AC100-240V
Load Power (W) 3000W
Solar Power (W) 2400W
Work Time (h) Depends
Specifications
Clearn energy portable high capacity solar battery energy storage system with built-in li-polymer battery 6.5kWh solar power supply
All-in-one ESS (Energy Storage System)
Model No. FES3215B FES4020B FES6530B FES8030B
Battery
Battery Capacity 3.2kWh 4.0kWh 6.5kWh 8.0kWh
Output
Rated Output Power 1500W 2000W 3000W
Peak Output 2250W 3000W 4000W
Output Voltage 100/110/120V & 220/230/240V
Output Frequency 50/60Hz±0.5Hz
Overload Ability 120%<load<130% @10min
130%<load<150% @10s
UPS Function Yes
On/off Grid Off Grid On & Off Grid
Max Efficiency 92%(>70% Load)
AC Charge
Input Voltage 88~264Vac
Power Factor ≥0.94(full load) ≥0.95(full load)
Input Frequency 50/60Hz±0.5Hz
Max Charge Power 600W 2400W
Max Efficiency >92%
PV Charge
Max Input Power 1200W 1500W 2400W
Start-up Voltage 75Vdc
MPPT Amount 2
MPPT Input Voltage 75~140Vdc
Max Input Voltage 150Vdc
MPPT Efficiency 99.50%
Max Efficiency >96%
Solar Charing Model MPPT
General
Working Condition Relative Humidity:5%~90%
Temperature:0~45℃
Product Dimension 580*300*600mm 779*350*912mm
Packing Dimension 657*375*645mm 880*525*1080mm
Net Weight 47Kg 59Kg 135Kg 157Kg
Gross Weight 50Kg 62Kg 160Kg 185Kg
Note: 110V AC output power for PS6530B & PS8030B is 2000W

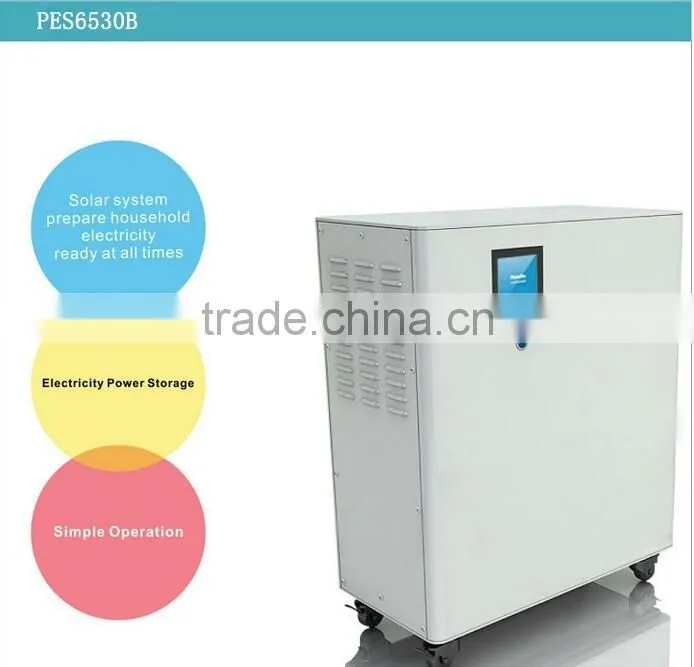

 6.5KWH/8.0KWH mobile home solar storage system

6.5KWH/8.0KWH mobile home solar storage system


6.5KWH/8.0KWH mobile home solar storage system

         6.5KWH/8.0KWH mobile home solar storage system

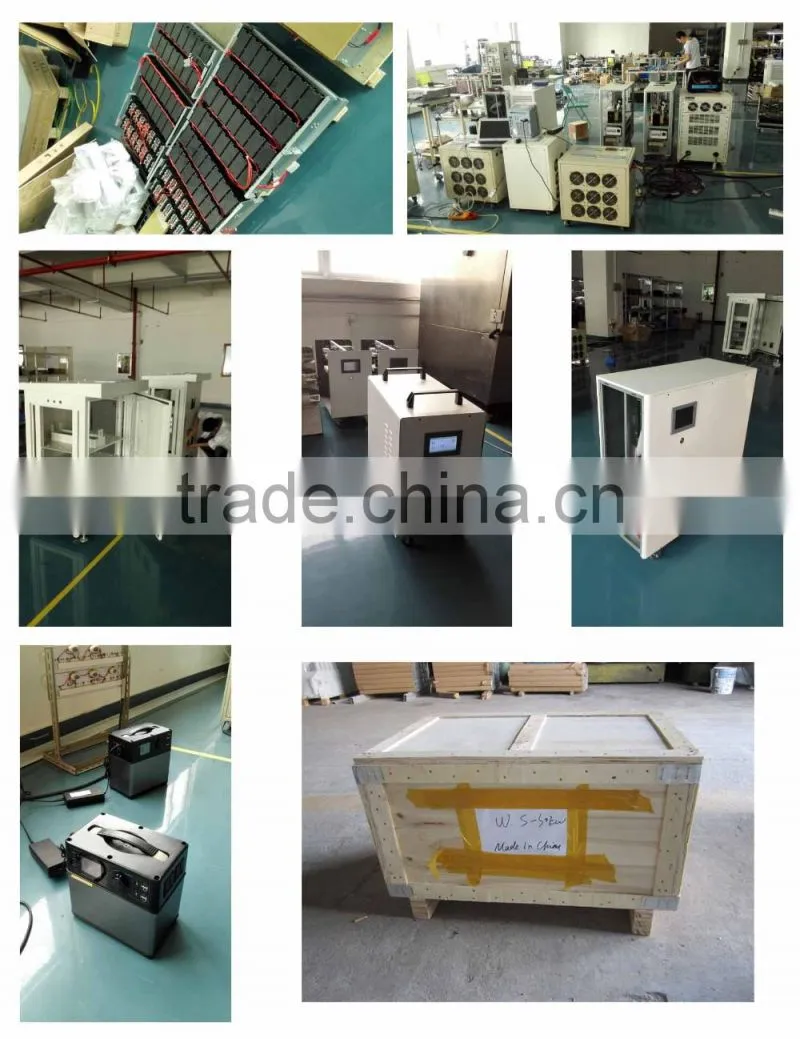

Product pictures

 6.5KWH/8.0KWH mobile home solar storage system

Packaging & Shipping

One set in one carton

Net weight: 135Kg per set

Gross weight: 160Kg per set

 6.5KWH/8.0KWH mobile home solar storage system

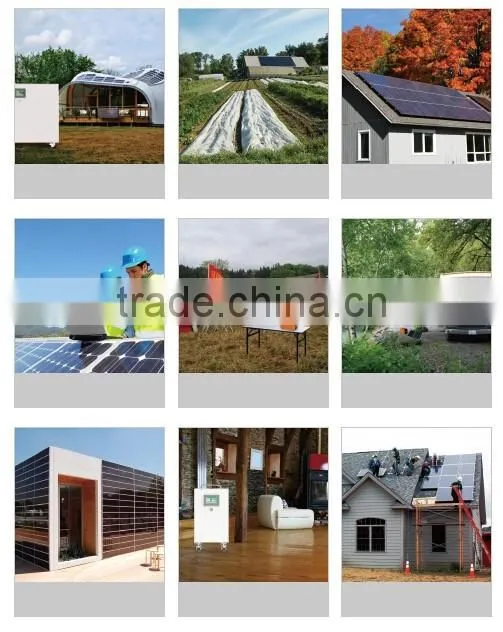

Engineering Case

6.5KWH/8.0KWH mobile home solar storage system



Certifications&paten

 6.5KWH/8.0KWH mobile home solar storage system
