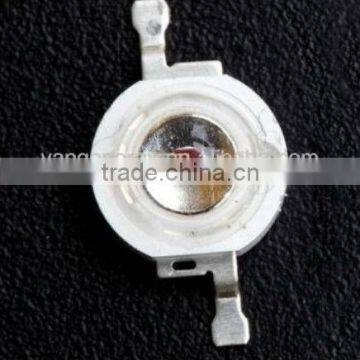

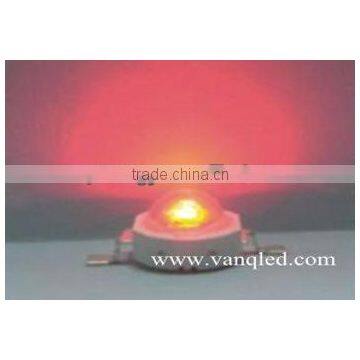

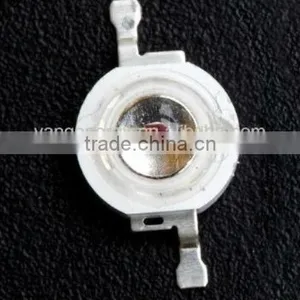

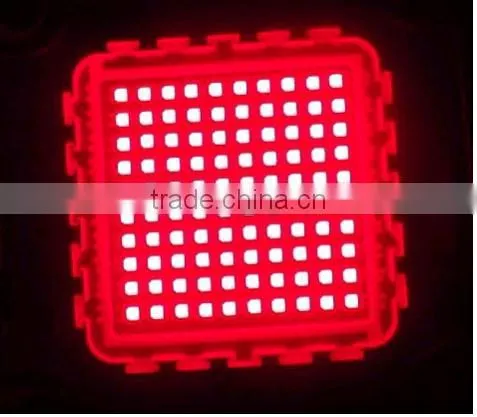

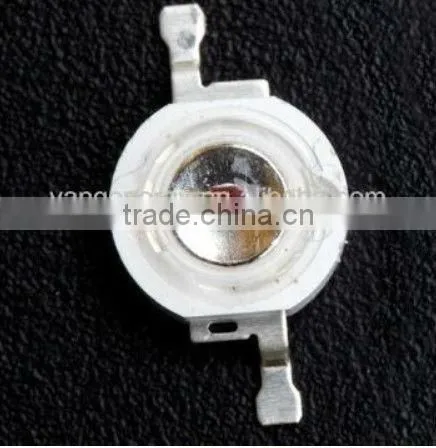

Light emitting diode led chip led red led 660nm 1w 100w

Name: Light emitting diode led chip led red led 660nm 1w 100w
Brand: Vanq
Availability: InStock

FOB Price

USD $0.3 - $1 / Piece

50 Pieces(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	VQ-P001R	Chip Material	AlGaInP
Emitting Color	Red	Luminous Intensity	8300~11000mcd
Luminous Flux(lm)	60	Optical Attenuation(%)	2
Power	Other, 1w	Power Dissipation	10
Color Rendering Index(Ra)	60	Operating Temperature(℃)	-20, 50
Storage Temperature(℃)	-30, 80	Place of Origin	Guangdong, China
Brand Name	Vanq	Certification	CE

Product Description

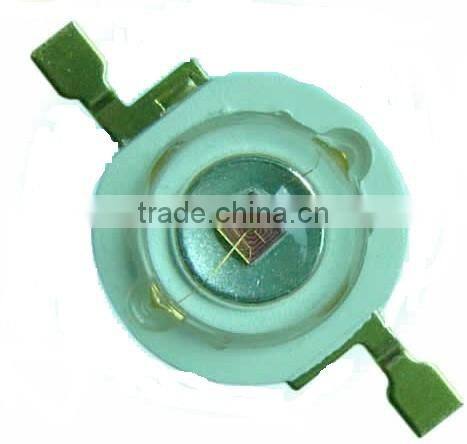

1.Red 660nm chip,use for build led grow light ,DIY led grow light .

2. Most cost-effective,suitable for plant grow root , flowering and fruit .

3.Energy saving ,healthy growing .very good heat dissipation. environmental protection no harmful substances. low power consumption,&super brightness, longer lifespan.

Item Model	VQ-P001R	Power	1W/3W

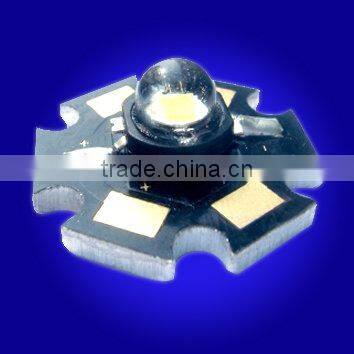

PCB	acceptable	Voltage	2-2.4V
Wavelength	655-665nm	Chip QTY	1pc
Drive current	0.35/0.7A	Beam angle	/90120 degree

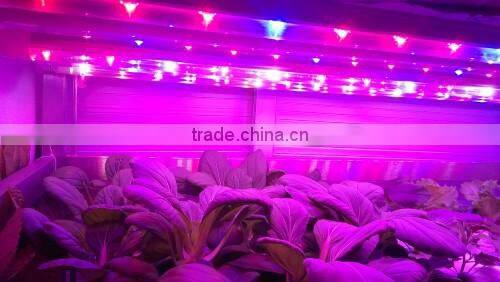

Build led grow tube T8 20w.Details click picture

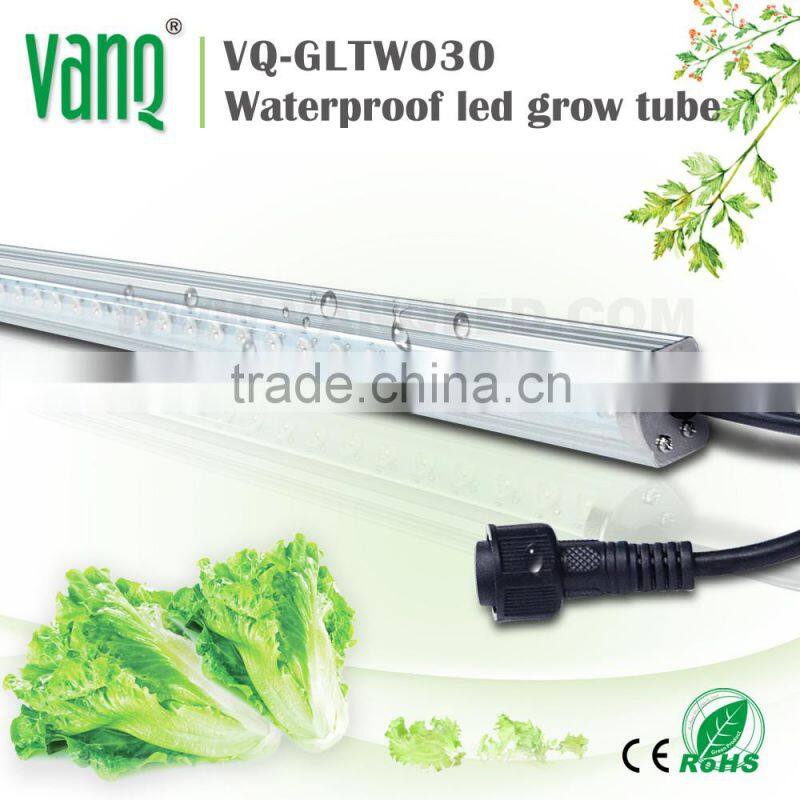

Bulid waterproof grow light 30w.Details click picture

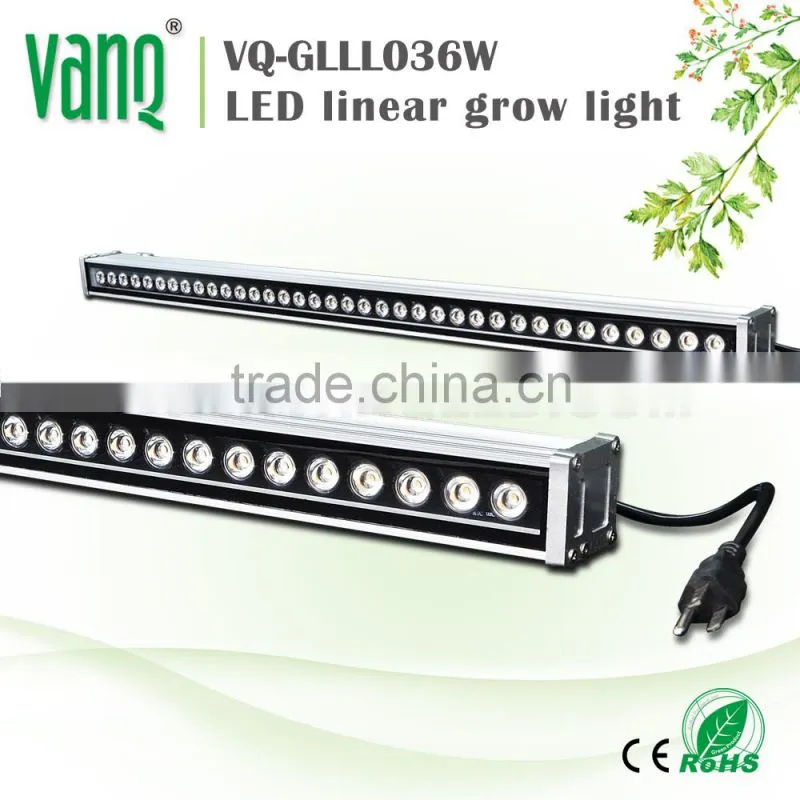

Build waterproof grow bar 36w.Details click picture

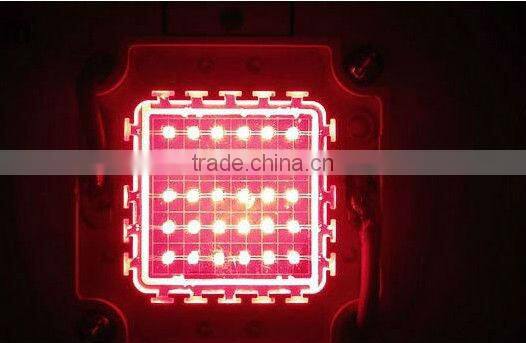

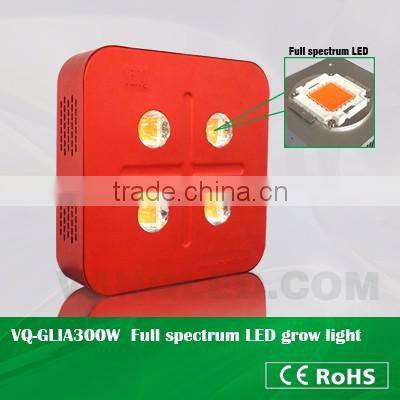

Build high power grow light.Details click picture

UV LED 1-500w Details click picture

Grow led 1-500w

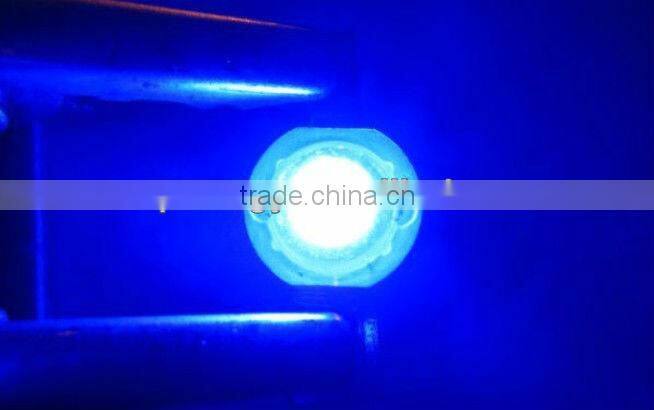

Blue led 1-500w

Our Company

VANQ is an On-site Corporation,R&D and Manufacturing,Sales&Service Integration with A complete industrial Chain.

1.Led chips are genuine,originally imported BridgeLux in the USA and Epileds from Taiwan.
2.We utilize Phosphor Intematix from the USA and Grand from Taiwan.
3.We use red copper led holder,with good heat management performance.
4.Gold Thread are original Konarka with 1.24mil and high gold purity 99.999%

Certifications

Packing & Delivery

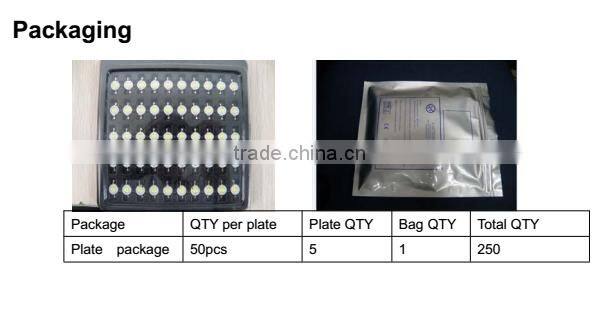

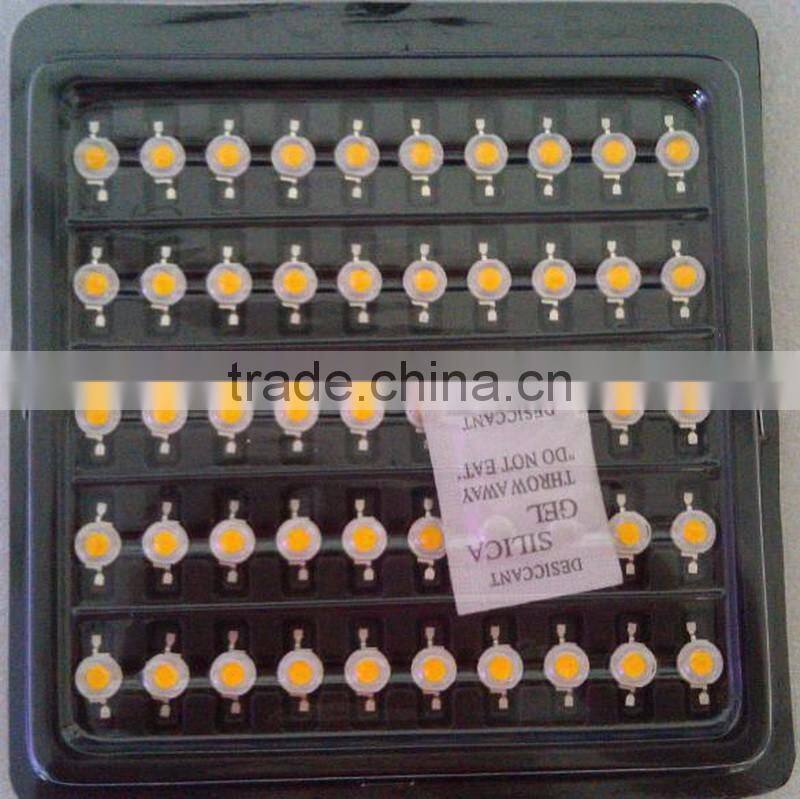

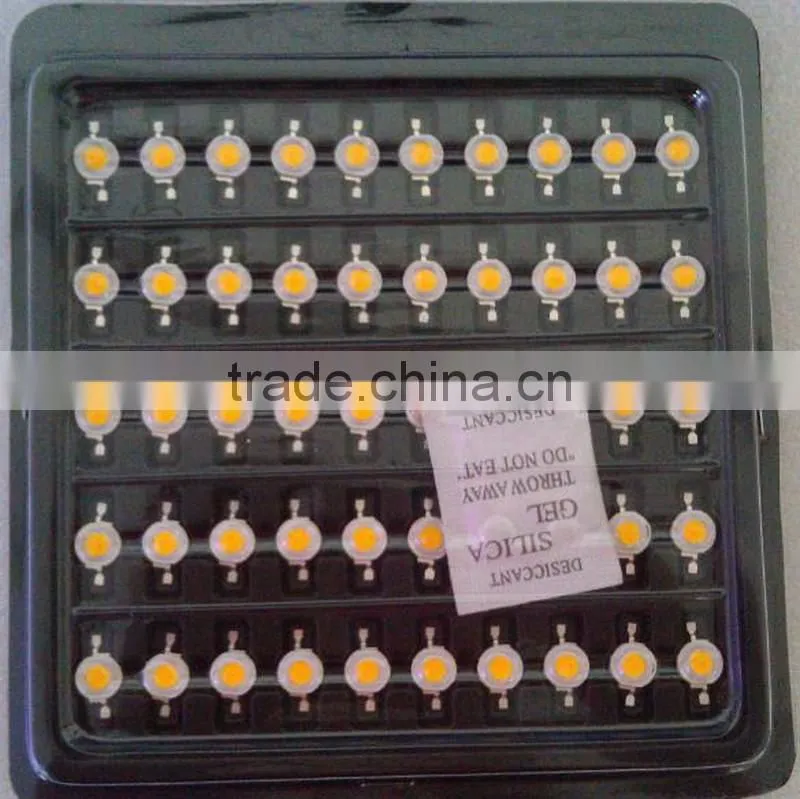

Packing

1.Before opening the package, the LED should be kept under the condition ≤30℃/90%RH. After opening the package, the led should be stored under the condition ≤30℃/70%RH.
2.The LED should be used within a year. And after opening the package, the led should be used within 168 hours(7 days).
3.If the desiccant is faded or the led have exceeded the storage time, re-baking is required under the condition: 60+-6℃/ 24hrs.
4.The surface of LED is prone to attach dust so the relevant steps should be taken to keep the emitter free of dust.

Delivery

5-7 workdays after payment

FAQ

Q: Which plants the growth is suitable the led aquarium light source?

A: The Aquarium LED chip,multi color ,apply to underwater plant growth ,especially
coral,reef,marine.etc ,also could be used for landscape lamp.

Advice for contacting us:

SHENZHEN VANQ TECHNOLOGY CO.,LTD
Contact Person:Amy Wu
E-mail:vanqled8(@)
TradeManager: cn1001228571
Skype:vanqled8
Tel:0086 13510252162
Wechat&QQ:2229874040
