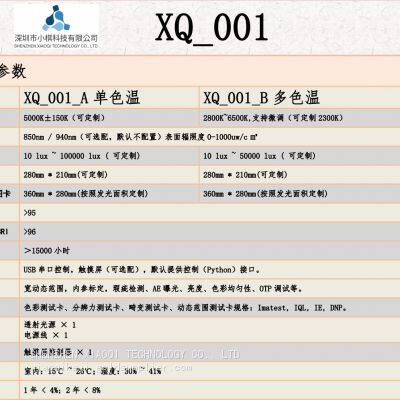

Product parameters Model: XQ_001_A single color temperature and XQ_001_B multi-color temperature Color temperature illumination: 5000K±150K (customizable) 2800K~6500K, support fine-tuning (customizable 2300K) Infrared band: 850nm / 940nm (optional, not configured by default) Surface irradiance 0-1000uw/c ㎡ Illuminance range: 10 lux ~ 100000 lux (A) 10 lux ~ 50000 lux (B) Luminous area: 280mm * 210mm Supported maximum image card: 360mm * 280mm (customized according to the luminous area) Uniformity: >95 Color rendering index CRI: >96 Lamp life: ＞15000 hours Control method: USB Serial port control, touch screen (optional), control (Python) interface is provided by default.Test range: wide dynamic range, internal reference calibration, defect detection, AE exposure, brightness, color uniformity, OTP debugging, etc. Application areas: color test chart, resolution test chart, distortion test chart, dynamic range test chart Specifications: Imatest, IQL, IE, DNP.Equipment components: transmitted light source × 1, power cord × 1, Optional accessories: touch screen controller × 1 Working environment: Indoor: 15℃ ~ 26℃; humidity: 30% ~ 41% Light attenuation: 1 year
Send Inquiry to This Supplier
