Shenzhen Factory Price 660nm Red Led Light,led Cob Deep Red 10w 20w 50w 100w

Shenzhen Factory Price 660nm Red Led Light,led Cob Deep Red 10w 20w 50w 100w thumbnail-1
Shenzhen Factory Price 660nm Red Led Light,led Cob Deep Red 10w 20w 50w 100w thumbnail-2
Shenzhen Factory Price 660nm Red Led Light,led Cob Deep Red 10w 20w 50w 100w photo-1
Shenzhen Factory Price 660nm Red Led Light,led Cob Deep Red 10w 20w 50w 100w photo-2
US$ 20 - 39 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Model Number:
VQ-G050IR850
Chip Material:
AlGaInP
Emitting Color:
Other, infrared
Contact Supplier Request Quote Chat Now
Shenzhen Starvanq Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number VQ-G050IR850
Chip Material AlGaInP
Emitting Color Other, infrared
Luminous Intensity 80-100lm/w
Luminous Flux(lm) 2700-3000lm
Optical Attenuation(%) 0.02
Power Other, 100W
Power Dissipation 10
Color Rendering Index(Ra) 56
Color Temperature 660nm
Operating Temperature(℃) -20, 50
Storage Temperature(℃) -30, 80
Place of Origin Guangdong, China
Brand Name Vanq
Certification CE

Shenzhen factory price 660nm red led light,led cob deep red 10w 20w 50w 100w

Product Description

1.Exact 660nm wavelength.

2.1W/3W/10W/20W/50W/100W/150W .etc 660 nm High power LED chip are avaliable.

3.Build led grow light , build aqurium led light  ect.







High brightness ir led
Item Model VQ-G001R660 VQ-G020660 VQ-G030660 VQ-G050660 VQ-G100660
Dimension 14.5*14.5.2.4mm 56*40*4.3mm 56*40*4.3mm 56*40*4.3mm 56*40*4.3mm
Power 1/3W 20W 30W 50W 100W
Voltage 2-2.4V 20-24V 20-24V 20-24V 20-24V
Wavelength 655-665nm 655-665nm 655-665nm 655-665nm 655-665nm
Chip QTY 1PCS 20PCS 30PCS 50PCS 100PCS
Drive current 0.35A/0.7A 0.7A 1.05A 1.75A 3.5A
Working temperature -20~50℃ -20~50℃ -20~50℃ -20~50℃ -20~50℃
Radiation angle 120° 120° 120° 120° 120°
Plate package 250pcs/Bag 16pcs/Bag 16pcs/Bag 16pcs/Bag 16pcs/Bag



 Product show

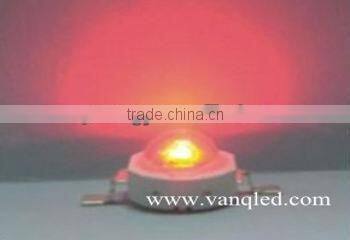

1W



Shenzhen factory price 660nm red led light,led cob deep red 10w 20w 50w 100wShenzhen factory price 660nm red led light,led cob deep red 10w 20w 50w 100w



10W

Shenzhen factory price 660nm red led light,led cob deep red 10w 20w 50w 100w

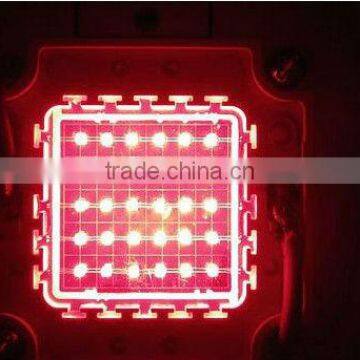

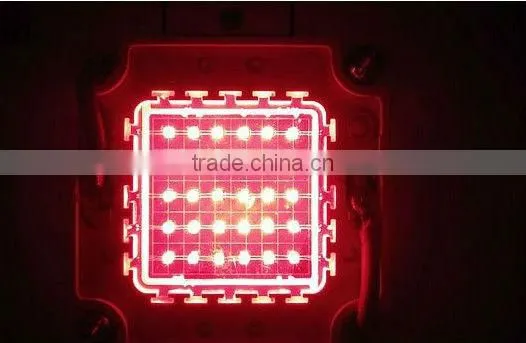

30W

Shenzhen factory price 660nm red led light,led cob deep red 10w 20w 50w 100w



50W

Shenzhen factory price 660nm red led light,led cob deep red 10w 20w 50w 100w

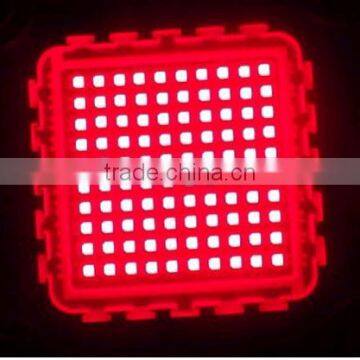

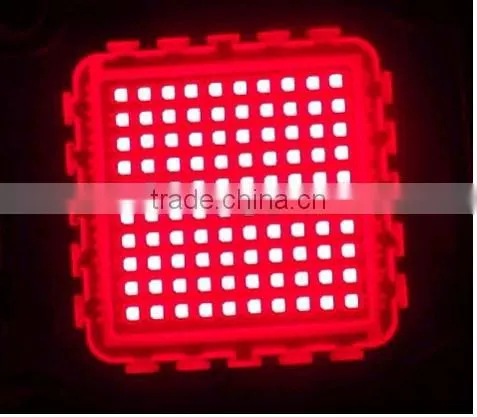

100W



Shenzhen factory price 660nm red led light,led cob deep red 10w 20w 50w 100w





Application Notes:

Storage

  1. Before opening the package, the LED should be kept under the condition ≤30℃/90%RH. After opening the package, the LED should be stored under the condition ≤30℃/70%RH.
  2. The LED should be used within a year. And after opening the package, the led should be used within 168 hours(7 days).
  3. If the desiccant is faded or the led have exceeded the storage time, re-baking is required under the condition: 60+-6℃/ 24hrs.
  4. The surface of LED is prone to attach dust so the relevant steps should be taken to keep the emitter free of dust.

Handling

Handle the component along the side surfaces by using forceps of appropriate tools. The forceps or other appropriate tools should not put any pressure on the lens, it’s also strictly forbidden to poke and press the lens.



Electrical

  1. The LED can not be drove reversely.
  2. It’s necessary to have the measures to limit the current otherwise slight voltage shift may cause enormous current change and results in the failure of LED.
  3. It is recommended that the drive current should be lower when the light output is enough for applying. It would be helpful to improve the product’s reliability.

Antistatic

The LED are electrostatic sensitive devices, so antistatic steps should be taken during the processing.



Packaging & Shipping

Packaging





Shenzhen factory price 660nm red led light,led cob deep red 10w 20w 50w 100w



Shipping

Shenzhen factory price 660nm red led light,led cob deep red 10w 20w 50w 100w









Our Services



  1. Reply your inquiry in 24 working hours.
  2. Customized design is available, OEM and ODM are welcomed.
  3. Delivery the goods to our customer all over the world with speed and precision.
  4. Offer customer the lowest price with high quality LED grow light.
  5. We offer two years warranty for all VANQ products from the date of your purchasing.

Company Information

VANQ is an On-site Corporation,R&D and Manufacturing,Sales&Service Integration with A complete industrial Chain.

1.Led chips are genuine,originally imported BridgeLux in the USA and Epileds from Taiwan.

2.We utilize Phosphor Intematix from the USA and Grand from Taiwan.

3.We use red copper led holder,with good heat management performance.

4.Gold Thread are original Konarka with 1.24mil and high gold purity 99.999%
