Shenzhen 10w-100w light source,UV led chip
Feature:
1. Exact 365nm wavelength.
2. UV leds have short wavelengths, applicable to subtle sensor features.

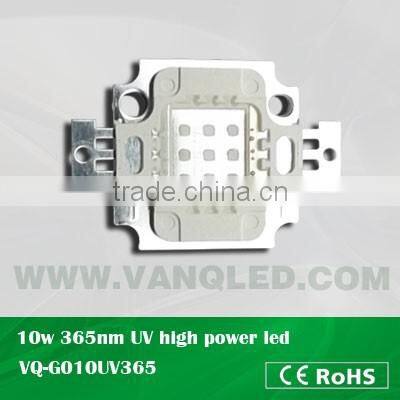

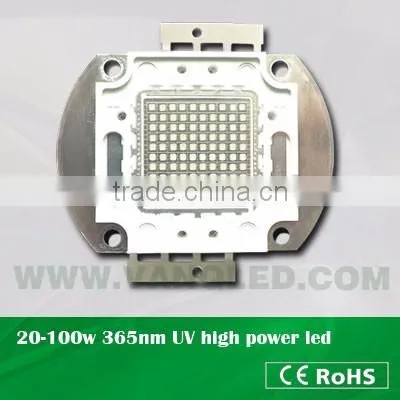

3. 3W/10W/20W/50W/100W/200W/300W/500Watts 365nm High power LED chip are avaliable.
| Parameter: | |
| Item Model | VQ-G100UV365 |
| Dimension | 56*40*4.3mm |
| Power | 100W |
| Voltage | 32-36V |
| Wavelength | 365nm-370nm |
| Chip QTY | 100PCS |
| Drive current | 3.5A |
| Working temperature | subzero20~50℃ |
| Radiation angle | 120° |
| Plate package | 18pcs/Bag |

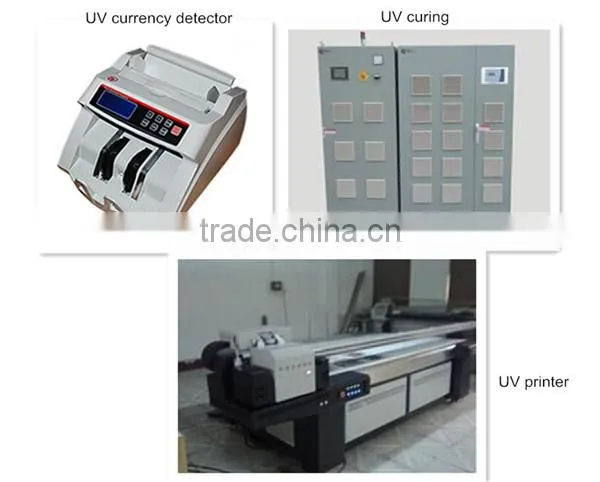

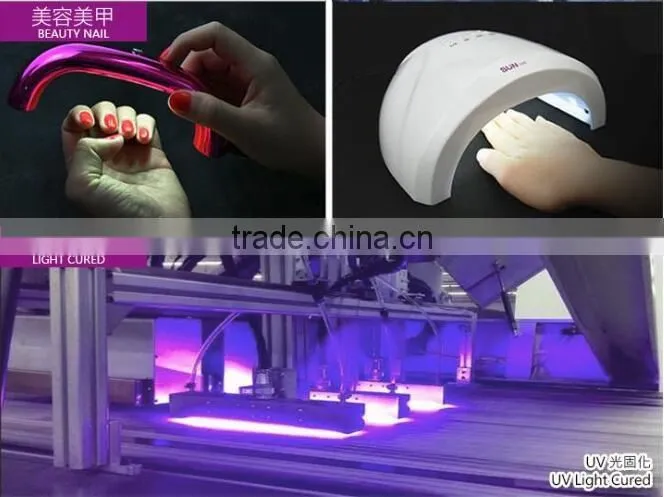

Application:
UV leds have short wavelengths, applicable to small sensing features, has been applied in the identification of money. UV LED or ultraviolet point light curing system, at the same time carry mercury lamp and LED lamp. Mercury lamp used in epoxy resin, LED lights for hardening of acrylic resin.

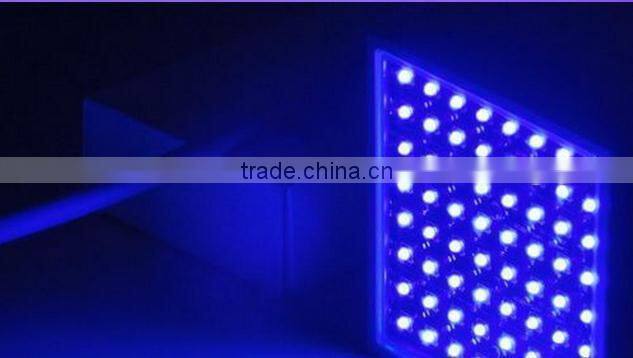

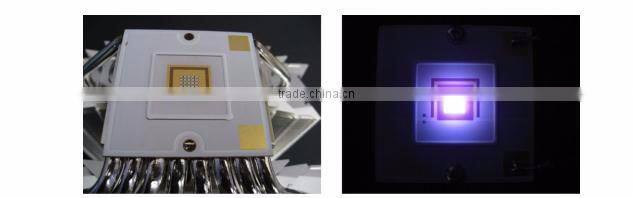

Product show
Application Notes:
Storage
- Before opening the package, the LED should be kept under the condition ≤30℃/90%RH. After opening the package, the LED should be stored under the condition ≤30℃/70%RH.
- The LED should be used within a year. And after opening the package, the led should be used within 168 hours(7 days).
- If the desiccant is faded or the led have exceeded the storage time, re-baking is required under the condition: 60+-6℃/ 24hrs.
- The surface of LED is prone to attach dust so the relevant steps should be taken to keep the emitter free of dust.
Handling
Handle the component along the side surfaces by using forceps of appropriate tools. The forceps or other appropriate tools should not put any pressure on the lens, it’s also strictly forbidden to poke and press the lens.
Electrical
- The LED can not be drove reversely.
- It’s necessary to have the measures to limit the current otherwise slight voltage shift may cause enormous current change and results in the failure of LED.
- It is recommended that the drive current should be lower when the light output is enough for applying. It would be helpful to improve the product’s reliability.
Antistatic
The LED are electrostatic sensitive devices, so antistatic steps should be taken during the processing.

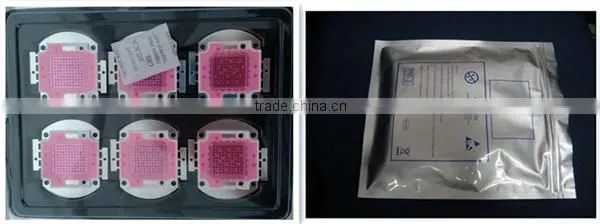

Packaging
Shipping
- Reply your inquiry in 24 working hours.
- Customized design is available, OEM and ODM are welcomed.
- Delivery the goods to our customer all over the world with speed and precision.
- Offer customer the lowest price with high quality LED grow light.
- We offer two years warranty for all VANQ products from the date of your purchasing.
Q: What place is mainly used in the UV light ?
A: UV light is mainly used for banknote identification system, resin & adhesive curing machine, UV printer, etc.
