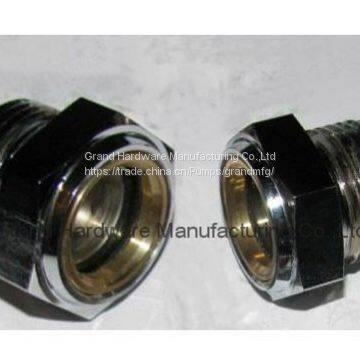

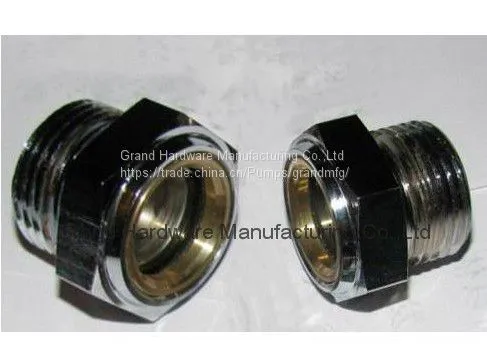

Help CenterMNPT Thread 3/4 1 Inch Pump Carbon Steel Liquid Oil Sight Glass Plug Oil Level Gauge
Related Products
-
Male NPT BSP G Thread1/8\", 3/8\",1/4\",1/2\"3/4\" Brass Tube Oil Level Gauge With Quartz Glass TubeUS$ 0.68 - 10MOQ: 50 Pieces -
NPT / BSP G Thread / Metric Thread Brass Oil Level Sight GlassUS$ 0.68 - 10MOQ: 500 Pieces
-
Male NPT 1 1/4 Inch 1 1/2 Inch Brass Oil Sight Glass Coolant Tank Sight GlassUS$ 0.68 - 10MOQ: 1000 Pieces
-
Male NPT Thread 1/2\" Stainless Steel 304 Oil Level Sight GlassesUS$ 0.68 - 10MOQ: 500 Pieces
-
Aluninum Blower Oil Level Sight Glasses OEM and ODM Service G 3/4US$ 0.68 - 4MOQ: 500 Pieces
Steel Oil level Sight glass, oil sight gauge, oil sight gage, oil level indicator,
liquid sight glass, sight window, view ports, male thread sight glasses, domed sight glass plug
Material
Body: Aluminum, Steel, PMMA, Plastic and Brass
O-Ring: Viton and NBR
Glass: Natural Glass
Glass Thickness: 2mm to 5 mm
Glass Type: General Glass, Tempered Glass and Borosilicate Glass
Resist Temperature Range: -30 Cent degrees to 120 Cent degrees.
Pressure Range: 5-10 Bar or 0.5MPa to 1 MPa.
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size:M10X1, M16X1.5,M20X1.5, ,M27X1.5,M33X1.5,
G 3/8,G 1/2,G 3/4,G 1 NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.
| item | steel sight glasses |
| material | steel |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
ANY SPECIAL DEMANDS JUST CONTACT GRAND-MFG TEAM OR VISIT OUR GRAND-MFG WEB.
