Help Center1.1KV XLPE Cable
Related Products
Specifications

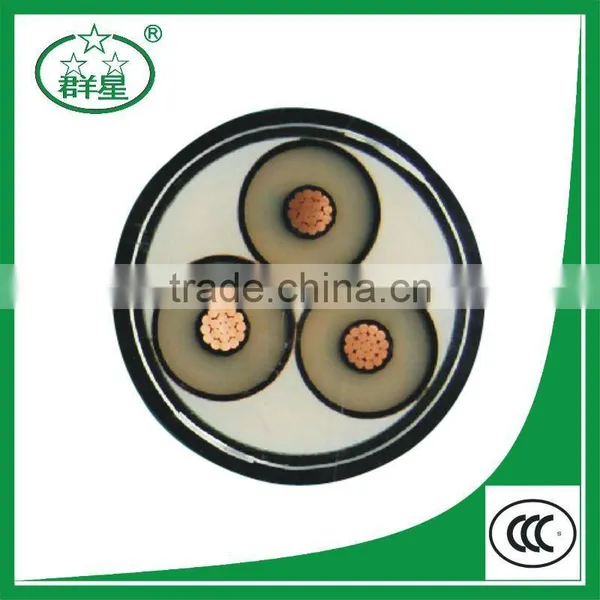

1.1KV XLPE cable1,Conductor: ALuminum,Copper
2,Insulation: XLPE
3,Jacket:PVC
4,Armored:Option
1.1KV XLPE cable
Application:
Power cables for power networks, underground, outdoors and in cable ducting.
Standards:
GB/T 12706,GB/T11017,GB/T 18380
Conductor:
Copper & Aluminum
Conductor screen:
Semi-conducting Layer
Insulation:
XLPE
Insulation Screen:
Semi-conducting Layer
Metallic Screen:
Individual and overall copper tape screen
Bedding:
PVC
Armoring:
Single Core: Aluminum Wire Armored (AWA)
Multicourse: Steel Wire Armored (SWA)
Sheath:
PVC
Color:
Red or Black
Voltage Rating:
6350/11000V
Temperature Rating:
0 to +70°C
Minimum Bending Radius:
Single Core: 15 x overall diameter
Three Core: 12 x overall diameter
(Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)
>Not drop restriction on laying
>Stable & process performance
>Strong ability to adapt to the environment
>Short circuit (the longest duration of not more than 5s)
>The highest temperature of cable does not exceed 250 °C
>The maximum normal operating temperature of conductor 70°C
>Good flexibility, easy maintenance, installation, simple structure
>AC rated voltage 0.6/1kv,50 HZ for the fixed installation , transmission and distribution lines.
In cable laying, to ensure sufficient mechanical tension in the case of not drop restrictions, but the single core cable can’t be laid in the iron pipe, it’s also not permissible for using steel instrument around and fix the cable .During the cable laying ,its temperature is not less than zero, 11kV XLPE PVC Cable
Cable Type
No. of Cores x Nominal Cross Sectional Area# x mm²
Nominal Diameter Under Armour
Nominal Diameter Over Armour
Nominal Diameter Overall
Nominal Weight
Continuous Current Rating in Ground – Trefoil
Continuous Current Rating in Ground – Flat
mm
mm
mm
kg/Km
Amps
Amps
Copper
1 x 50
21.7
24.9
28.5
1200
220
230
Copper
1 x 70
23
26.2
30
1500
270
280
Copper
1 x 95
24.7
27.9
31.7
1600
320
335
Copper
1 x 120
26.7
29.9
33.9
2100
360
380
Copper
1 x 150
27.5
31.5
35.7
2500
410
430
Copper
1 x 185
29.3
33.3
37.5
2900
455
485
Copper
1 x 240
31.6
35.6
40
3600
520
560
Copper
1 x 300
34.6
38.6
43
4300
580
640
Copper
1 x 400
37
41
45.8
5200
650
730
Copper
1 x 500
40.5
45.5
50.5
6500
710
830
Copper
1 x 630
44.6
49.6
54.8
8000
760
940
Copper
1 x 800
48.8
53.8
59.2
9850
810
1060
Copper
1 x 1000
53.5
58.5
64.3
12100
860
1170
Copper
3 x 25
39
44
48.8
4300
140
140
Copper
3 x 35
41.6
46.6
51.6
4700
170
170
Copper
3 x 50
44.4
49.4
54.6
5300
210
210
Copper
3 x 70
48.1
53.1
58.5
6300
250
250
Copper
3 x 95
52
57
62.6
7300
300
300
Copper
3 x 120
55.6
60.6
66.6
8400
340
340
Copper
3 x 150
58.6
63.6
69.8
9600
380
380
Copper
3 x 185
62.7
67.7
74.1
11000
430
430
Copper
3 x 240
68.1
74.4
81.2
14000
500
500
Copper
3 x 300
73.5
79.8
87
16600
540
540
Copper
3 x 400
81.1
87.4
95
19500
600
600
