35mm2 copper electrical cable1,Conductor: Copper/Aluminum
2,Insulation: PVC
3,Jacket:PVC
4,Armored:Option

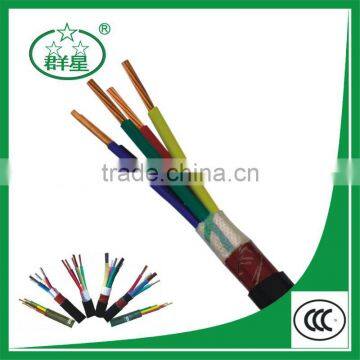

35mm2 copper electrical cable
Application
These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant...).
Construction
Conductor
Solid Aluminum or Copper conductor, round stranded or shaped
Insulation
PVC(Polyvinyl Chloride)
Colour Code
1 Core : Brown
2 Cores: Brown or Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey
5 Cores: Green-yellow, Blue, Brown, Black, Grey
Above 5 Cores: White Cores with black numbers
Filler(optional)
PVC or Polypropylene yarn
Binder Tape(optional)
Polyester (Mylar) tape
Inner Sheath/ Bedding
PVC (Polyvinyl Chloride)
Armour
Single Core: AWA (Aluminum Wire Armour)
Multi Core: SWA (Steel Wire or Tape Armour)
Voltage rating
600/1000V
Temperature rating
-20°C to +60°C
Bending radius
Single core: 10 x overall diameter
Multicores: 8 x overall diameter
