Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Copper Insulation

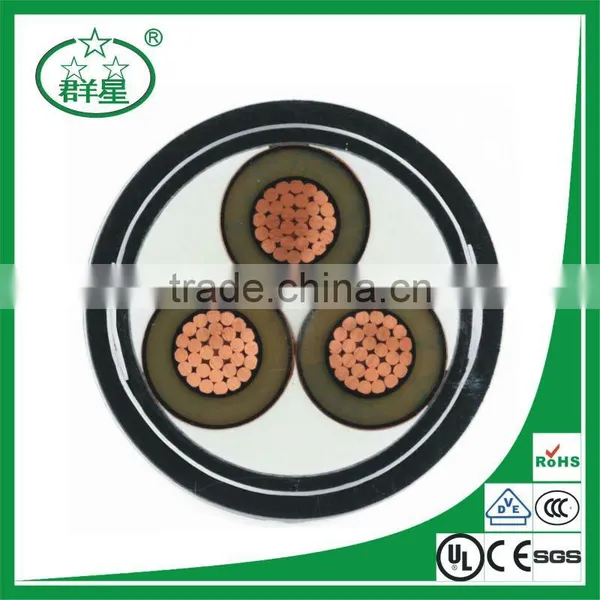

Copper Insulation

Name: Copper Insulation
Brand: Qunxing
SKU: 141763496
Availability: InStock

US$ 0.1 - 20 MOQ: 1 Kilometer

Key Specifications

Get Latest Price

Place of Origin:

Guangxi, China

Brand Name:

Qunxing

Model Number:

YJV/YJLV

Contact Supplier Request Quote Chat Now

Guangxi Qunxing Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangxi, China

Brand Name Qunxing

Model Number YJV/YJLV

Insulation Material PVC

Type High Voltage

Application Underground

Conductor Material Copper

Jacket PVC

Specifications

copper insulation
2. Conductor: ALuminum,Copper
3.Insulation: XLPE
4.Jacket:PVC/PE
5.Armored:Option

copper insulation

1,Conductor: copper (aluminum) stranded

2,Insulation: XLPE

3,Sheathed: PVC (PE)

4,Armored: steel tape/ steel wire /aluminum tape/ aluminum tape

5,Standard:

Products are produced and provided according to GB/T 12706.

1,Not drop restriction on laying

2,Stable & process performance

3,Strong ability to adapt to the environment

4,Short circuit (the longest duration of not more than 5s)

5,The highest temperature of cable does not exceed 250 °C

6,The maximum normal operating temperature of conductor 70°C

7,Good flexibility, easy maintenance, installation, simple structure

8,AC rated voltage 0.6/1kv,50 HZ for the fixed installation , transmission and distribution lines.

In cable laying, to ensure sufficient mechanical tension in the case of not drop restrictions, but the single core cable can’t be laid in the iron pipe, it’s also not permissible for using steel instrument around and fix the cable .During the cable laying ,its temperature is not less than zero, when the cable temperature is below zero, the appropriate method should be used cable heating to above zero.

Product Types:

1,copper(aluminum)conductor XLPE insulation PVC sheathed power cable (YJV,YJLV)
2,copper(aluminum)conductor XLPE insulation PE sheathed power cable (YJY,YJLY)
3,copper(aluminum)conductor XLPE insulation steel tape armored PVC s sheathed power cable (YJV22,YJLV22)
4,copper(aluminum)conductor XLPE insulation steel tape armored PE s sheathed power cable (YJY22,YJLY22)
5,copper(aluminum)conductor XLPE insulation thin steel-wire armored PVC sheathed power cable (YJV32,YJLV32)
6,copper(aluminum)conductor XLPE insulation thin steel-wire armored PE sheathed power cable (YJY32,YJLY32)
7,copper(aluminum)conductor XLPE insulation Thick steel-wire armored PVC sheathed power cable (YJV42,YJLV42)
8,copper(aluminum)conductor XLPE insulation Thick steel-wire armored PE sheathed power cable (YJY42,YJLY42)

No.of Core ×Cross-sectional Area (mm²)	Approx.Outer Diameter (mm)			Approx.Weight kg/km
No.of Core ×Cross-sectional Area (mm²)	Non-armoured	Steel tape armoured	Steel wire armoured	YJV	YJLV	YJV22	YJLV22	YJV32	YJLV32
4×4	13	16	18	261	164	418	322	657	561
4×6	14	17	19	345	207	518	381	778	651
4×10	17	20	22	535	290	744	499	1064	819
4×16	20	23	25	783	390	1020	627	1532	1139
4×25	23	26	28	1167	550	1439	822	2029	1412
4×35	26	29	31	1547	694	1851	998	2502	1648
4×50	27	30	33	2090	912	2420	1241	3337	2158
4×70	31	35	37	2901	1214	3596	1909	4300	2613
4×95	35	40	42	3882	1570	4694	2382	5489	3177
4×120	39	43	46	4830	1927	5716	2913	7010	4108
4×150	43	48	51	6040	2395	7068	3423	8494	4848
4×185	48	53	56	7502	2961	8645	4104	10169	5628
4×240	54	59	62	9548	3695	10874	5022	12613	6761
4×300	59	65	68	11919	4554	13384	6019	15343	7979
4×400	66	72	77	15530	5859	171219	7548	20235	10564
