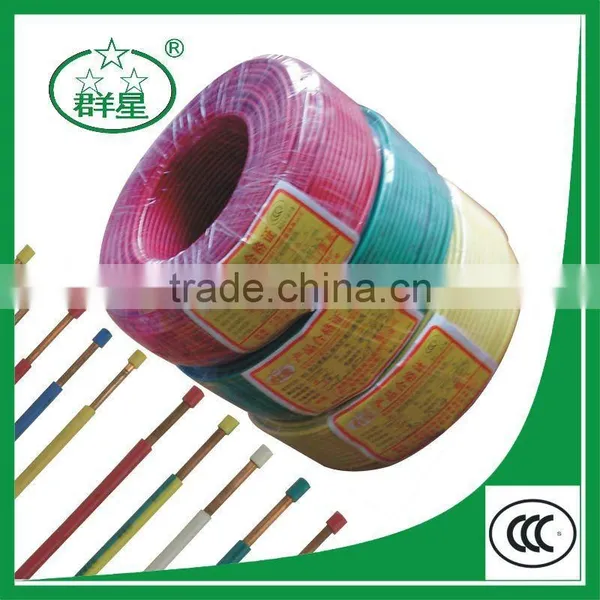

Copper Electrical Wire
US$ 0.01 - 10
MOQ: 1 Kilometer
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
Qunxing
Model Number:
BV,BLV
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangxi, China
Brand Name
Qunxing
Model Number
BV,BLV
Insulation Material
PVC
Type
Low Voltage
Application
Construction
Conductor Material
Copper
Jacket
PVC
Specifications
copper electrical wire1.Conductor: ALuminum,Copper
2.Insulation: PVC
3.U0/U: 450/750V
4.CCC certification
copper electrical wire
1.Specification
1) Rate voltage U0/U: 450/750V,300V/500V,300V/300V.
2) Temperature Range:70-90°C
3) Conductor: Copper or Aluminum
4) Insulation: PVC
5) Colours:Black,Brown,Red,Orange,Yellow,Green,Blue,Purple,Gray,White,Transparent,Yellow/green etc
2. Characteristic
High/low temperature resistant, anti-acid, anti-oil, antisepsis and moisture
3. Application
Apply to Household appliance, Illumination and Lighting and Headlamp, electric machines, temperature sensor Military series, Metallurgy Chemical series, Motor cars and Ships Electrical Installation.
| Model | Name |
| BV | Copper Core PVC Insulation Wire |
| BLV | Aluminum Core PVC Insulation Wire |
| BVR | Copper Core PVC Insulation Flexible Wire |
| BVV | Copper Core PVC Insulation PVC Sheath Round Wire |
| BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire |
| BLVVB | Aluminum Core PVC Insulation PVC Sheath Flat Wire |
| BV-90 | Copper Core Heat-resistance 105oC PVC Insulation |
Specification Size and Technical Data
| Nominal | Conductor | Nominal | Max overall | Condcutor | Min insulated | Weight | ||
| sectional area | No/Dia. | Insulated thick | Dia. | Resistance at | resistance at | Kg/km | ||
| mm2 | mm | mm | mm | 20 | 70MΩ/km | |||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.01 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.01 | 30.8 | 15 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.007 | 65 | 29 |
| 10 | 7/1.35 | 1 | 7 | 1.83 | 3.08 | 0.0065 | 110 | 52 |
| 16 | 7/1.70 | 1 | 8 | 1.15 | 1.91 | 0.005 | 170 | 70 |
| 25 | 7/2.14 | 1.2 | 10 | 0.727 | 1.2 | 0.005 | 270 | 110 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.004 | 364 | 150 |
| 50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.641 | 0.0045 | 500 | 200 |
| 70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.443 | 0.0035 | 688 | 269 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.32 | 0.0035 | 953 | 360 |
| 120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.253 | 0.0032 | 1168 | 449 |
| 150 | 37/2.25 | 1.8 | 21 | 0.124 | 0.206 | 0.0032 | 1466 | 551 |
| 185 | 37/2.52 | 2 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808 | 668 |
Flexible wire
| Nominal | Conductor | Nominal | Max overall | Condcutor | Min insulated | Weight |
| sectional area | No/Dia. | Insulated thick | Dia. | Resistance at | resistance at | Kg/km |
| mm2 | mm | mm | mm | 20 | 70MΩ/km | |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68 |
| 10 | 49/0.52 | 1 | 7.6 | 1.83 | 0.0072 | 115 |
| 16 | 49/0.64 | 1 | 8.8 | 1.15 | 0.0062 | 176 |
| 25 | 98/0.58 | 1.2 | 11 | 0.727 | 0.0058 | 272 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714 |
| 95 | 259/0.68 | 1 | 19.5 | 0.139 | 0.0035 | 965 |
| 120 | 259/0.76 | 1.8 | 22 | 0.153 | 0.0032 | 1210 |
| 150 | 259/0.85 | 1.8 | 25 | 0.124 | 0.0032 | 1510 |
