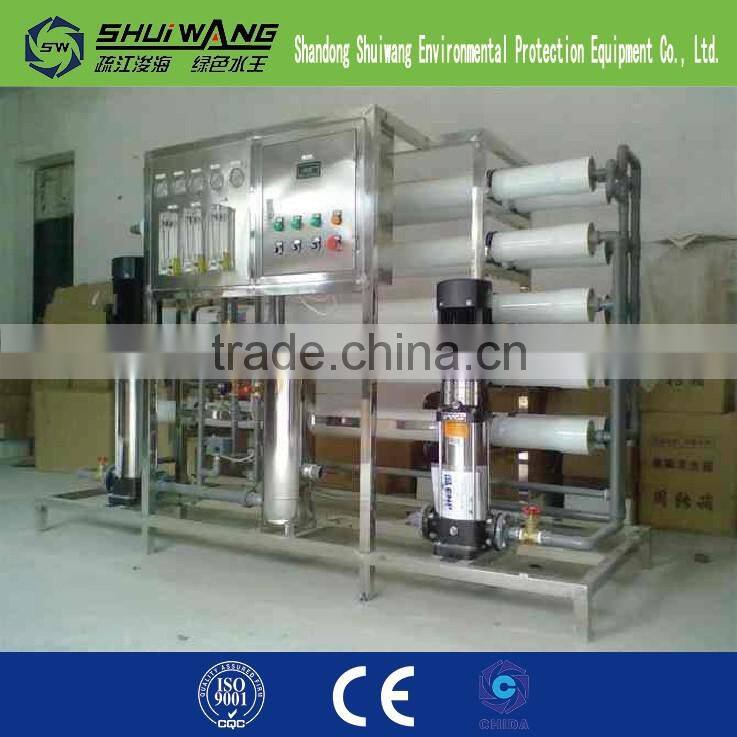

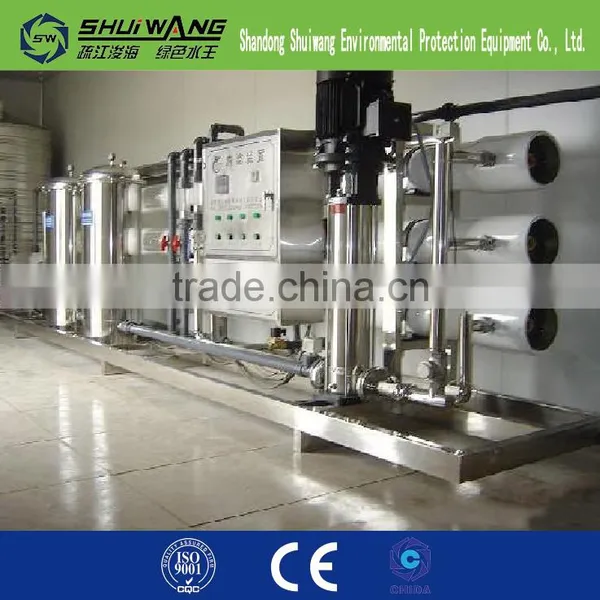

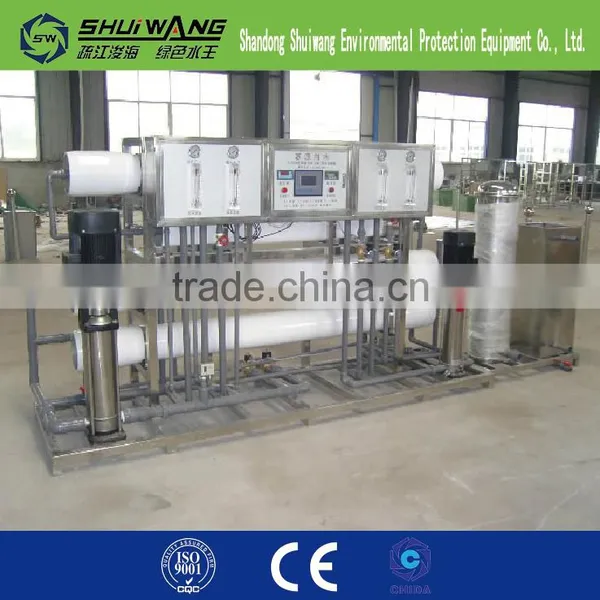

4 ton single stage drinking water equipment
product description:
work process
raw water tank→raw water pump→medium filter→quartz sand filter→active carbon filter→high precision filter→high pressure pump→RO system→water tank
4 ton drinking water configuration list :
NO. |
Product name |
specification |
material |
numbers |
supplier |
|
Pre-treatment system:filter capacity :6m3/h Remove the granular impurities ,suspend solids,residual chlorine ... |
||||
1 |
Raw water tank |
|
|
|
|
2 |
Raw water pump |
Mode:CMF8-15 Flow:6m3/h Lift:30m Power:1.5kw |
Stainless steel |
1 |
china |
3 |
Medium filter |
||||
|
cylinder |
Φ600*1750mm |
Glass steel |
1 |
china |
Quartz sand |
0.5-2mm |
|
550kg |
china |
|
Automatic valve |
F75A |
|
1 |
china |
|
Water distributor |
4” |
ABS |
1 |
china |
|
Center pipe |
4’’ |
ABS |
1 |
china |
|
4 |
Active carbon filter |
||||
|
cylinder |
Φ600*1750mm |
Glass steel |
1 |
china |
Active carton |
|
|
150kg |
china |
|
Automatic valve |
F75A |
|
1 |
china |
|
Water distributor |
4” |
ABS |
1 |
china |
|
Check valve |
Φ40 |
UPVC |
1 |
|
|
5 |
Scale inhibition dosing box |
||||
|
Dosing pump |
RD-01-07 |
|
1 |
|
Doing box |
40L |
PE |
1 |
|
|
6 |
Precision filter |
||||
|
Cylinder body |
40”5 core |
Stainless steel |
1 |
china |
Fitter elements |
40’’5 micron |
PPF |
4 |
china |
|
Pressure gauge |
0.6mpa |
Stainless steel |
1 |
|
|
|
RO main machine system
|
||||
1 |
Multistage high pressure pump |
Model:CVL10-14 Flow:7m3/h Lift:130m Power:5.5kw |
Stainless steel |
1 |
china |
2 |
Pressure container |
8040-2w |
Glass steel |
2 |
china |
3 |
RO membrane |
8040 |
|
4 |
China |
4 |
Instrument,valve |
||||
|
Pressure gauge |
3Mpa |
Stainless steel |
2 |
china |
Pure water flow meter |
35GPM |
Magnetic glass |
1 |
china |
|
Strong water flow meter |
35GPM |
Magnetic glass |
1 |
china |
|
Washing solenoid valve |
DN25 |
cooper |
1 |
china |
|
Manual adjustment valve |
DN25 |
Copper |
1 |
china |
|
The electric connect gauge |
0.6Mpa |
|
1 |
china |
|
|
High pressure protection switch |
BD-A20 |
|
1 |
|
|
Inlet water conductivity meter |
CM-230 |
|
1 |
china |
|
Pure water conductivity meter |
CM-230 |
|
1 |
china |
|
5 |
Electrical control system |
Automatic control |
|
1 |
|
6 |
Main machine frame |
dimension |
Stainless steel |
1 |
china |
7 |
Pure water tank |
|
|
|
|
8 |
Valve,instrument |
|
UPVC |
1 |
china |
packing and shipping:
our service:
Here we could supply one-package service for every customer, from beginning to consult to whole machines trial running,including staff training.
Customers just need inform what you have in hand & and what you want to get.The rest all we will supply & finish for you.
♦Pre-sale services:Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦Sale services:Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦After-sale services:Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
company information:
FAQ:
Dear sir/madam,before you send inquiry to me,please advanced tell me your raw water conductivity,and how many tons water treatment you need?
