5 Ton Single Stage Water Treatment Process Equipment
- Qingdao
You May Like
-
5 Ton Single Stage Water Purifying Equipment
-
5 Ton Single Stage Pure Water Production Equipment
-
5 Ton Single Stage Magnetic Water Treatment Equipment
-
Quality Assured Ro Machine /water Treatment Plant With Low Price
-
Quality Assured 2 Ton Water Treatment Equipment/ Ro System
-
Quality Assured 1ton Reverse Osmosis Water Treatment Machine
Product Details
| Place of Origin | Shandong, China | Brand Name | shandong shuiwang | |
| Model Number | SW |
Product Description

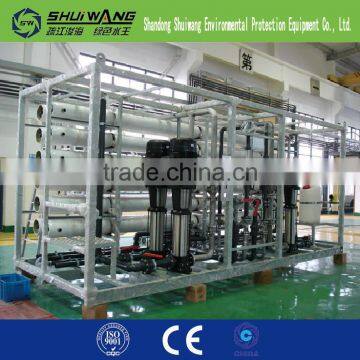

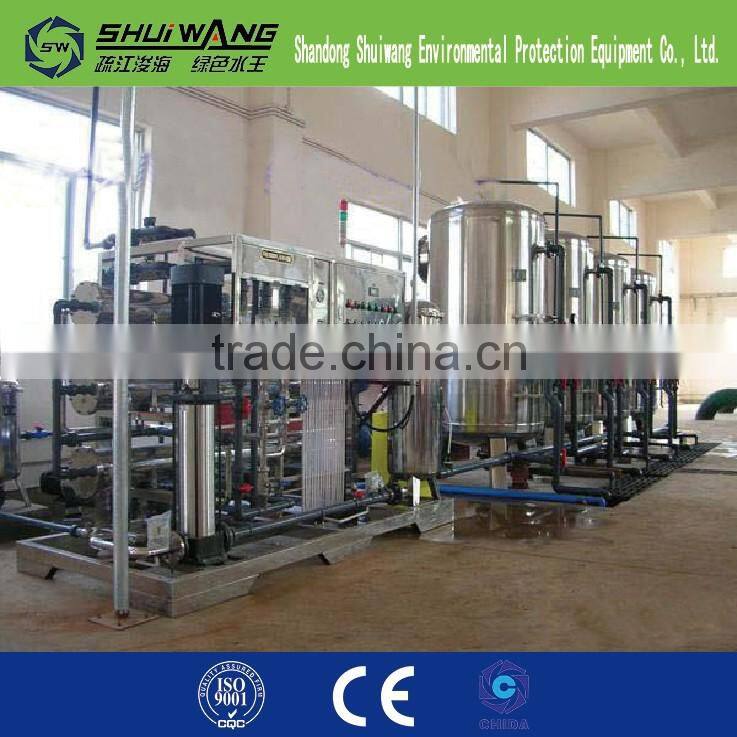

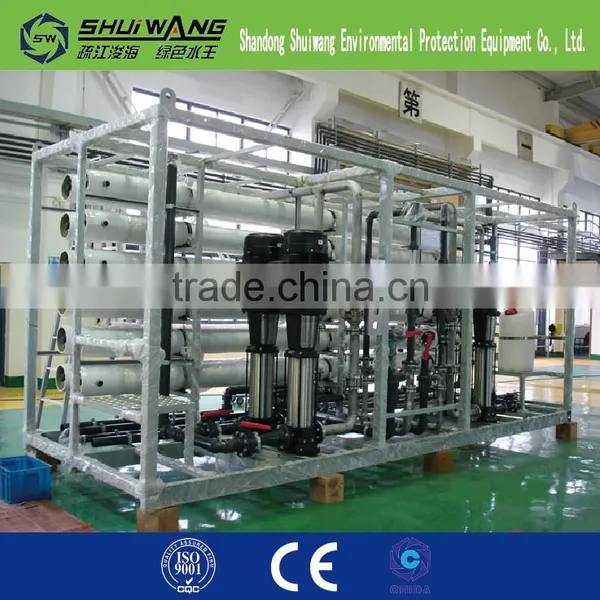

5 ton single stage water treatment process equipment
product description:
work process
raw water tank→raw water pump→medium filter→quartz filter → active carbon filter→high precision filter→high pressure pump→RO system→pure water tank
water treatment equipment configuration and detail information:
NO. | product | specification | material | numbers | supplier |
| Pre-treatment system: filter capacity:8m3/h Can filter medium,suspends medium,residual chlorine | ||||
1 | Raw water tank | Capacity:3m3 Water level control | PE | 1 | China |
2 | Raw water pump | Model:CHL8-40 Flow:8m3/h Lift:35m Power:1.5kw | Stainless steel | 1 | china |
3 | Medium filter | ||||
| cylinder | Φ750*1850mm | Glass steel | 1 | china |
Quartz sand | 0.5-2mm |
| 850kg | china | |
Automatic valve | F75A |
| 1 | china | |
Water distributor | 4’’ | ABS | 1 | china | |
Pressure gauge | 0.6Mpa | Stainless steel | 1 | china | |
4 | Active carbon filter | ||||
| cylinder | Φ750*1850mm | Glass steel | 1 | china |
Active carbon |
|
| 225kg | china | |
Automatic valve | F71A |
| 1 | china | |
Water distributor | 4” | ABS | 1 | china | |
The electric connection pressure gauge | 0.6mpa | Stainless steel | 1 | china | |
5 | Scale inhibitors dosing box | ||||
| Dosing pump | RD-01-07 |
| 1 | china |
Dosing box | 80L | PE | 1 | china | |
6 | Precision filter | ||||
| Cylinder body | 40”5 core | Stainless steel | 1 | China |
Filter elements | 40”5 micron | PPF | 5 |
| |
Pressure gauge | 0.6mpa | Stainless steel | 1 |
| |
Reverse osmosis system | |||||
1 | Multy-stage high pressure pump | Model-CVL10-16
| Stainless steel | 1 | China |
2 | Pressure container | 8040-2w | Glass steel | 3 | China |
3 | RO membrane | BW30-400 |
| 5 | China |
4 | Instrument,valve |
|
|
|
|
| Pressure gauge | 3 MPa | Stainless steel | 2 | China |
Pure water flow meter | 40GPM | Organic glass | 1 | China | |
Strong water flow meter | 35GPM | Organic glass | 1 | China | |
Inlet water electric valve | DN40 | Stainless steel | 1 | The trafigura | |
Washing electric valve | DN32 | Copper material | 1 | The trafigura | |
Manual adjustment valve | DN32 | Copper material | 1 | China | |
High pressure protection switch | BD-A20 |
| 1 |
| |
Inlet water conductivity | CM-230 |
| 1 | China | |
Pure water conductivity | CM-230 |
| 1 | China | |
5 | Electrical control system | Automatic control |
| 1 |
|
6 | Main frame | Dimension 3000*1000*165 | Stainless steel | 1 | China |
7 | Pure water tank | Capacity:5m3
| Stainless steel | 1 | China |
8 | Valve instrument |
| UPVC | 1 | China |
9 | UV sterilizer | 10g/h | Stainless steel |
| |
packing and shipping:
our service:
Here we could supply one-package service for every customer, from beginning to consult to whole machines trial running,including staff training.
Customers just need inform what you have in hand & and what you want to get.The rest all we will supply & finish for you.
♦Pre-sale services:Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦Sale services:Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦After-sale services:Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
comnpany information:
FAQ:
Dear sir/madam,before you send inquiry to me,please note how many tons water treatment you need?and your raw water conductivity,and single stage or 2 stage you need?
customer visiting:
contact:
