Two-stage Reverse Osmosis Water Treatment Machine
- Qingdao
- T/T
You May Like
-
5000L/H Two-stage Reverse Osmosis System of Water Purification
-
Ultrafiltration EDI Water Treatment Equipment Reverse Osmosis System
-
Single-stage Reverse Osmosis Water Purifier for Water Treatment Plant
-
China Hot Sell Drinking Water Making Purification Equipment
-
Double Stage Reverse Osmosis Direct Drinking Water Treatment Equipment
-
China Hot Sell Water Purification Equipment on Sale
Product Details
| Brand Name | Shuiwang | Model Number | SW |
Product Description
Two-stage Reverse Osmosis Water Treatment Machine
Process of Two-stage Reverse Osmosis Water Treatment Machine:
Raw water+ Raw water tank +Raw water pump+Quartz sand Filter + Activitated carbon Filter + Scale inhibitor system +Ultrafilter+High Pressure Pump+ Reverse Osmosis Host System + Pure Water Tank
Consumable of Two-stage Reverse Osmosis Water Treatment Machine :
1. Microfilter cartridges
2. Scale inhibitor
Two-stage Reverse Osmosis Water Treatment Machine Detailed Specification:
With the report of raw water and the different requirements in different field, we can design a appropriate reverse osmosis water treatment plant for you
Parameters | ||
Product | Two stage Reverse Osmosis water treatment machine | |
Pure Water Production Capacity | 6000 litre per hour(25°C) | |
Input water quality | TDS≤2000PPM(SDI≤5, 2≤PH≥11, NTU≤1) | |
Systematic Salt Rejection Rate | ≥98% | |
Recovery Rate(pure water : inlet water) | 50~75% | |
Recommended Working Temp. | 5~35°C | |
Input Power(standard) | AC380V / 50Hz | |
Pre-treatment | ||
Quartz Sand Filter(Flux: 6M3/H) | Φ900×1850mm(t=2.0mm) SUS304 stainless tank with 1200KG quartz sand Or optional fiber glass tank, carbon steel lining rubber tank | |
Active Carbon Filter(Flux: 6M3/H) | Φ900×1850mm(t=2.0mm) SUS304 stainless tank with 350KG activated carbon Or optional fiber glass tank, carbon steel lining rubber ta | |
Micron (PP Sediment) Filter | SUS304 stainless steel tank with 40inch PP filter×7PCS | |
Booster Pump | China Nanfang CHL8-30 pump×1PC | |

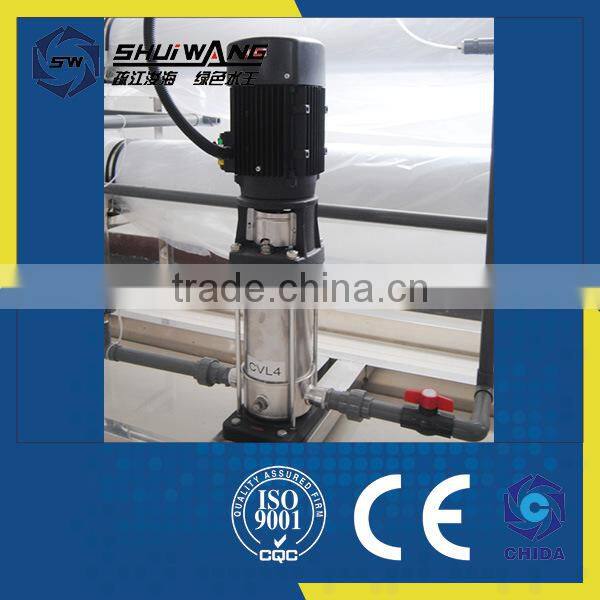

Multi-stage Pump for first stage RO | China Nanfang CDLS8-160 pump×1PC | |
Multi-stage Pump for second stage RO | China Nanfang CDL4-220 pump×1PC | |
Reverse Osmosis System | ||

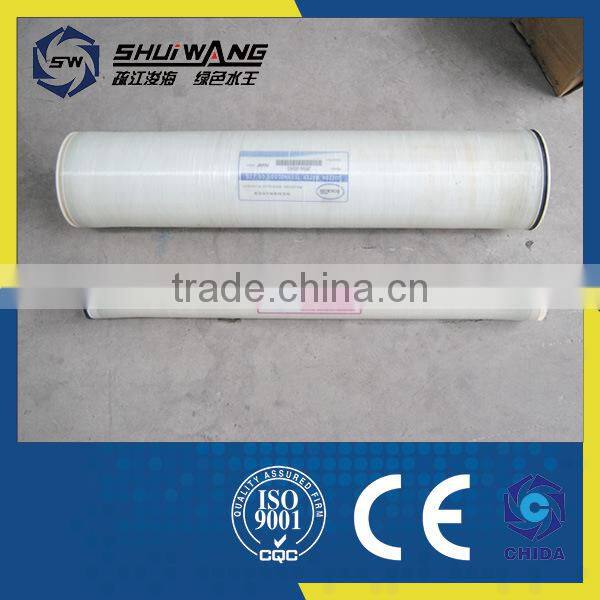

Membrane for first stage RO | U.S. HYDRANAUTIC ESPA-8040 membrane × 7PCS Optional VONFRON membrane and DOW | |
Membrane for second stage RO | U.S. HYDRANAUTIC ESPA-8040 membrane × 5PCS Optional VONFRON membrane and DOW | |
Accessories | ||
Piping | SS304 connection | |
Touch-screen PLC control panel | America EMERSON PLC with colorful touch-screen operation | |
Others | Flow metre, TDS metre, pressure metre, electromagnetic valve, etc. | |
OPTIONAL | ||
Chemical dosing System for PH adjustment, anti-scaling, etc. | U.S. Pulsafeeder Xo60 Automatic Dosing valve with 50L tank | |
UV sterilizer | IP67 waterproof grade UV-40W UV sterilizing(up to 5000hour lamp lifespan) Or U.S. Hanovia lamp(up to 9000hours lamp lifespan) | |
Built-in chemical membrane washing device for RO system | For regular membrane cleanning so as to renew and improve the membrane performance | |

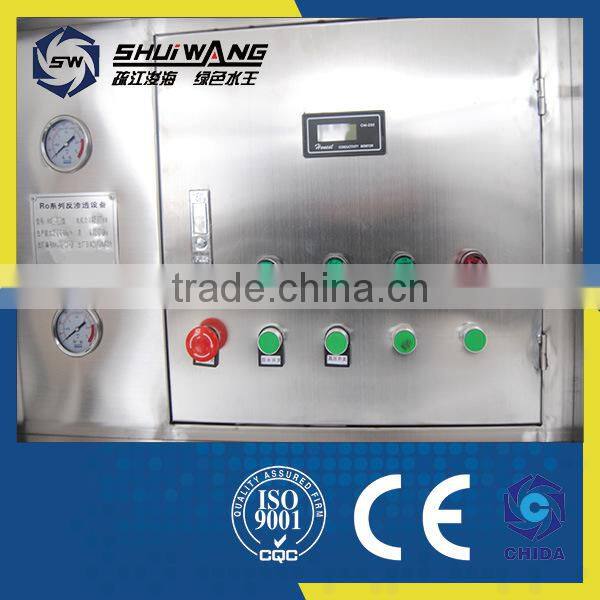

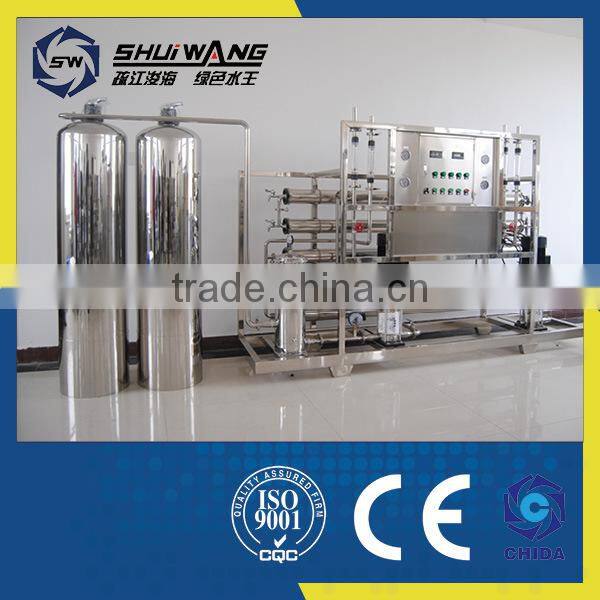

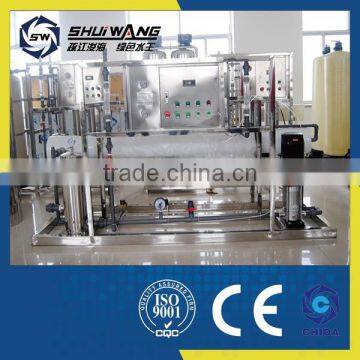

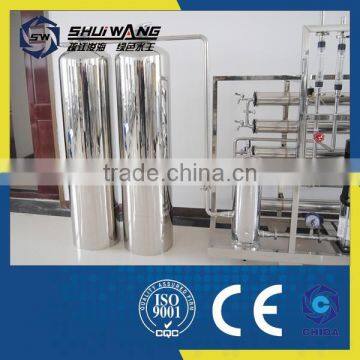

Two-stage Reverse Osmosis Water Treatment Machine Picture
Two-stage Reverse Osmosis Water Treatment Machine Customer Visit
What we could do for you:
Here we could supply one-package service for every customer, from beginning to consult to whole machines trial running,including staff training.
Customers just need inform what you have in hand & and what you want to get.The rest all we will supply & finish for you.
♦Pre-sale services:Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦Sale services:Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦After-sale services:Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Two-stage Reverse Osmosis Water Treatment Machine
