Wireless PIR Morion Sensor PIR-100B

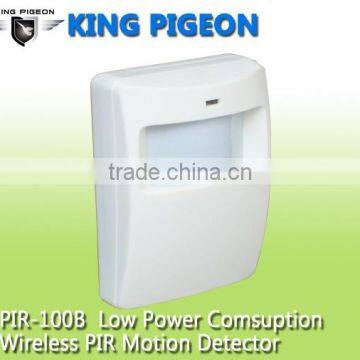

Wireless PIR Morion Sensor PIR-100B photo-1

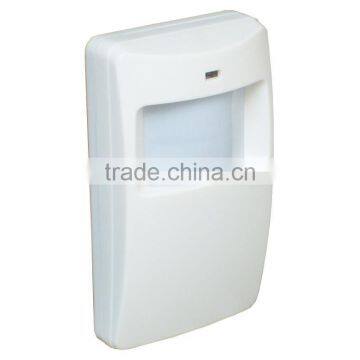

Wireless PIR Morion Sensor PIR-100B photo-2

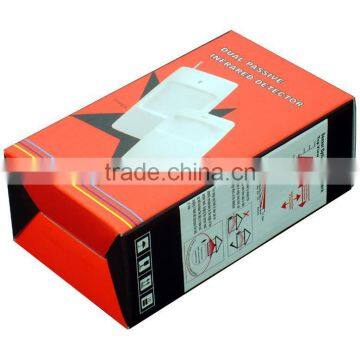

Wireless PIR Morion Sensor PIR-100B photo-3

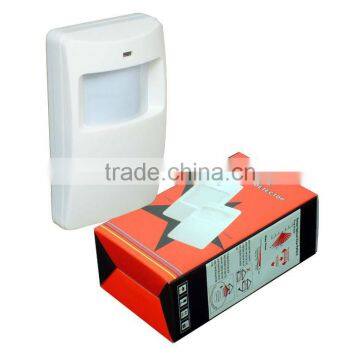

Wireless PIR Morion Sensor PIR-100B photo-4

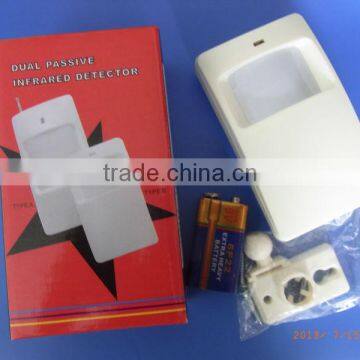

Wireless PIR Morion Sensor PIR-100B photo-5
Wireless PIR Morion Sensor PIR-100B photo-6
US$ 1 - 2 MOQ: 20 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Kingpigeon
Model Number:
PIR-100B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Kingpigeon
Model Number PIR-100B
Usage Other, PIR Motion Sensor



433.92Mhz Alarm Acessories

PIR Motion Sensor

Outdoor Waterproof PIR  Motion Sensor

Solar PIR Motion Sensor

Low Power Consumption PIR Motion Sensor



Product Description



KING PIGEON®



Wireless PIR Morion Sensor PIR-100B





 Any Interest, Please Contact Us to Get A Free Quotaiton Of All the Alarm Acessories :)

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

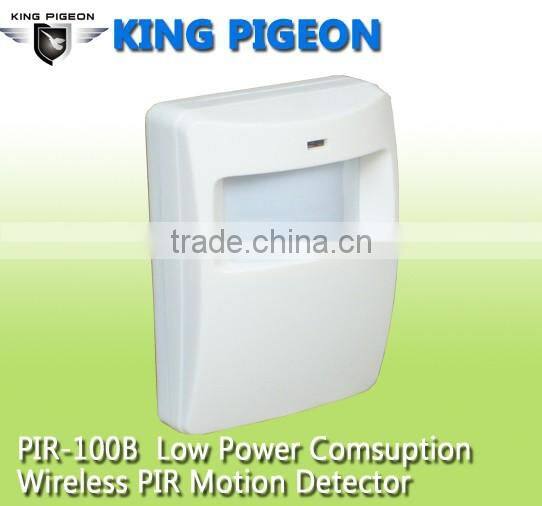

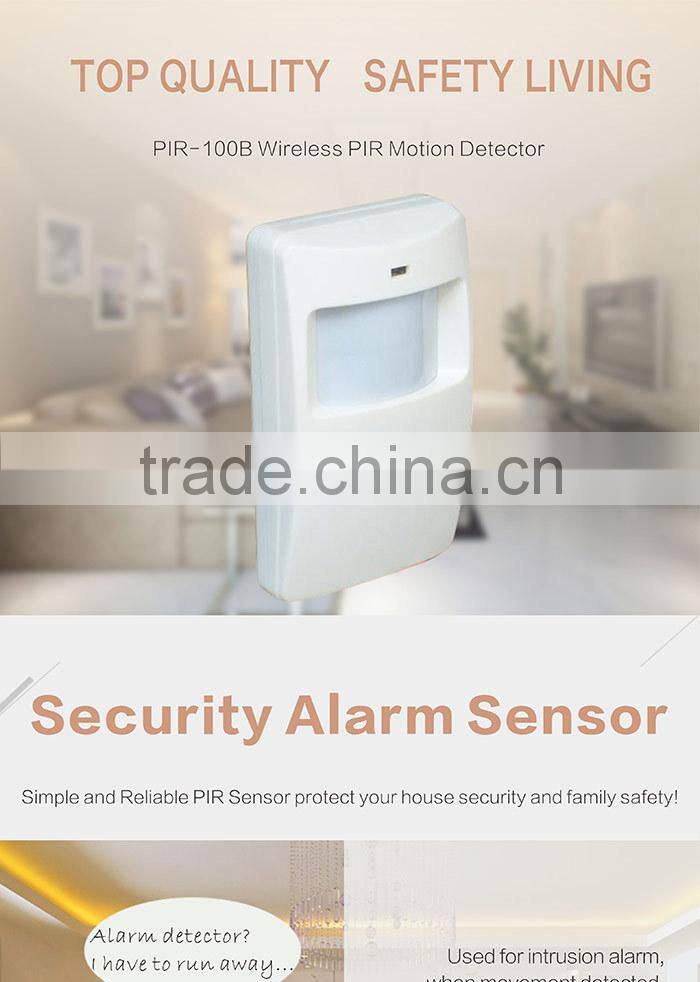

Low Power Consumption Wireless PIR Motion Sensor

PIR-100B





Wireless PIR Morion Sensor PIR-100B

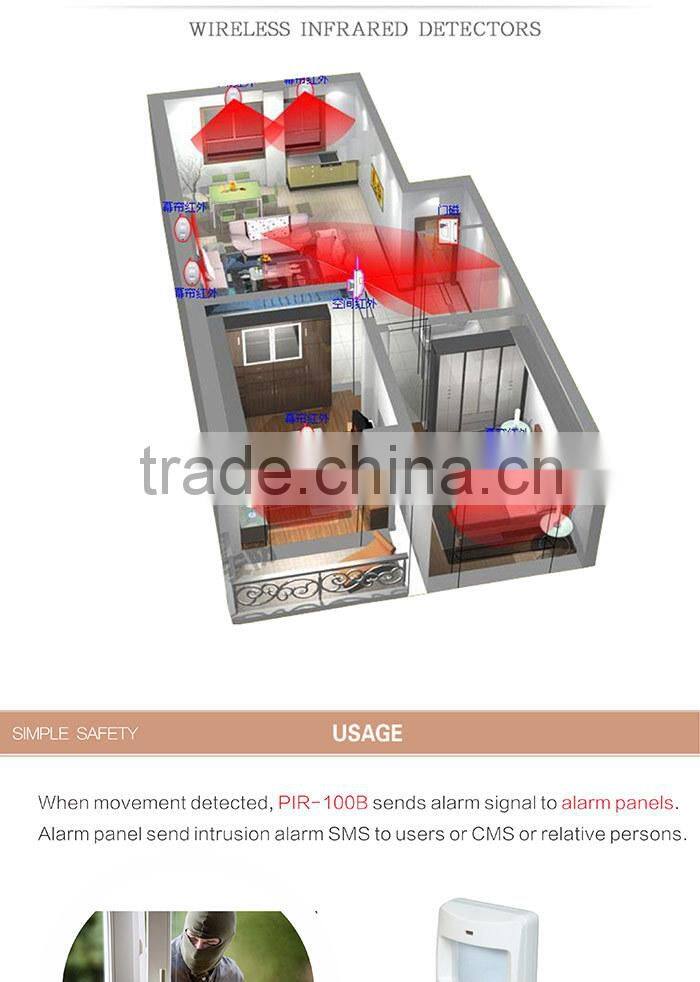

>>>>>>>>>>>> How does it work:

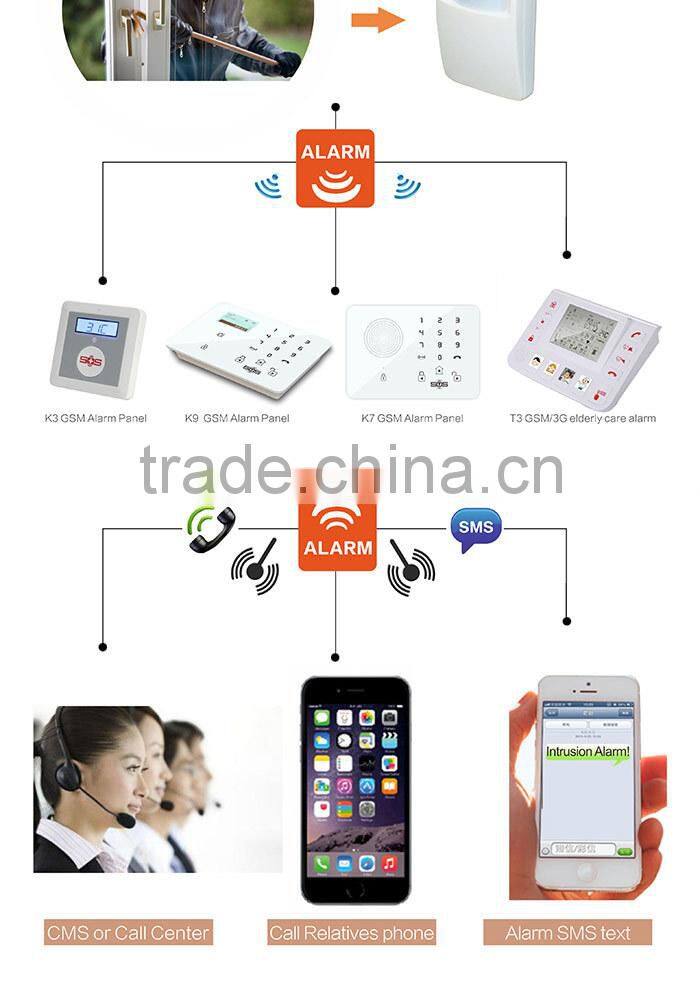

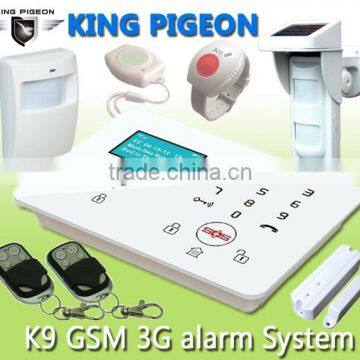

Wireless PIR Motion Sensor PIR-100B should be worked with a alarm panel which supports the frequence of 433.92Mhz , when the intruders trigger the sensor, our all in one Alarm Host K9 will send SMS alert, or make a phone call to the autherized phone numbers.



For more details about our All-in-one Alarm Host K9, please contact us to get a free user manual for further study.



Wireless PIR Morion Sensor PIR-100B

Wireless PIR Morion Sensor PIR-100BWireless PIR Morion Sensor PIR-100BWireless PIR Morion Sensor PIR-100BWireless PIR Morion Sensor PIR-100BWireless PIR Morion Sensor PIR-100B





>>>>>>>>>>>> Features:

    1. Internal Wireless Antenna, long distance transmission;
    2. Learning code, easy to assign to the alarm panels;
    3. Tamper Switch for protecting the to avoid opened;
    4. Newly-developed dual element passive infrared sensor unit;
    5. Wireless transmitting digital signal to control panel;
    6. Intelligent MCU inside, eliminate false alarm;
    7. Low power alert by buzzer sounds;
    8. Microcontroller temperature analysis & Automatic temperature compensation for best summertime detection;
    9. Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust;
    10. Selectable detection sensitivity (standard/high) for different environmental requirements;
    11. SMT adopted, RF and EMI Immunity;
    12. Low power consumption, long battery life;
    13. Adjustable detection time span(4minutes or 8 minutes).

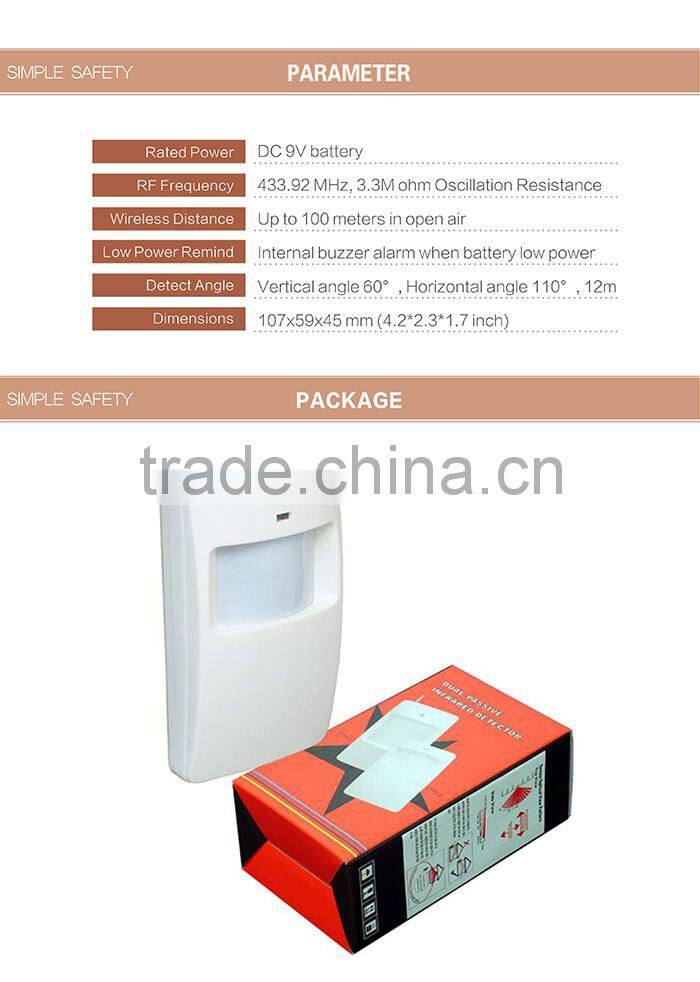

>>>>>>>>>>>> Specifications:





Operating Voltage

9V Laminated Battery

Detection Range

Vertical angle 60degree, Horizontal angle 110 degree, 12m

Standby Current

less than 12uA

Alarm Current

less than 22mA

RF Immunity

> 20 V/m 10 – 1000 MHz

Sensitivity

> 3300V/W

Noise(Vp-p)

<200mV, (mVp-p)(25°C)

Transmitting Freq.

433.92MHz

Transmitting Distance

minimum 100m( in the open area)

Temperature Range

-10°C to +50°C

Relative Humidity

90% (25  )

Installation Mode

Wall mounted by bracket

Installation Height

2~2.3m

Housing

High-impact ABS

Dimensions

107x59x45mm (HxWxD)

Applications

indoor use. Office, Room, Museum, Library, Warehouse, etc.





  >>>>>>>>>>>> Other Wireless/Wired PIR Motion Sensors:



  1. Wireless Low Cost  PIR motion Sensor PIR-100A
  2. Wirelss Low Power Consumption PIR Motion Sensor PIR-100B
  3. Wireless Outdoor Dual- PIR Motion Detector(Pet immune,rainproof,solar power panel) PIR-100D
  4. Wireless Curtian PIR Sensor  CPIR-100A
  5. Wireless Ceiling PIR Sensor  CPIR-100B
  6. Wired Ceiling PIR Sensor CPIR-03
  7. Wired  Curtian PIR Sensor CPIR-01
  8. Wired  Low Cost  PIR motion Sensor PIR-01
  9. Wired Outdoor Microwave Dual- PIR Pet Immune Motion Detector   PIR -05
  10. Wired indoor Pet Immune Motion Detector PIR-03
  11. For More Alarm Acessories, please contact us feel free SKYPE: gsmalarm55





Wireless Sensor: PIR-100A, PIR-100B, PIR-100D,  CPIR-100A, CPIR-100B.

Wired Sensor: PIR-01, PIR-03, PIR-05, CPIR-01(1), CPIR-03.

Pet Immune Sensor:  PIR-03,  PIR-05,   PIR-100D.

Outdoor Rainproof Sensor:   PIR-05,   PIR-100D.
