KING PIGEON®

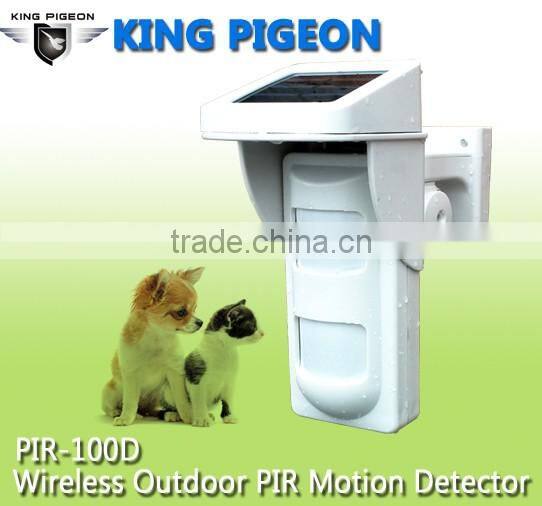

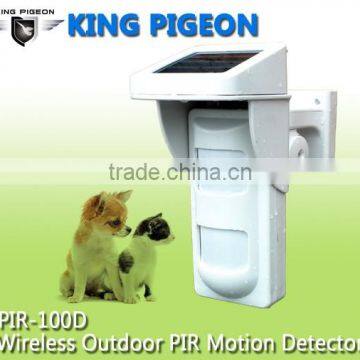

Wireless Outdoor PIR Morion Sensor PIR-100D
Any Interest, Please Contact Us to Get A Free Quotaiton Of All the Alarm Acessories :)
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

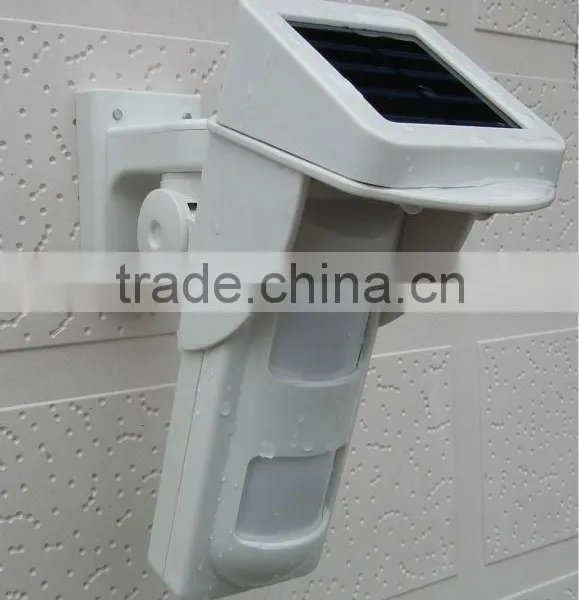

Wireless Outdoor PIR Morion Sensor
PIR-100D
>>>>>>>>>>>> How does it work:

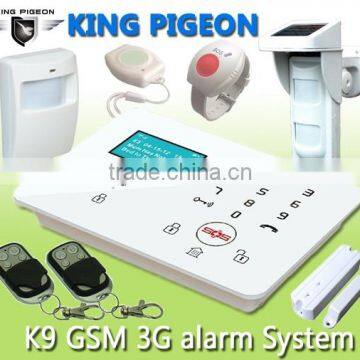

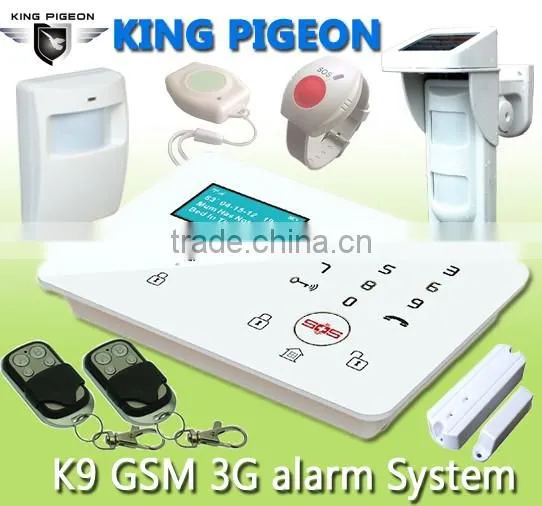

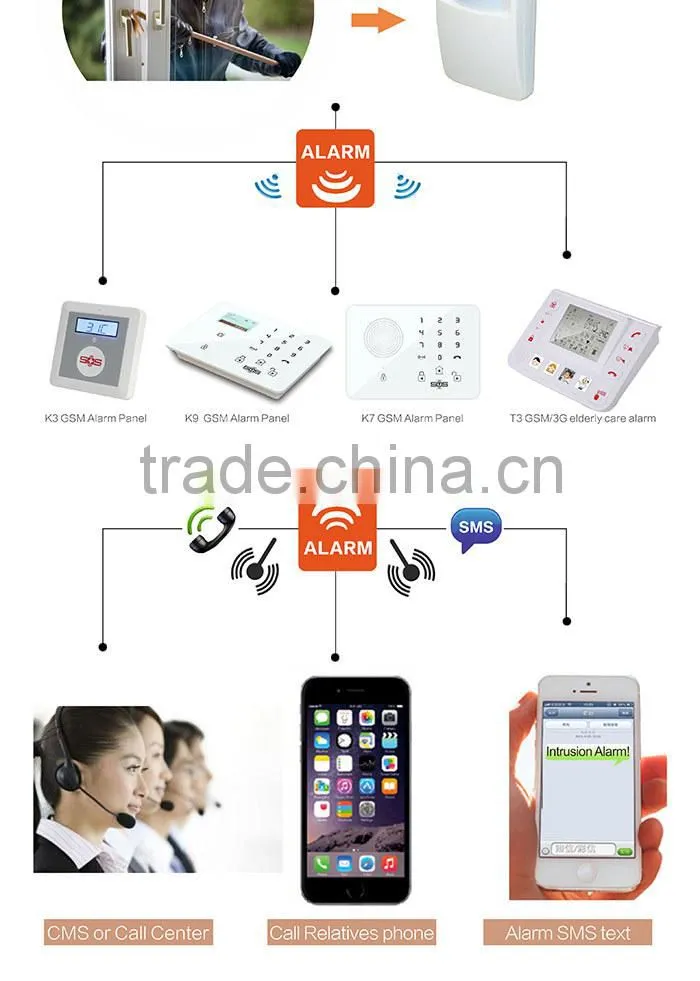

Wireless Outdoor PIR Motion Sensor PIR-100D should be worked with a alarm panel which supports the frequence of 433.92Mhz , when the intruders trigger the sensor, our all in one Alarm Host K9 will send SMS alert, or make a phone call to the autherized phone numbers.
For more details about our All-in-one Alarm Host K9, please contact us to get a free user manual for further study.
>>>>>>>>>>>> Features:
- Waterproof design for outdoor, IP Grade is IP65;
- Built-in 2 newly-developed dual element passive infrared sensor unit;
- Intelligent MCU inside, increased anti-light interference and eliminate false alarm;
- Adopts Pet Immunity technology and specialized optical lens for eliminate false alarm;
- Microcontroller temperature analysis and Automatic temperature compensation;
- Selectable detection sensitivity for different environmental requirements;
- Internal Wireless Antenna, long distance transmission;
- Wireless transmitting digital signal to control panel;
- Learning code, easy to assign to the alarm panels;
- Tamper Switch for protecting the to avoid opened;
- SMT adopted, RF and EMI Immunity;
- Low power consumption, backup rechargeable battery;
- Low power alarm;
- Powered up by solar panel, no need wirings;
>>>>>>>>>>>> Specifications:
Operating Voltage | 12VDC(Powered Up by Solar Panel) |
Detection Range | Vertical angle 60degree, Horizontal angle 110 degree, 12m at 20°C. |
Standby Current | less than 100uA |
Alarm Current | less than 30mA |
RF Immunity | > 30V/m 0.1-500MHz |
Sensitivity | > 3300V/W |
Noise(Vp-p) | <200mV, (mVp-p)(25°C) |
Anti white light | >10000Lux |
Transmitting Freq. | 433.92MHz |
Transmitting Distance | minimum 100m( in the open area) |
Pet Immunity | ≤25Kg |
Temperature Range | -20°C ~ +55°C |
Relative Humidity | 95% (25 ℃) |

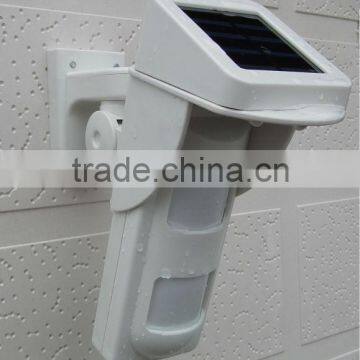

Installation Mode | Wall mounted by bracket |
Backup Battery | 3*1.2V AAA Ni-MH Rechargeable battery, can last up to 40days. |
Installation Height | 1.8~2.4m |
Detection Speed | 0.3m/S~3.2m/S |
Housing | High-impact ABS |
Dimensions | 160x65x50.5mm (HxWxD) |
Applications | For outdoor applications, perimeter protection alarm systems. |

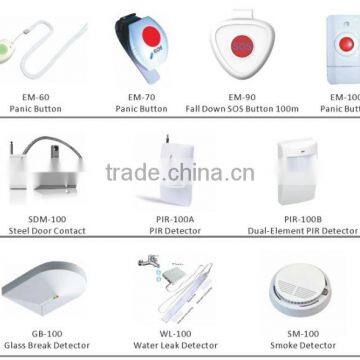

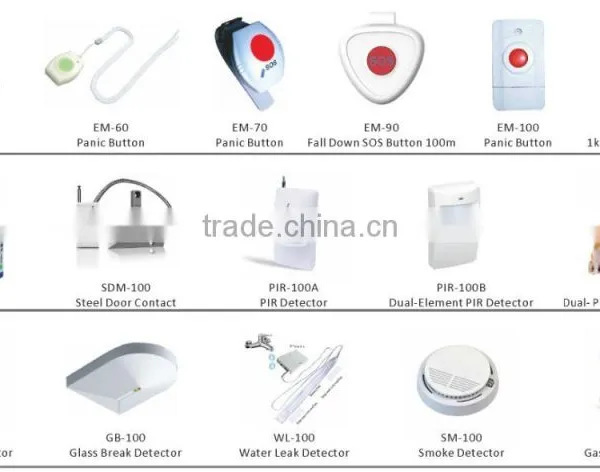

>>>>>>>>>>>> Other Wireless/Wired PIR Motion Sensors:
- Wireless Low Cost PIR motion Sensor PIR-100A
- Wirelss Low Power Consumption PIR Motion Sensor PIR-100B
- Wireless Outdoor Dual- PIR Motion Detector(Pet immune,rainproof,solar power panel) PIR-100D
- Wireless Curtian PIR Sensor CPIR-100A
- Wireless Ceiling PIR Sensor CPIR-100B
- Wired Ceiling PIR Sensor CPIR-03
- Wired Curtian PIR Sensor CPIR-01
- Wired Low Cost PIR motion Sensor PIR-01
- Wired Outdoor Microwave Dual- PIR Pet Immune Motion Detector PIR -05
- Wired indoor Pet Immune Motion Detector PIR-03
- For More Alarm Acessories, please contact us feel free SKYPE: gsmalarm55
Wireless Sensor: PIR-100A, PIR-100B, PIR-100D, CPIR-100A, CPIR-100B.
Wired Sensor: PIR-01, PIR-03, PIR-05, CPIR-01(1), CPIR-03.
Pet Immune Sensor: PIR-03, PIR-05, PIR-100D.
Outdoor Rainproof Sensor: PIR-05, PIR-100D.
>>>Every client is our Greatest Asset.
Our aim is to provide the most User-friendly Alarms with the best quality and affordable rates to every family throughout the word.
Based on more than 9 years rich experiences, King Pigeon provide Professional High Quality and Reliable OEM/ODM service for the market in worldwide!
Welcome OEM/ODM Service
Put Your LOGO on Unit and Package Available!
>>>Why KING PIGEON?
King Pigeon is a professional gsm eldery alarm, GSM Wireless Alarm, GSM Home Alarm System, GSM SMS Alarm, GSM SMS Controller, GSM Home Automation system, Industrial Remote Controller, GPRS RTU Data Logger, GSM Telemetry, Temperature Measurement Logger, Power Monitoring Alarm, GSM M2M Products Manufacturer since 2005.
Your Any Request Will Be Warmly Welcomed, So DO NOT Hesitate To Contact Us. :)
Skype: GsmAlarm55
