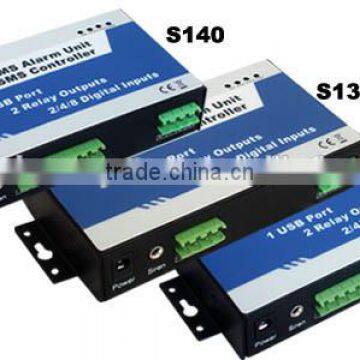

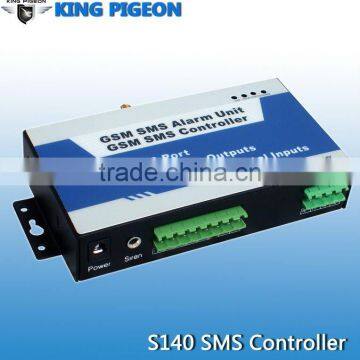

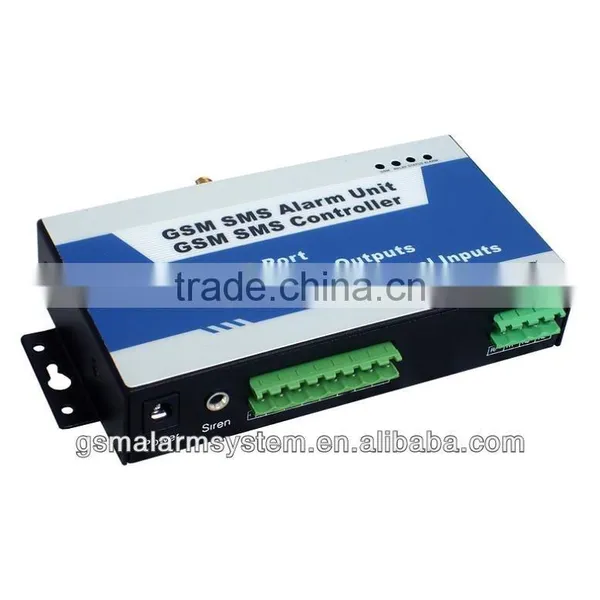

GSM SMS Alarm Unit with 4DIN 2DO, SMS Alarm Communicator

Standard Package list:
GSM Controller X 1
Power supply adapter X 1 (12V 1.5A)
CD (Pc programmer tool) X 1
GSM Antenna X 1
Gross Weight: 1.0Kg
15pcs per carton

GSM SMS Alarm Unit with 4DIN 2DO, SMS Alarm Communicator

Turn Relay ON OFF by Mobile Phone/SMS Text Command

1.Wireless remote controller work by GSM Quad-band Network

2.Lighting/Pump/Generator/Motor/Valve Remote switch controller

3.Wireless GSM Switch 2/4/8 NC/NO Dry Contact Inputs & 2 Relay Outputs

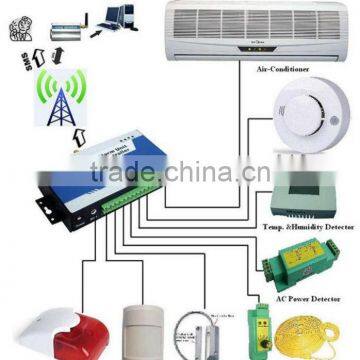

>>>>SMS Controller Alarm, S130 S140 S150 used for:

>>>GSM Water leak alarm,

>>>GSM Humidity alarm;

>>>GSM Automation System;

>>>Power Station,Transformer,Regulator,Stabilizer monitoring and control;

>>>Vending machine controller;

>>>Pump,Motor,Tank,Generators monitoring and switch control.

>>>>>>GSM SMS Controller & Alarm Features:

>>> 1 relay output (240VAC/3A) can be switched ON/OFF by sending a SMS text;

>>> 1 relay output (240VAC/3A) can be switch on 0-120mins if any inputs triggered;

>>> 2/4/8 Alarm logic inputs, NC or NO and EOL is optional;

>>> 3 SMS Alert numbers and 5 auto-dial phone numbers can accept to the alarm message;

>>> Two-way voice communication* by external microphone and speaker;

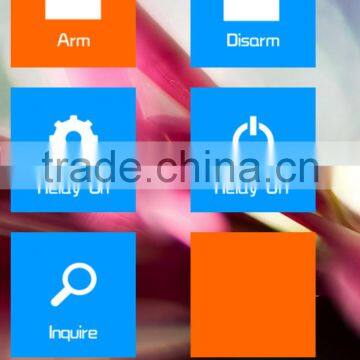

>>> Supports armed, disarmed, inquiry status, switch ON or OFF relay output by SMS Commands;

>>> Password protection, prevents unauthorized user;

>>> Configuration from PC Programmer software via USB port;

>>> Time stamped alarm messages;

>>> Backup rechargeable battery inside, runtime more than 24hours;

 >>>>>>The GSM SMS Controller & Alarm suitable for:

1.Security Alarm System applications;

2.Supervision and monitoring alarm systems;

3.Automatic monitoring system;

4.Vending Machines security protection;

5.Pumping Stations, Tanks, Oil or Water levels;

6.Buildings and Real Estate;

7.Weather Stations;

8.River Monitoring and Flood Control;

9.Oil and gas pipelines;

10.Corrosion protection

11.Temperatures, water leakage applications;

12.Wellheads, boat, vehicle;

13.Energy saving, street lights control system;

14.Valve controls;

15.Transformer stations;

16.Unmanned machine rooms;

17.Control room application;

18.Automation System, M2M;

19.GSM Access Control System, GSM Gate Opener, etc.

>>>>>>Specifications:

GSM Frequency: Default 900/1800/1900MHz, Optional 850/1900/1800/1900MHz

Power adapter: DC 12V/1.5A

Power Current: Max:500mA   Type :50mA

SIM Card     :    Supporting 3V SIM Card

GSM Antenna : 50 Ω SMA Antenna interface,

Serial       : USB Port

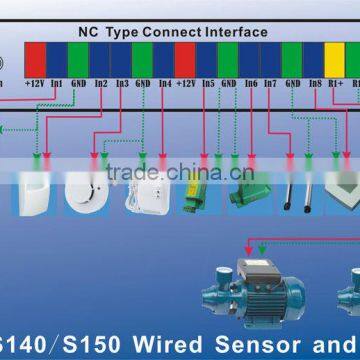

Input Type : UP TO 8, dry contact, NC,NO,EOL

                    S130: 2

                    S140: 4

                    S150: 8

Output Type : 2 Relay,dry contact, 240VAC/3A.

Dimension   : LxWxH 153x86x28mm

Backup-Power :     3.7V 1200MAh LI-ION battery

Temperature :    -20°C ~ +60 °C

Humidity     :     Relative humidity 20~95% (condensation free)

Net Weight   : 320g

** Electrical Characteristics /25°C

>>>>>>Standard Package list:

>>GSM SMS Controller * 1

>>AC/DC Power supply adapter * 1 (12V 1.5A),UK/EU/USA/AU type plug are available

>>CD (Pc programmer tool) * 1

>>GSM Antenna * 1

>>Package Size:W190*D140*H60mm

>>Gross Weight: 1.0Kg

15pcs per carton

>>Optional Accessories:

Water Overflow Level Sensor,
Oil Overflow Level Sensor,
Water Leak Sensor,
Temperature Sensor,
Door Sensor,
PIR Motion detector,
Smoke detector,
Gas Leak detector,
Glass Break detector,
Shock detector,
Power failure detector, etc.
