Product Details
Place of Origin: | Guangdong, China | Brand Name: | kingpigeon | Model Number: | RTU5017 |
Operating Temperature: | -20-+60 | Max. Current: | 0.5A | Max. Voltage: | 24V DC |
Packaging Details
Standard Package list of the GSM SMS Controller: GSM SMS Controller X 1 GSM Antenna X 1 AC to DC Adaptor X1 (12VDC/2A) Backup Battery X 1 (Inbuilt) User Manual X 1 Note: The package does not include any SIM card.
Product Description
GSM Remote Control Relay switch Controller
King Pigeon RTU5017 GSM SMS Remote Switch,

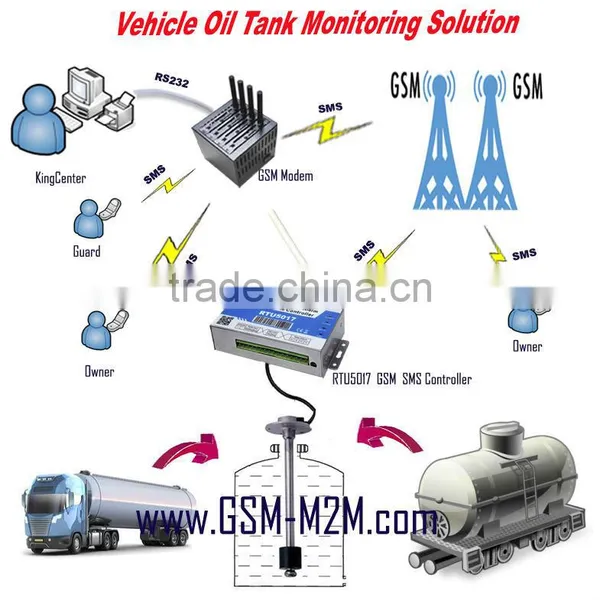

SMS cable liquid level Remote Controller, Home Automation
Turn Relay ON/OFF by Mobile Phone/SMS Text Commandemote
Make Control Easier!

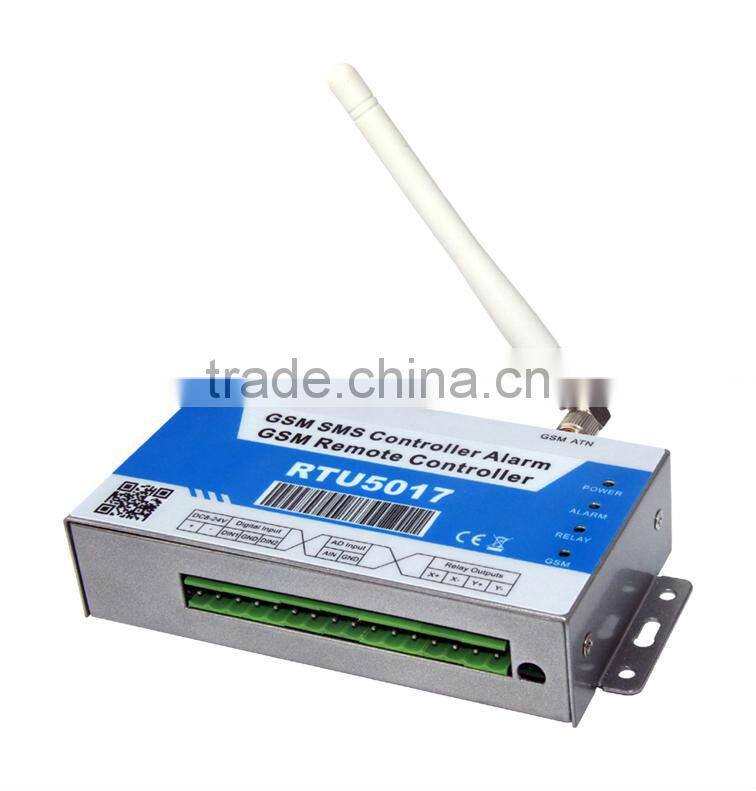

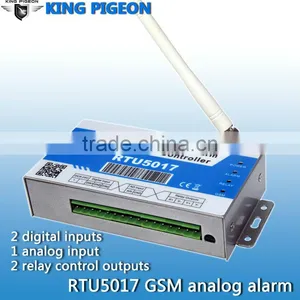

Model: RTU 5017 (2DIN,2Dout,1AIN)
Name: GSM SMS Controller (GSM RTU)
The GSM SMS Controller RTU5017 is a very simple programmable I/O ports (2DIN, 2DOUT, 1 AIN) and cost effective GSM RTU which can be used for data acquisition, remote switching machine, automation system and other applications.
Just dial from Authorized User number then one of the two relay output or any one of the relay output will be switched on or off. There are no call costs, the GSM SMS Controller Alarm rejects the call from authorized number then carries out the turn ON/OFF action.
The RTU5017 also supports interval time to report the Analog input value, Digital output status to the authorized numbers, and also can report the value of them while the threshold of the ultra-high----high, low ---- ultra-low occurrence.
Moreover, the RTU5017 with 2 digital inputs for digital inputs, when any one of the inputs triggered, will activate one or both of the relay outputs, in the meanwhile, the RTU5017 will send SMS Alert to owners immediately. This is very useful if you need protect your assets with low cost solution.
In one word, the GSM SMS Controller RTU5017 is the best choice for lots of applications.
Mainly Features of the GSM SMS Controller:
1. Can be operated from anywhere, no distance limitation, Android App and iOS App iKeypad for quickly operation;
2. Din Rail 35mm installation;
3. No call charges. the GSM SMS Controller rejects the call from authorized number then carry out the programmable actions on the first 'ring';

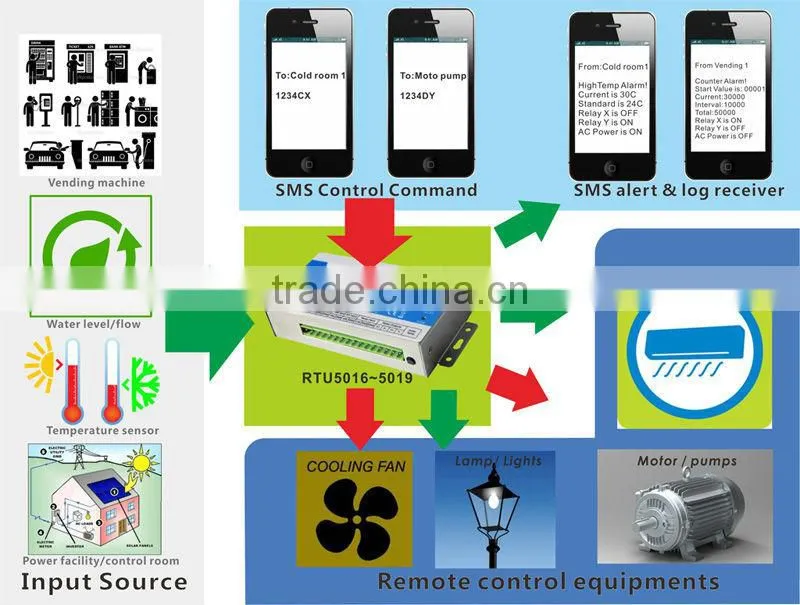

4. Multiple applications. (gates, barriers, temperature, humidity, machines, automation systems);
5. Secure - Using caller ID and password for identification, unknown callers are ignored;
6. Programmable by SMS Commands with password protection;
7. External AC Power monitoring, AC On/OFF will send SMS to authorized phone numbers;
8. Timer Report—Can setup every x hours automatically send its status/Value to the authorized numbers; 9. Rechargeable Backup Battery inside can last 18hours;
10. Upto 6 authorized phone numbers, each number can be used to receive call or SMS or both of call and SMS while alarm occurrence;
11. Authorized phone numbers can be used for dial to switch ON/OFF one or both of the relay outputs, inquiry status, armed or disarmed;
12. Two Digital inputs (Dry Contact, NC/NO) for door sensor, motion sensors or other sensors, the input activated can active one or both of the relay outputs and send programmable SMS and dial to authorized phone numbers;
13. Two digital outputs (dry contact, NO) with relay rating 10A/240VAC for connecting the switch of the air conditioner or machines, the outputs can setup as always ON, Pulse output, by SMS, authorized phone number dial in, and alarm events;
14. One Analog input, 0-5V or 0-20mA or 4~20mA, 10bits Direct Current inputs, can setup interval time to alarm, interval value to alarm, ultra-high, high, low, ultra-low alarm, ensure time, when alarm can active one or both of the relay outputs and send programmable SMS and dial to authorized phone numbers;
15. Based on GSM Network, applied to many applications.

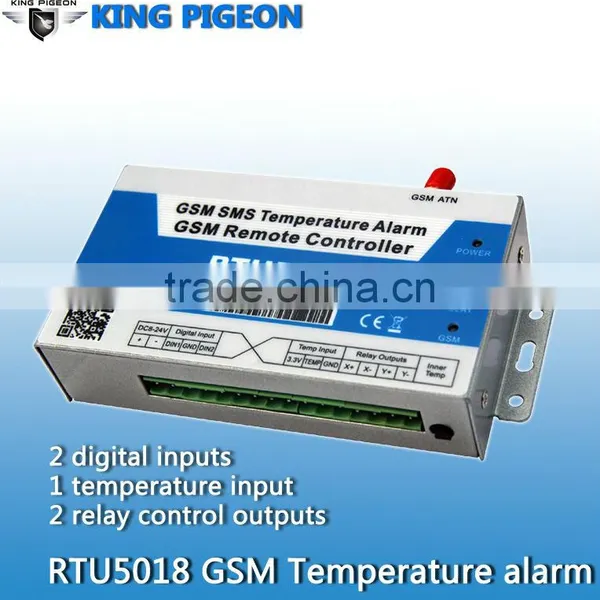

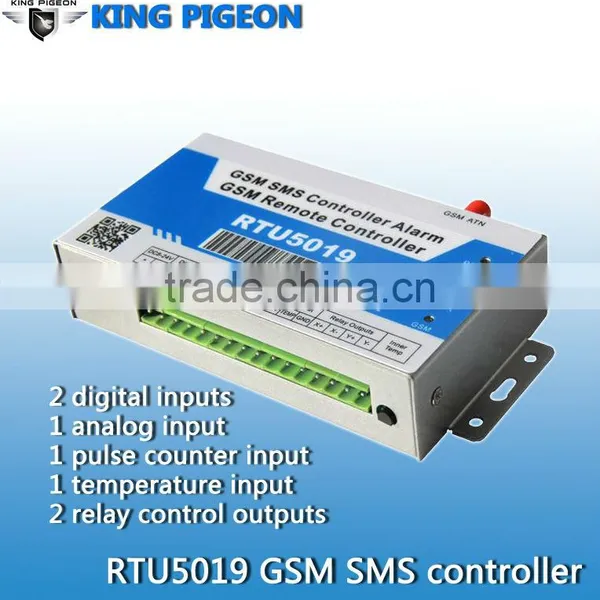

King Pigeon RTU5016~5019 comparison table for reference
ITEM | TYPE | SPECIFICATION | RTU5016 | RTU5017 | RTU5018 | RTU5019 |
INPUT | Digital | Dry contact, NC/NO | 2 | 2 | 2 | 2 |
Analog | 4-20mA,or 0-5V,or 0-20mA,10bits | / | 1 | / | 1 | |
Pulse Counter | Interval/total: 00000~99999 | 1 | / | / | 1 | |
Temperature | DS18B20, Accuracy:0.5*, detect range:-55~+125 Centigrade, -67 to +257 Fahrenheit) | / | / | 1 | 1 | |
OUTPUT | Digital | Dry contact Relay, capacity:250V/10A | 2 | 2 | 2 | 2 |
APP | Android | Download on our website | Yes | Yes | Yes | Yes |
iOS | Download iKeypad on APP STORE | Yes | Yes | Yes | Yes |
Specifications of the GSM SMS Controller:
Parameter item | Reference scope |
DC Power supply | 8~24VDC 2A |
Power consumption | 12V input Max. 50mA/Average 50mA |
Frequency range | Dual band 900/1800 MHz (Default) |
SIM Card | Supporting 3V SIM Card |
Antenna | 50 Ω SMA Antenna interface |
Temperature range | -20-+60 Centigrade |
Humidity range | Relative humidity 90% (condensation free) |
Relay Output | 2, Dry Contact, NO type, 10A/250V AC |
Digital Input | 2, Dry Contact, NC or NO type |
Analog Input | 1, 0-5V or 0-20mA or 4~20mA, 10 bits |
Backup Battery | 900mAH, last 18hours |

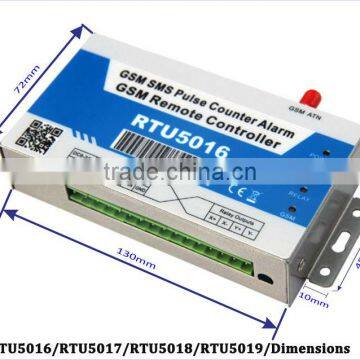

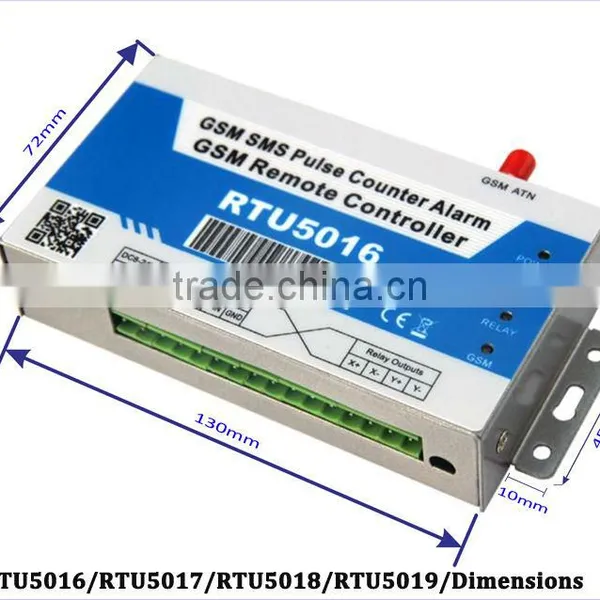

Exterior dimension | 150mm*71mm*30.30mm |
Net Weight | 600 g |
Standard Packing list of the GSM SMS Controller :
GSM SMS Controller X 1
GSM Antenna X 1
AC to DC Adaptor X1 (12VDC/2A)
Backup Battery X 1 (Inbuilt)
User Manual X 1
Note: The package does not include any SIM card.
Optional: Door Sensor, Motion Sensor, Temperature Sensors and others.
