Specifications
The higher quantity, the best price.Pumping gas from airtight container effectively.

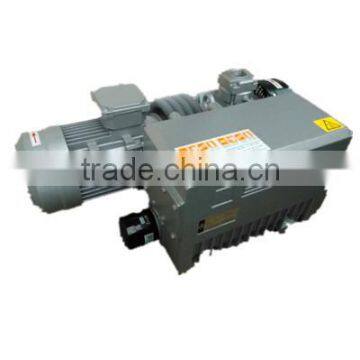

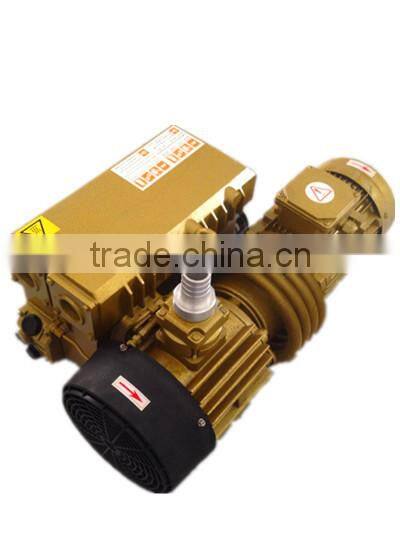

High quality XD series single or double stage rotary vane vacuum pump
Specifications:
1,Voltage: 220V/50HZ, 110V/60HZ. Or According To Customer
2,Warranty:1 year.
3,Minimum order:1 set
Scope of application:
Vacuum packaging, drying, distillation, concentration, loading and unloading, and attract, vacuum forming, etc
Advantages:
1.Many rotary vane design, high efficiency and energy saving
2.Air inlet non-return valve design, can prevent oil
3.The built-in oil mist filter, exhaust clean and no pollution
4.Motor and pump direct drive, small vibration, low noise
Product Description
1. High utmost vacuum rate, it can be less than 0.5mbar
2. High deflating speed
3. Low noise while working, lower than 67db
4. Strong capacity in deflating the vapor
5. Protecting environment; an oil fog clearer is set in the vacuum pump, and no oil fog in the exhaust air
6. Compact structure, scientific and reasonable design, and it is easy to install in the industry system
Attention:
Pump can be within the scope of 5 ~ 40 °C environment temperature and the inlet pressure under the condition of less than 1330 pa, allows continuous work for a long time.
Technical parameter:
Model | XD-020 | XD-025 | XD-040 | XD-063 | XD-100 | XD-160/202 | XD-250 |
Pumping speed(m³/h) | 20 | 25 | 40 | 63 | 100 | 160/202 | 250 |
ultimate pressure(Pa) | 200 | 50 | 10 | 10 | 10 | 10 | 10 |
Power(KW) | 0.75/0.9 | 0.75/0.9 | 1.5 | 2.2 | 3 | 4/5.5 | 7.5 |
Motor speed (r/min) | 2800 | 2800 | 1440 | 1440 | 1440 | 1440 | 1440 |
Oil Capacity (L) | 0.5 | 0.5 | 1 | 2 | 2 | 5 | 6.5 |
inlet/outlet diameter (in) | G1/2 | G1/2 | G1 1/4 | G1 1/4 | G1 1/4 | G2 | G2 |
Weight(Kg) | 20 | 23 | 45 | 56 | 70 | 125 | 200 |

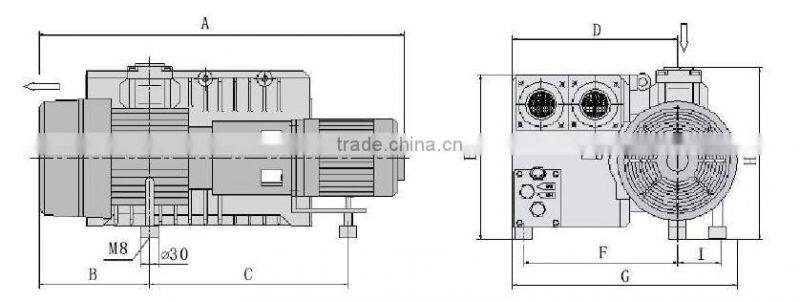

Model | A | B | C | D | E | F | G | H | I |
XD-020 | 410 | 70 | 220 | 215 | 195 | 135 | 240 | 180 | - |
XD-025 | 470 | 120 | 225 | 215 | 195 | 135 | 240 | 180 | - |
XD-040 | 650 | 150 | 290 | 195 | 270 | 175 | 300 | 280 | 70 |
XD-063 | 650 | 150 | 265 | 295 | 285 | 278 | 430 | 295 | - |
XD-100 | 720 | 180 | 295 | 295 | 285 | 278 | 430 | 295 | - |

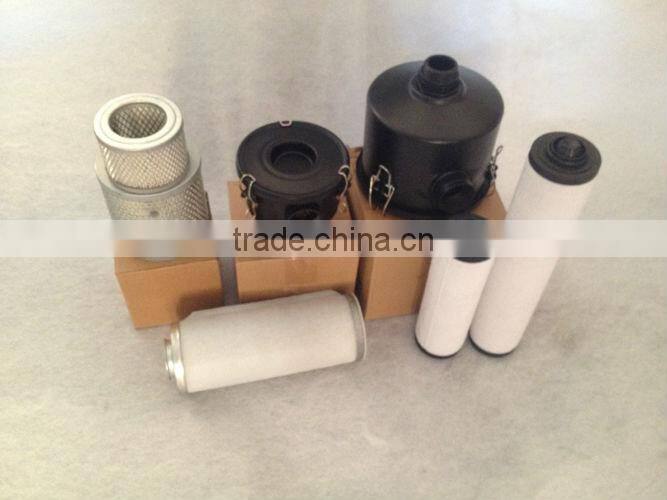

Frequently used Accessories:
We produce parts of machinery equipment for the large enterprises at domestic and overseas. In addition, we manufacture non-standard equipment,vacuum pump,mini cultivator.Our company has all kinds of engineering and technical professionals engaged in research, development and manufacture. (We formulate plans according to different customers; provide technical process and professional service after-sale)
