Specifications
Pumping gas from airtight container effectively.Can be used alone.And be used in other Industrial vacuum operation.

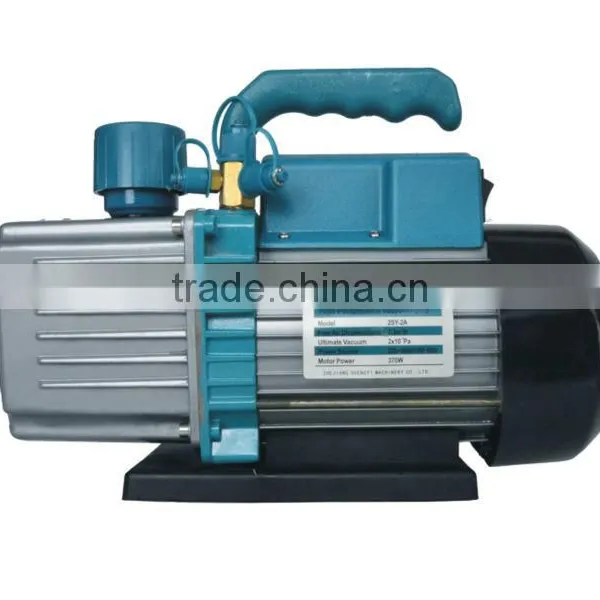

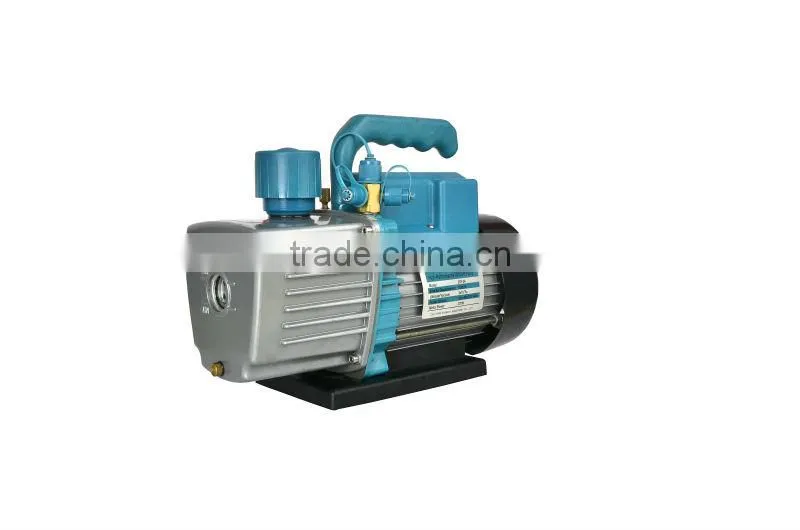

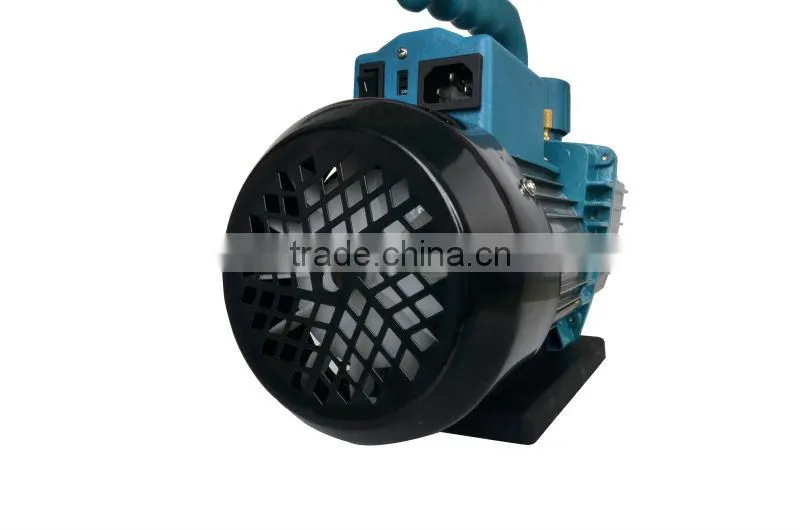

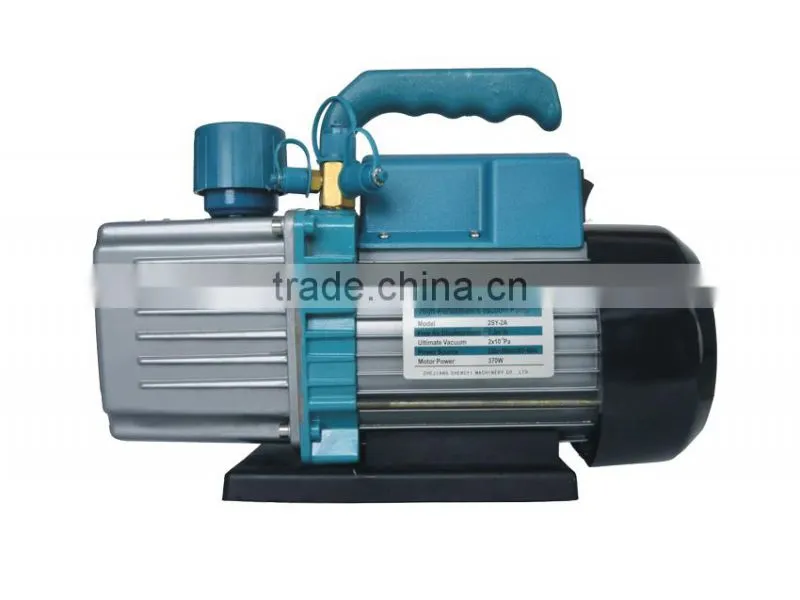

High quality Single stage rotary vane vacuum pump
Specifications:
1,Voltage: 220V/50HZ, 110V/60HZ. Or According To Customer
2,Pumping speed: 5.5~11CFM.
3,Warranty:1 year.
4,Minimum order:1 set
Application:
It is guaranteed start normally in winter's low temperature. It is applicable to vacuum packaging, vacuum free.
Can be used alone, also can be used as booster pump, diffusion pump, molecular pump and backing pump. Can be used for vacuum metallurgy, vacuum welding, vacuum impregnation, coating, vacuum drying and chemical pharmaceutical, electric vacuum components and other industrial vacuum operation.
Attention:
Pump can be within the scope of 5 ~ 40 °C environment temperature and the inlet pressure under the condition of less than 1330 pa, allows continuous work for a long time.
Technical parameter
| Model | Frequencey | CFM | POWER | Ultimate-Vacuum | oil capacity | Dimension | N.W. |
| kg | |||||||
| SY-2A | 220v/50Hz | 4.2 | 250 | 2 | 250 | 33*13.5*25 | 8.5 |
| 110v/60Hz | 5 | ||||||
| SY-3A | 220v/50Hz | 6.3 | 370 | 2 | 420 | 35.5*14.5*26 | 10.5 |
| 110v/60Hz | 7.6 | ||||||
| SY-4A | 220v/50Hz | 8.5 | 550 | 2 | 500 | 35.5*14.5*26 | 11 |
| 110v/60Hz | 10.2 | ||||||
| 2SY-1A | 220v/50Hz | 2.1 | 250 | 0.2 | 250 | 33*13.5*25 | 8.8 |
| 110v/60Hz | 2.5 | ||||||
| 2SY-2A | 220v/50Hz | 4.2 | 370 | 0.2 | 420 | 35.5*14.5*26 | 11 |
| 110v/60Hz | 5 | ||||||
| 2SY-3A | 220v/50Hz | 6.3 | 550 | 0.2 | 500 | 35.5*14.5*26 | 11.5 |
| 110v/60Hz | 7.6 |
company information:
We produce parts of machinery equipment for the large enterprises at domestic and overseas. In addition, we manufacture non-standard equipment,vacuum pump,mini cultivator.Our company has all kinds of engineering and technical professionals engaged in research, development and manufacture. (We formulate plans according to different customers; provide technical process and professional service after-sale)
