Help CenterHigh Quality Lower Price XD Series Single Stage Rotary Vacuum Pump in China
Related Products
-
Single Stage Rotary Vane Vacuum PumpNegotiableMOQ: 1 Set -
XD Series Single Stage Vacuum PumpNegotiableMOQ: 1 Set
-
Single or Double Stage Rotary Vane Vacuum PumpNegotiableMOQ: 1 Set
-
High Quality XD Series Single Stage Vacuum PumpNegotiableMOQ: 1 Set
-
High Quality XD Series Single Stage Vacuum Pump XD-040NegotiableMOQ: 1 Set
Specifications
The higher quantity, the best price.Pumping gas from airtight container effectively.
high quality lower price XD series single stage rotary vacuum pump
Specifications:
1,Voltage: 220V/50HZ, 110V/60HZ. Or According To Customer
2,Pumping speed: 5.5~11CFM.
3,Warranty:1 year.
4,Minimum order:1 set
Scope of application:
Vacuum packaging, drying, distillation, concentration, loading and unloading, and attract, vacuum forming, etc
Advantages:
1.Many rotary vane design, high efficiency and energy saving
2.Air inlet non-return valve design, can prevent oil
3.The built-in oil mist filter, exhaust clean and no pollution
4.Motor and pump direct drive, small vibration, low noise
Product Description
1. High utmost vacuum rate, it can be less than 0.5mbar
2. High deflating speed
3. Low noise while working, lower than 67db
4. Strong capacity in deflating the vapor
5. Protecting environment; an oil fog clearer is set in the vacuum pump, and no oil fog in the exhaust air
6. Compact structure, scientific and reasonable design, and it is easy to install in the industry system
Attention:
Pump can be within the scope of 5 ~ 40 °C environment temperature and the inlet pressure under the condition of less than 1330 pa, allows continuous work for a long time.
Technical parameter:
Model | XD-020 | XD-025 | XD-040 | XD-063 | XD-100 | XD-160/202 | XD-250 |
Pumping speed(m³/h) | 20 | 25 | 40 | 63 | 100 | 160/202 | 250 |
ultimate pressure(Pa) | 200 | 50 | 10 | 10 | 10 | 10 | 10 |
Power(KW) | 0.75/0.9 | 0.75/0.9 | 1.5 | 2.2 | 3 | 4/5.5 | 7.5 |
Motor speed (r/min) | 2800 | 2800 | 1440 | 1440 | 1440 | 1440 | 1440 |
Oil Capacity (L) | 0.5 | 0.5 | 1 | 2 | 2 | 5 | 6.5 |
inlet/outlet diameter (in) | G1/2 | G1/2 | G1 1/4 | G1 1/4 | G1 1/4 | G2 | G2 |
Weight(Kg) | 20 | 23 | 45 | 56 | 70 | 125 | 200 |

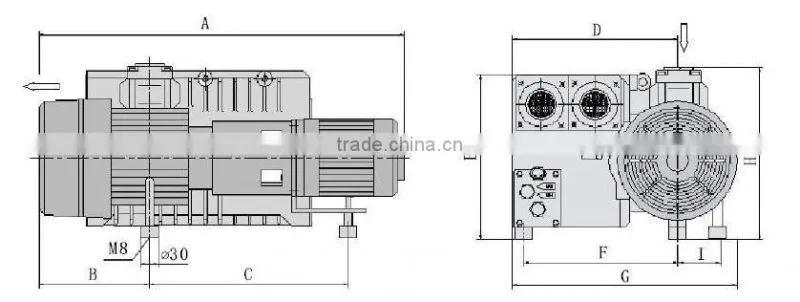

Model | A | B | C | D | E | F | G | H | I |
XD-020 | 410 | 70 | 220 | 215 | 195 | 135 | 240 | 180 | - |
XD-025 | 470 | 120 | 225 | 215 | 195 | 135 | 240 | 180 | - |
XD-040 | 650 | 150 | 290 | 195 | 270 | 175 | 300 | 280 | 70 |
XD-063 | 650 | 150 | 265 | 295 | 285 | 278 | 430 | 295 | - |
XD-100 | 720 | 180 | 295 | 295 | 285 | 278 | 430 | 295 | - |

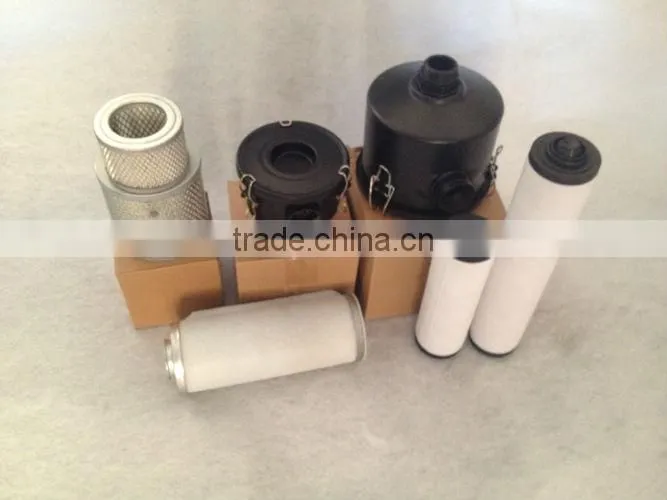

Frequently used Accessories:
Company information:
We produce parts of machinery equipment for the large enterprises at domestic and overseas. In addition, we manufacture non-standard equipment,vacuum pump,mini cultivator.Our company has all kinds of engineering and technical professionals engaged in research, development and manufacture. (We formulate plans according to different customers; provide technical process and professional service after-sale)
Certificate:
Q&A:
Trade information:
1. Q: What’s the MOQ (minimum order quantity)?
A: Goods in stock is for one piece. OEM products depends on the size of the product.
2. Q: What’s the best FOB price?
A: Our price is made as per your drawing specification as well as the purchasing quantity.
3. Q: What’s the lead time?
A: Normally, it takes around 45 days.
4. Q: Why the lead time is so long?
A: One gear part is made in around 15 machining processes. If every process takes 1 to 2 days, then it’s already at least 30 days. Not to say the forging and heat treatment time which take around 7 days min.
5. Q: What’s the payment term?
A: FOB Shanghai or Ningbo, paid by T/T. We will ask for down payment before production, and the balance paid off before shipment.Of course, we may also negotiate it.
6. Q: What kind of packing can you provide?
A: Tailor-made packaging method according to customer's requirement, otherwise, we will make the sea-worthy packing.
7. Q: Which countries have you exported?
A: Germany, Italy, Japan, USA, Japan, France, Indonesia, etc.
Service and quality information:
8. Q: Can you make as per custom drawing?
A: Yes, we can do that.
9. Q: If I don’t have drawing, what can you do for me?
A: If you don’t have drawing, but have the sample part, you may send us. We will check if we can make it or not.
10. Q: How do you make sure the quality of your products?
A: We will do a series of inspections, such as:
a. raw material inspection (includes chemical and physical mechanical characters inspection),
b. machining process dimensional inspection (includes: 1st pc inspection, self inspection, final inspection),
c. heat treatment result inspection,
d. gear tooth inspection (to know the achieved gear quality level),
e. magnetic particle inspection (to know if there’s any cracks in the gear).
We will provide you the reports 1 set for each batch/ shipment.
Contact us:
Factory have a special technology team ,welcome new and old customers send us drawings or samples to open new model,thanks!!
