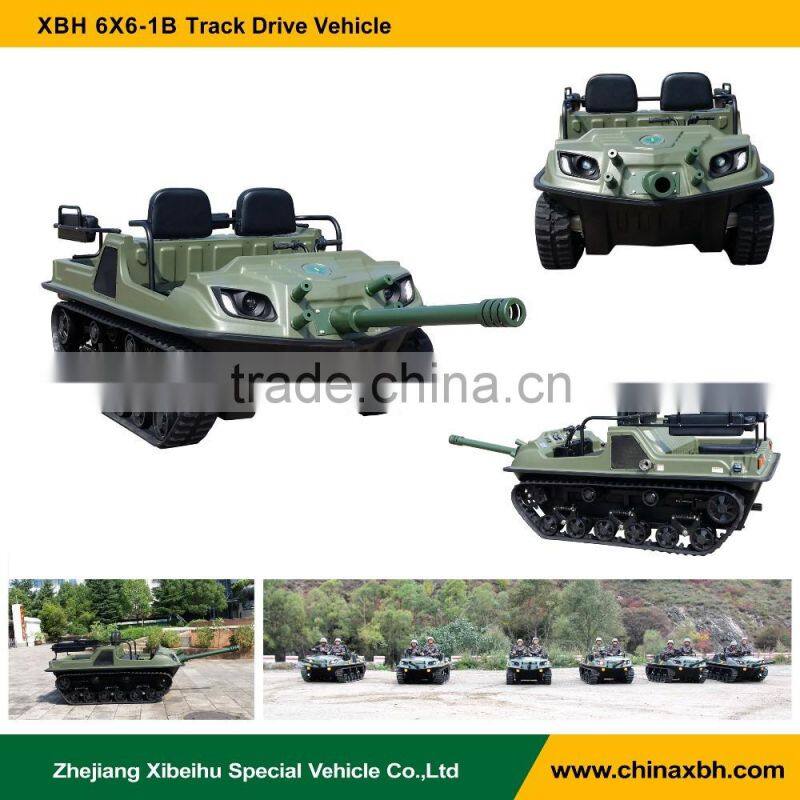

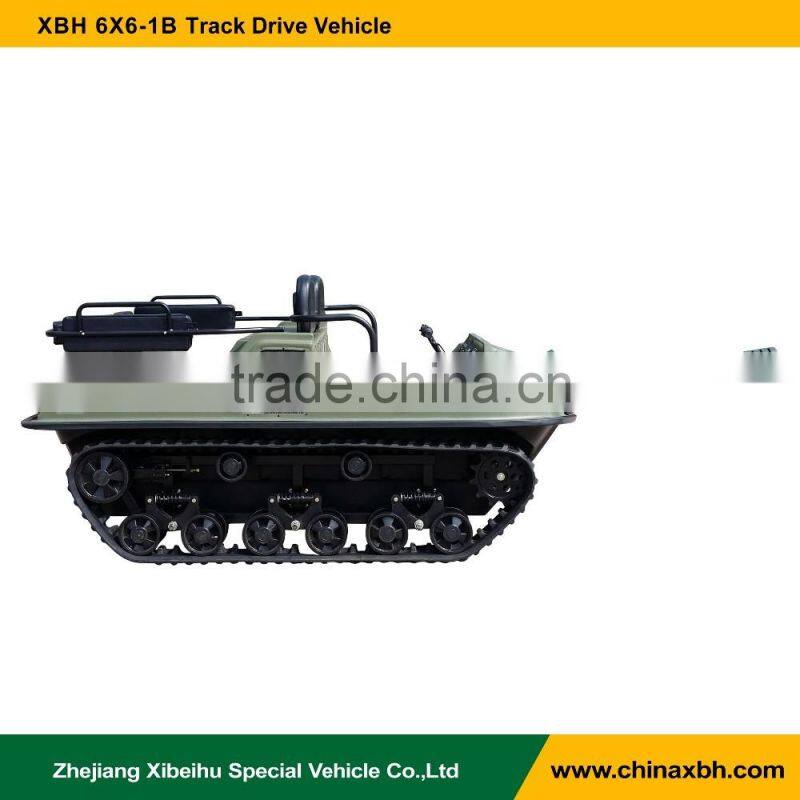

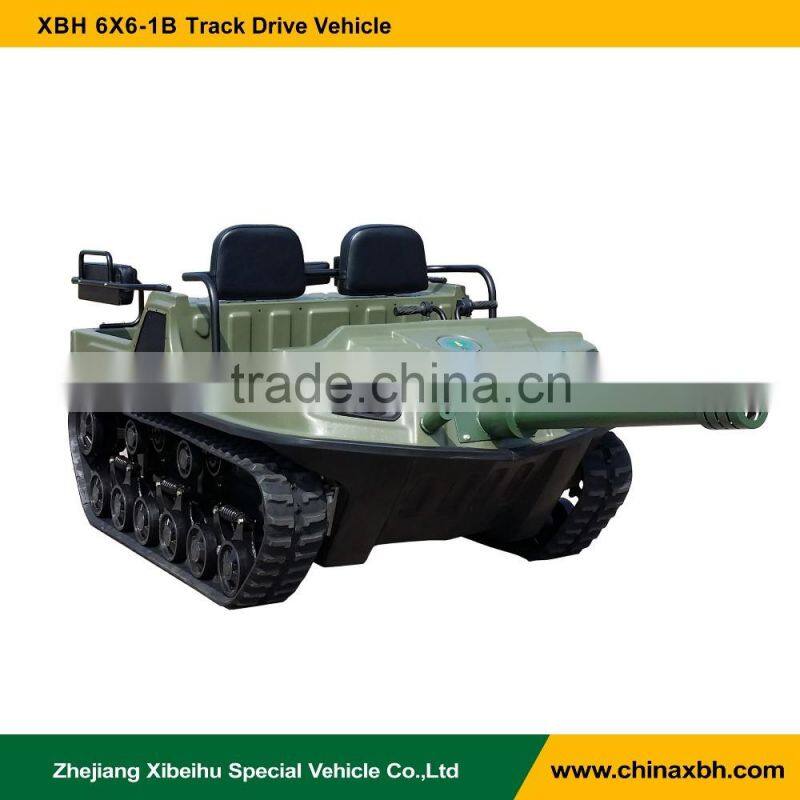

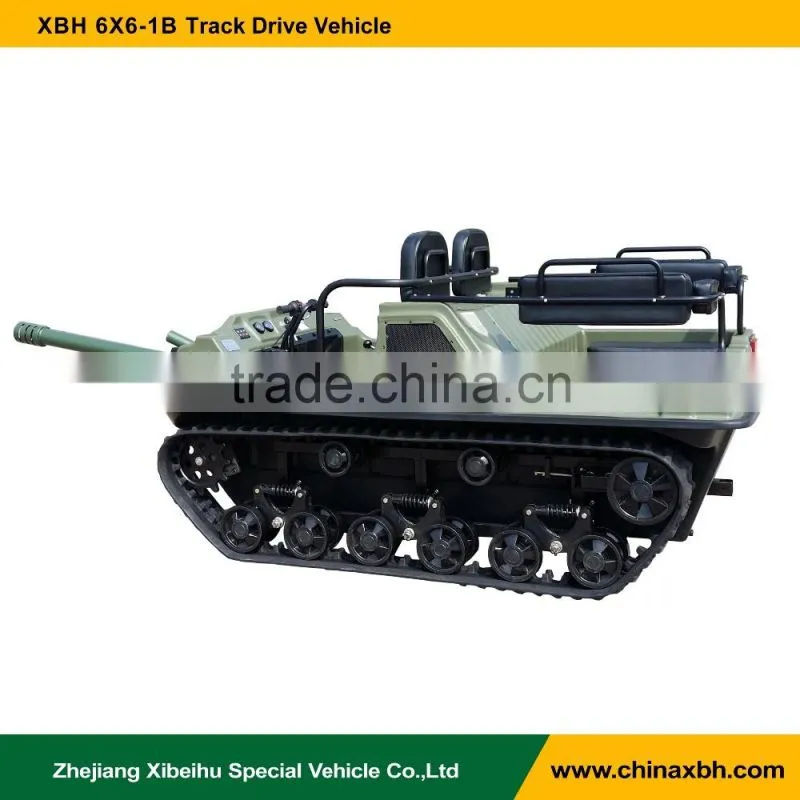

XBH 6X6-1B 6 Wheels Track Drive Vehicle 6 Wheels Atv

XBH 6X6-1B 6 Wheels Track Drive Vehicle 6 Wheels Atv thumbnail-1
XBH 6X6-1B 6 Wheels Track Drive Vehicle 6 Wheels Atv thumbnail-2
XBH 6X6-1B 6 Wheels Track Drive Vehicle 6 Wheels Atv thumbnail-3
XBH 6X6-1B 6 Wheels Track Drive Vehicle 6 Wheels Atv thumbnail-4
XBH 6X6-1B 6 Wheels Track Drive Vehicle 6 Wheels Atv photo-1
XBH 6X6-1B 6 Wheels Track Drive Vehicle 6 Wheels Atv photo-2
XBH 6X6-1B 6 Wheels Track Drive Vehicle 6 Wheels Atv photo-3
XBH 6X6-1B 6 Wheels Track Drive Vehicle 6 Wheels Atv photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer, Trading Company
Year Established:
2005
Factory Size:
10,000-30,000 square meters
Contact Supplier Request Quote Chat Now
Zhejiang Xibeihu Special Vehicle Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

XBH 6×6-1B Caterpillar Drive Vehicle Introduction:



Body Parameters:

Dimension

2670 (3730,Including Barrel) ×1600×1380mm

The Length of Track Contact with Ground

1480mm

Track Center Distance

1313mm

Minimum Ground Clearance

180mm

Complete Vehicle Kerb Mass

800kg

Rated Load

160kg(2 People)

Performance Parameters:

Start Mode

Key

Ignition Mode

EFI

Battery Specification

12V/60Ah

Drive Mode

Caterpillar Drive

Top Speed

≤25km/h

Minimum Turning Radius

1.6m

Maximum Climbing Angle

32 º

Approach Angle

45 º

Departure Angle

30 º

Wading Depth

0.50m

Brake Mode

Caliper Hydraulic Brake

Steering Mode

Brake Differential Steering

Track Specification

230×72×68

Transmission Mode

Belt and Chain Transmission

Dynamic Parameters:

Engine Model

SQRB2G06

Engine Type

Vertical 2-Cylinder, Water-cooling, 4-Stroke, Inline DOHC

Oil-supply Mode

MPI

Cylinder Diameter ×Stroke

2-72×72mm

  Displacement

586ml

Compression Ratio

9.5:1

Rated Power and Turning Speed

26kW(5500r/min)

Max. Torque and Turning Speed

52N·m(3000~3500r/min)

Idle Speed

1000±60r/min

Lubricating Mode

Pressure and Splash Lubrication

Cooling Mode

Forced Circulation and Antifreeze Coolant

Clutch System

CVT

Transmission Type

CVT+2 Forward Gears, Neutral, Reverse Gear

Fuel Type

Gasoline 93#

Oil Tank Capacity

38L

Others:

Optional Equipment: Bumper, Drain Equipment, Traction Ball Head, Safety Belt, Rear Foot Pedal, Winch, Foldable Windshield, Windshield Wiper, Anti-roll Rack, Top, Vehicle Cover, Alert Lamp, Four-way Overheating Prevention System, Heating System, Snow Plough etc.

Performance Characteristics: Caterpillar Drive, Braking Differential Steering, CVT, 32 Degree Climbing, 360 Degree Turning on the Ground, 1 Meter Wide Trenches Across, ±40 ℃ Temperature Work and Full-sealed High Strength Vehicle Body etc.

Certificate: CE certificate and National Motor Vehicle Products Quality Supervision and Inspection Center certificate.

Functionality: Rescue, Exploration, Hunting, Tourism, Entertainment etc.

Application Scope: All Terrains such as Swamp, Beach, Non-paved Road; Hills, Snow Land, Forest, Desert etc.





 XBH 6X6-1B 6 wheels Track Drive Vehicle 6 wheels atvXBH 6X6-1B 6 wheels Track Drive Vehicle 6 wheels atvXBH 6X6-1B 6 wheels Track Drive Vehicle 6 wheels atvXBH 6X6-1B 6 wheels Track Drive Vehicle 6 wheels atv
