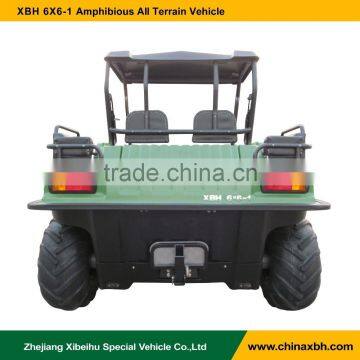

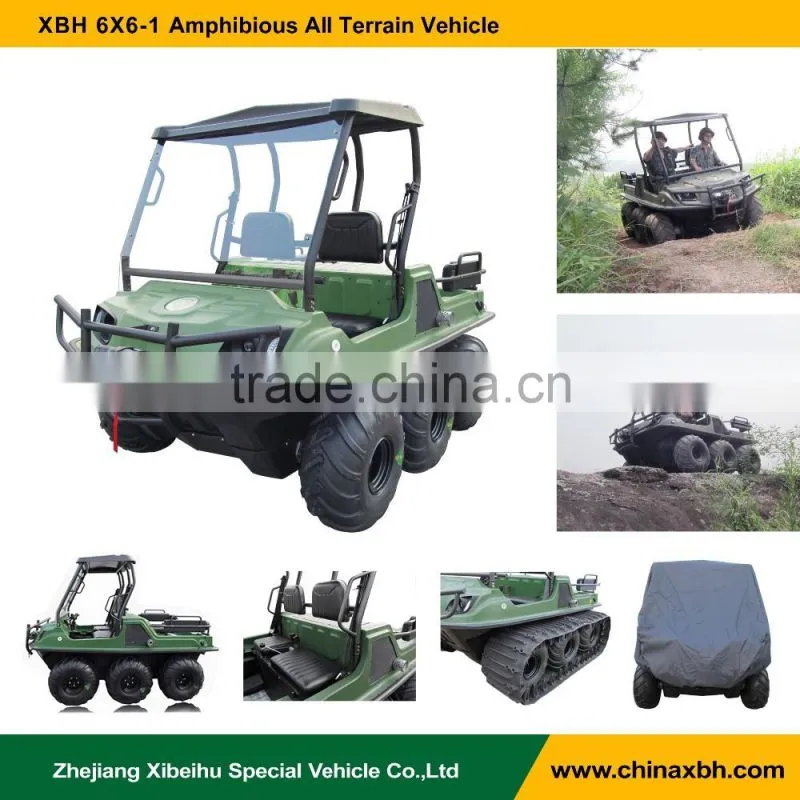

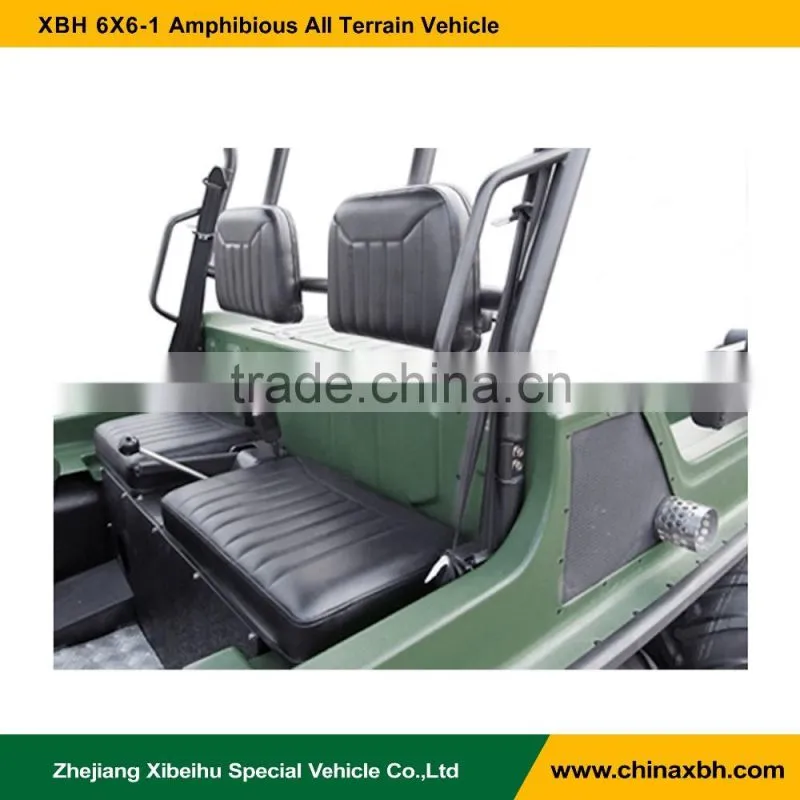

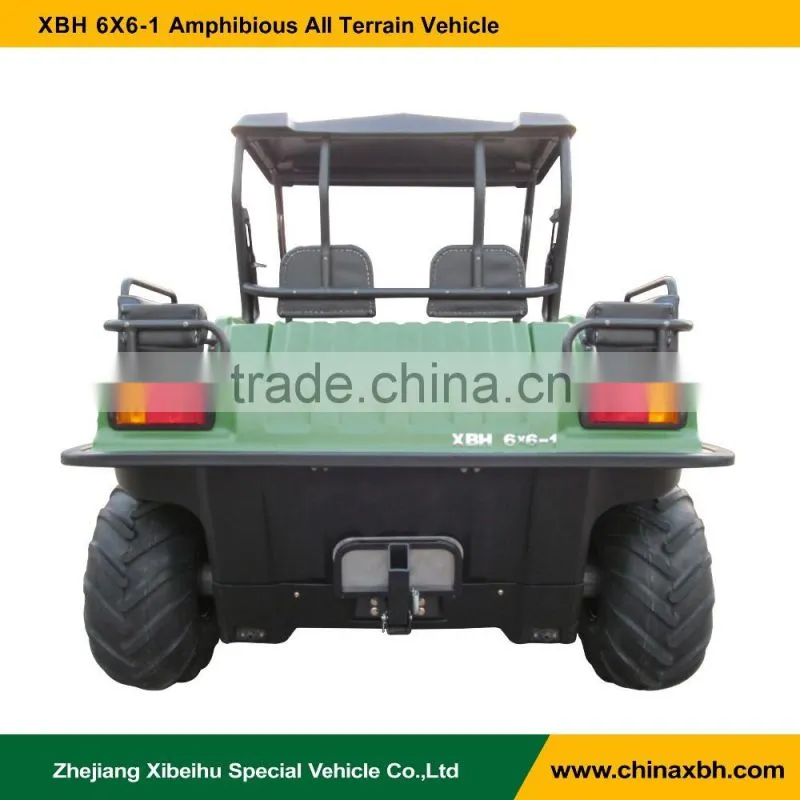

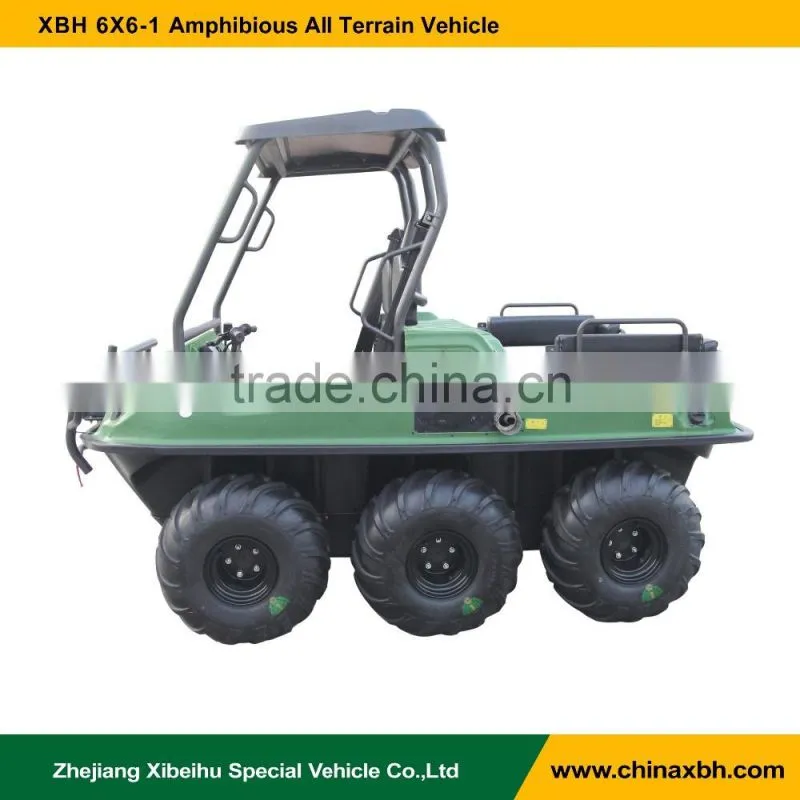

XBH 6x6 6 Wheeler 600cc Amphibious Atv

                             Type

Parameters

XBH 6×6-1

Body

Parameters

Dimension

2710×1720×1980mm

Vehicle Body

Highly Dense Polythene (HDPE)

Color

Upper body: Green, Black, Orange, Red

Under body: Black

Axle Span

730×730mm

Wheel Span

1420mm

Minimum Ground Clearance

214mm

Curb Weight

680kg

Rated Load

On land 300 kg (about 4 people) On water 225 kg(about 3 people)

Performance

Parameters

Start Mode

Key

Ignition Mode

EFI

Battery Specification

12V/60Ah

Drive Mode

On Land: All-wheel Drive

On Water: All-wheel Drive or Outboard Drive

Maximum Speed

On Land 45km/h

On Water 5 km/h(tyre stroke)

On Water 12km/h(15hp outboard engine)

Minimum Turning Radius

0.71m

Maximum Climbing Angle

32 degrees

Approach Angle

50 degrees

Departure Angle

46 degrees

Brake Mode

Caliper Hydraulic Brake

Steering Mode

Brake Differential Steering

Tyre Specification

25×12(11.5)-9 NHS

Tyre Pressure

5-7psi (34.5-48.3kPa)

With track 3-5psi(20.7-34.5kPa)

Transmission Mode

Belt and Chain Transmission

Dynamic Parameters

Engine Type

SQR272

Mode

Vertical 2-Cylinder, Water-cooling, 4-Stroke, Inline DOHC

Oil-supply Mode

MPI

Cylinder Diameter ×Stroke

72×72mm

Displacement

586ml

Compression Ratio

9.5:1

Rated Power and Turning Speed

26kW 5500r/min

Maximum Torque and Turning Speed

52N·m 3000-3500r/min

Idle Speed

1000±60r/min

Minimum Fuel Consumption

265g/kW·h

Fuel Type

93#

Oil Tank Capacity

38L

Engine Oil Capacity

2L

Engine Oil Type

SAE 10W/30 API SF

Lubricating Mode

Pressure and Splash Lubrication

Cooling Mode

Forced circulation and Antifreeze Coolant

Clutch System

CVT

Transmission Type

CVT +2 Forward Gears, Neutral, Reverse Gear

Transmission Ratio

Low Gear: 5.148

High Gear: 3.350

Back Gear: 5.445

Gear Oil Capacity

Gearbox: 1.1-1.2L

Gear Oil Type

GL-4 75W-90

Optional Equipment

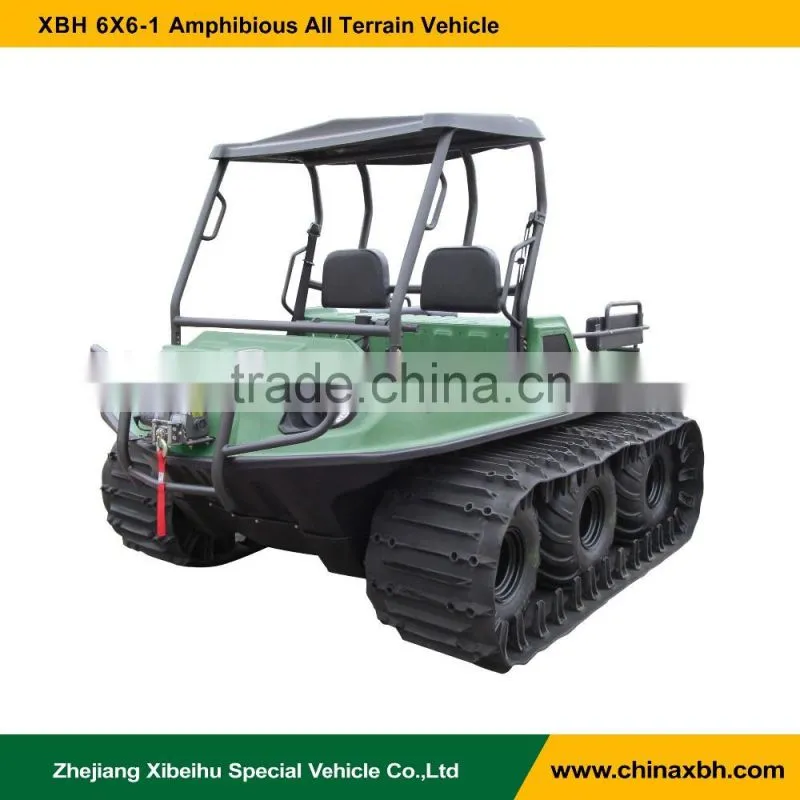

Bumper, Drain Equipment, Traction Ball Head, Safety Belt, Rear Foot Pedal, Winch, Outboard Motor, Plastic Track, Rubber Track, Metal Track, Foldable Windshield, Windshield Wiper, Anti-roll Rack, Top, Vehicle Cover, Small Alert Lamp, Long Alert Lamp, Four-way Overheating Prevention System, Heating System, Snow Plough, Breakwater Board……
