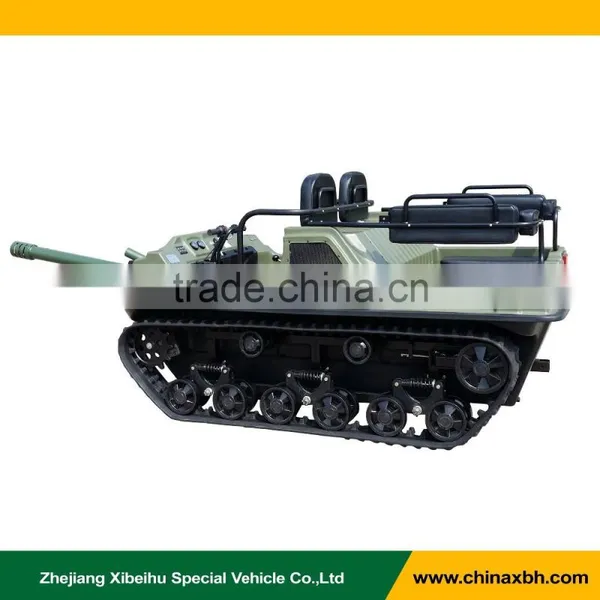

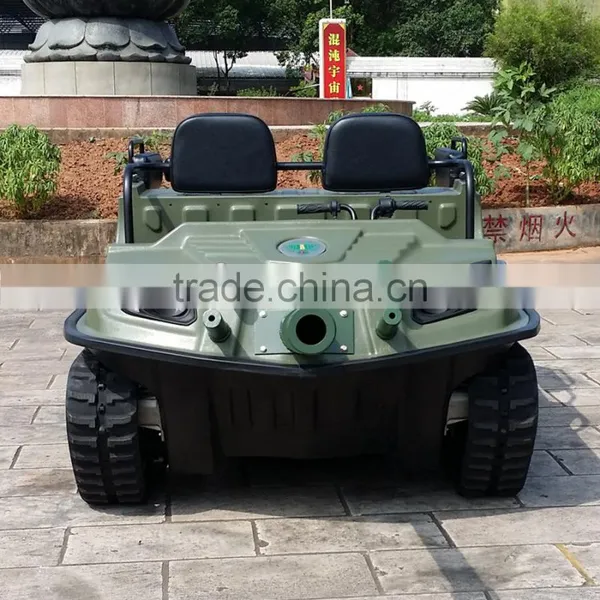

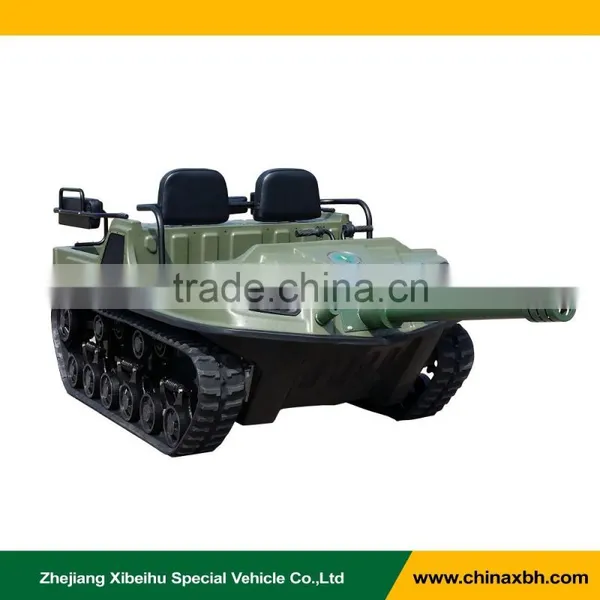

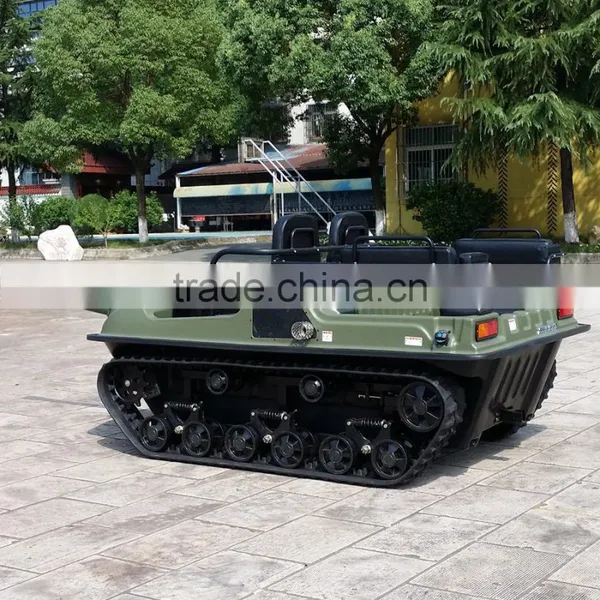

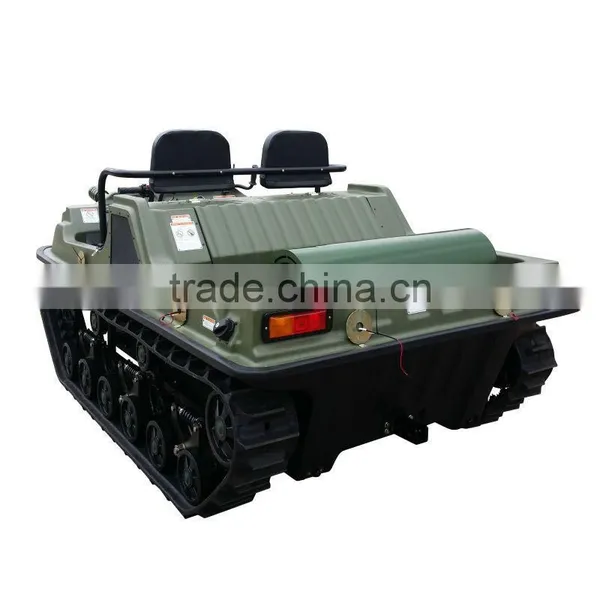

XBH 6X6-1B Track Drive Vehicle 6 wheels anfibio atv gasoline climbing vehicle ATV
- 100 Unit / Units per Month
- Ningbo or Shanghai
Product Details
Fuel: | Gas / Diesel | Engine Type: | 4 Stroke | ||
Transmission Type: | Other, Automatic, CVT+2 Forward Gears, Neutral, Reverse Gear | Transmission System: | Chain Drive | Certification: | Other, CE,ISO9001,CCN |
Brand Name: | XiBeiHu | Place of Origin: | Zhejiang, China | Model Number: | XBH 6X6-1B |
Product Description
XBH 6X6-1B Track Drive Vehicle 6 wheels anfibio atv gasoline climbing vehicle ATV

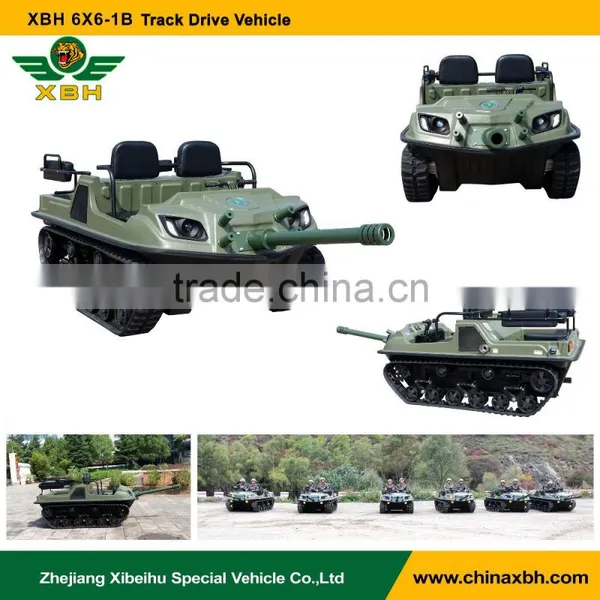

Model.XBH 6×6-1B Track Drive Vehicle:
Body Parameters: | |
Dimension | 2670 (3730,Including Barrel) ×1600×1380mm |
The Length of Track Contact with Ground | 1480mm |
Track Center Distance | 1313mm |
Minimum Ground Clearance | 180mm |
Complete Vehicle Kerb Mass | 800kg |
Rated Load | 160kg(2 People) |
Performance Parameters: | |
Start Mode | Key |
Ignition Mode | EFI |
Battery Specification | 12V/60Ah |
Drive Mode | Caterpillar Drive |
Top Speed | ≤25km/h |
Minimum Turning Radius | 1.6m |
Maximum Climbing Angle | 32 º |
Approach Angle | 45 º |
Departure Angle | 30 º |
Wading Depth | 0.50m |
Brake Mode | Caliper Hydraulic Brake |
Steering Mode | Brake Differential Steering |
Track Specification | 230×72×68 |
Transmission Mode | Belt and Chain Transmission |
Dynamic Parameters: | |
Engine Model | SQRB2G06 |
Engine Type | Vertical 2-Cylinder, Water-cooling, 4-Stroke, Inline DOHC |
Oil-supply Mode | MPI |
Cylinder Diameter ×Stroke | 2-72×72mm |
Displacement | 586ml |
Compression Ratio | 9.5:1 |
Rated Power and Turning Speed | 26kW(5500r/min) |
Max. Torque and Turning Speed | 52N·m(3000~3500r/min) |
Idle Speed | 1000±60r/min |
Lubricating Mode | Pressure and Splash Lubrication |
Cooling Mode | Forced Circulation and Antifreeze Coolant |
Clutch System | CVT |
Transmission Type | CVT+2 Forward Gears, Neutral, Reverse Gear |
Fuel Type | |
Oil Tank Capacity | 38L |
Others: | |
Optional Equipment: Bumper, Drain Equipment, Traction Ball Head, Safety Belt, Rear Foot Pedal, Winch, Foldable Windshield, Windshield Wiper, Anti-roll Rack, Top, Vehicle Cover, Alert Lamp, Four-way Overheating Prevention System, Heating System, Snow Plough etc. | |
Performance Characteristics: Caterpillar Drive, Braking Differential Steering, CVT, 32 Degree Climbing, 360 Degree Turning on the Ground, 1 Meter Wide Trenches Across, ±40 ℃ Temperature Work and Full-sealed High Strength Vehicle Body etc. | |
Certificate: CE certificate and National Motor Vehicle Products Quality Supervision and Inspection Center certificate. | |
Functionality: Rescue, Exploration, Hunting, Tourism, Entertainment etc. | |
Application Scope: All Terrains such as Swamp, Beach, Non-paved Road; Hills, Snow Land, Forest, Desert etc. |
In 2005, Yiwu Xi Beihu Special Vehicle Co., Ltd., which is specially engaged in the development, production and sales of amphibious special vehicles, is a high-tech enterprise invested by Jia's Industrial Co., Ltd. with a total investment of 200 million yuan. The company has a dozens of senior technical staff of the product development team and the international advanced production equipment, and through the Chinese People's Liberation Army Armored Engineering Institute of cooperation to ensure that the company's research and development capabilities and technical level.
After years of research, the company has successfully developed a new generation of complete intellectual property rights of all terrain vehicle --- "Xi Beihu" amphibious special vehicles. The successful development of the car, to fill the domestic amphibious all terrain operation vehicle blank, breaking the domestic automobile industry single use limit.
The performance test and practical application show that "Xi Beihu" in the water, hills, swamps, snow, forests and other bad terrain in the free travel, and can be ± 40 ℃ in the ultra-conventional temperature environment for continuous Operations, the key technical indicators to achieve and exceed the international advanced level.
1.Q:Are your company a manufacturer or trading company?
A:We are a manufacturer with 13 years .And 10years of exporting experience
2.Q:Where is your factory? How can I get there?
A:Our factory is located in Yiwu City, Zhejiang Province.Which closed to Yiwu Airport.We are highly welcome your visit of our factory.And we can picked you up from the Yiwu airport.
3.Q:Can your products be customized?
A: Almost all of our products can be customized, including the sizes, color, logo, package and so on. OEM is acceptable.
What's your Product MOQ?
A:For whole set car 3units/1X20GP container,MOQ 3units.
4. Q: What is the advantages of your products?
A: High quality and copetitive price. Xibeihu Pay attention to production quality control from the beginning to the end . Each product will be fully assembled and carefully tested before it's packed for shipment.
5. Q: What makes your company a reliable supplier?
A: Many years of experience in manufacturing and exporting.Strict quality control, the QC strictly carries on a precise process to ensure the best quality. We have the most professional overseas sales and customer service team. In a word, we offer you not only the products, but also the professional service.
