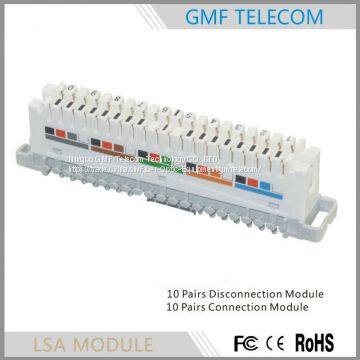

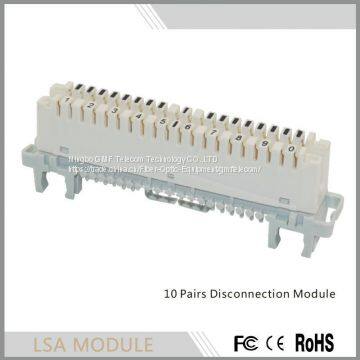

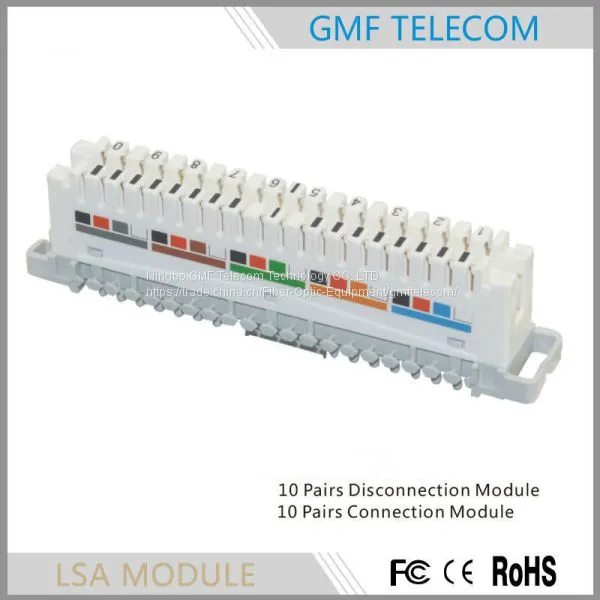

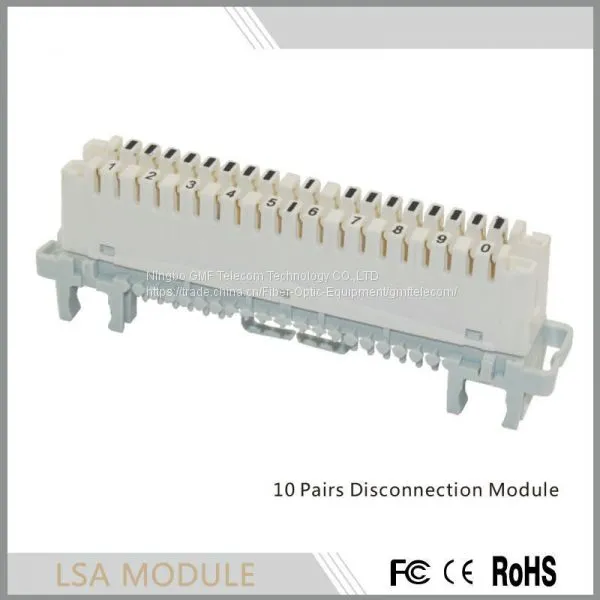

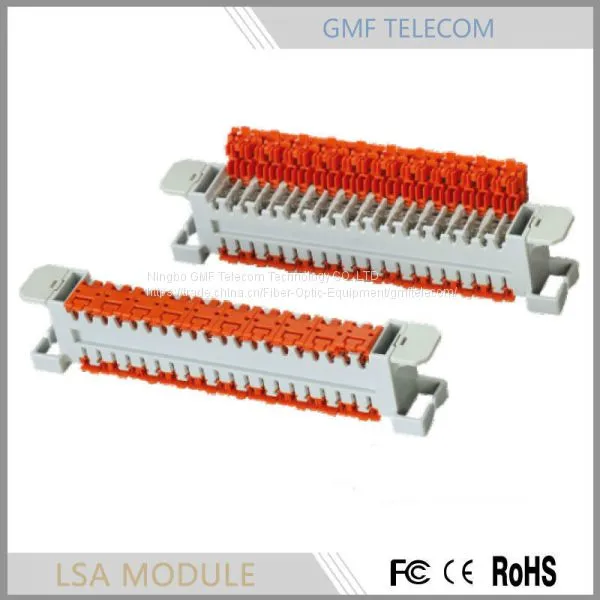

Help CenterChinese Supplier LSA Module Disconnection Module Krone Module 10 Pair Copper Conductor
Related Products
-
2 Core Fiber Optic Distribution Box Terminal Box Splitter Box High Quality Plastic BoxNegotiableMOQ: 1 Piece -
Chinese Supplier Distributor Wanted Fiber Optic Pigtail Patch Cord Cable AccessoriesNegotiableMOQ: 1 Piece
-
5pairs LSA Disconnection Module/krone ModuleUS$ 0.5 - 2MOQ: 2000 Pieces
-
10 Pair Krone Earth Bar for LSA Disconnection ModuleUS$ 0.3 - 0.5MOQ: 2000 Pieces
-
Chinese Supplier LSA Module Disconnection Module Krone Module 10 Pair Copper ConductorNegotiableMOQ: 1 Piece
Specifications
Electrical values
Insulation resistance: >50 GΩ @ 500 V
Contact resistance: 1 mΩ
Safety classification (EN 60950)
Transient voltage: 2.5k V
Operation voltage for basic insulation: 210VDC TNV
Pollution severity: II
Current-carrying capacity: 2 A
Impulse current: 5 kA (8/2µs)
Conductor diameter/outer diameter of connectable wires
Single solid wire per contact: 0.35mm/0.68mm to 0.9mm/1.5mm (AWG 26 to AWG 20)
Stranded wires (7 tin-coated copper strands): 0.12mm to 0.32mm/up to 2.1mm (depending on insulation type) (AWG 28 to AWG 20)
Overall diameter of connectable wires 0.68mm to 1.6mm (solid insulation)
Properties
Connection frequency: 200 times
Plug-in cycles: 250
Temperature
Storage According to EN 60721-3-1: (-40° C to +90° C)
Transport According to EN 60721-3-2: (-40° C to +90° C)
Operation According to EN 60721-3-3: (-5° C to +60° C)
Relative humidity: 95%; no water condensation
Plastics: PBT/ABS/PC
Plastics flammability class: UL94V-0
Halogen free according to: RoHS, European Directive 2002/96/EG
Contact: Special brass, silver-plated
