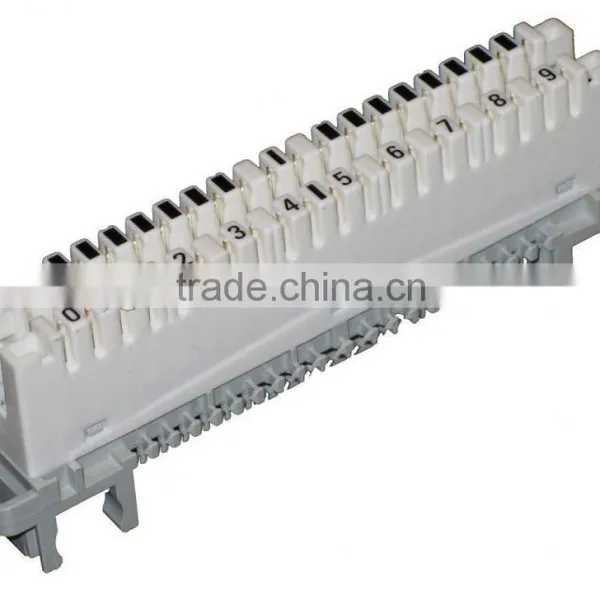

LSA 10 pair krone Disconnection Module

Specifications

LSA 10 pair krone Disconnection Module
1..ABS & PBT material;
2.Superior high speed data and voice cross connect modules





Application:



1.Superior high speed data and voice cross connect modules. Contact pin: phosphor bronze with silver-plated Available in 10 pair disconnect versions.

2.These modules enable high speed LAN and WAN systems maximum headroom in transmission performance.

3.HIGHBAND utilises the silver plated LSA Plus contact principle. This is proven technology which has become the 'industry  standard' in over 60 countries.

4.The gas tight contacts ensure a  reliable and long lasting connection.

5.The module can be either patched, jumpered and used in a patch by exception configuration.

6.Special design with cable management and chassis for Easy installation.



Technical index:



Item:	Specification:
Product name:	10 pair Lsa Disconnection Module For Krone type
Application	High speed LAN and WAN systems
Contact pin	Phosphor bronze with silver-plated
Insulation diameter range (PE, PVC)	0.70 - 1.40 mm
Wire diameter range	0.40 - 0.65 mm (26-22 AWG) Wire
Insulation resistance	More than 500,000 M at 500 VDC
Number of patching cycles	750
Environment for use	Indoors or in dry enclosure rated IP54 or greater
Operating temperature range	-40ºC to +80ºC
Maximum relative humidity	93% non-condensing



Technical size:

Specification	L (mm)	W (mm)	H (mm)
5 pairs	75	21.5	40.5
8 pairs	104	21.5	40.5
10 pairs	122.5	21.5	40.5
