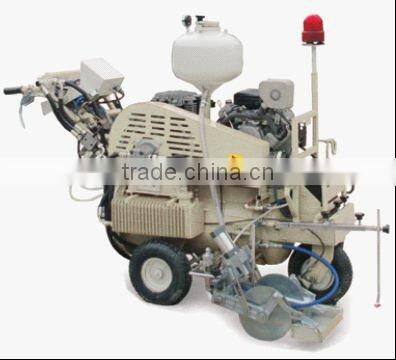

Driving Type Thermoplastic (Convex) Road Marking Machine

Name: Driving Type Thermoplastic (Convex) Road Marking Machine
Brand: SHANGLLONG
SKU: 141684848
Availability: InStock

Jinan Shanglong International Trade Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

SHANGLLONG

Model Number:

FCK8

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name SHANGLLONG

Model Number FCK8

Specifications

Marking equipment Pneumatic convex line marking shoe,standard configuration 150mm
Control system Digital intelligent line type

Main Parameter:
Engine	Original 25Hp gasoline engine(18.4KW)
Paint tank capacity	350L
Glass beads bin	55L
Air compressor	2m³/min
Spay gun	Equipped with Double pneumatic low pressure atomized air spray guns
Spraying width	100-450mm(adjustable)
Control system	Digital intelligent control system
Applied paint	Cold solvent paint, water-based paint and two-component paint
Optional system	Guide warning screen,pre-marking system, engine type and brand ,sunshine shelter, trailer and two-component swing, screeding marking type
Dimensions(LWH),Weight	3650x1840x2230mm,1500kg
Main Parameter:
Engine	Original 16Hp gasoline engine
Driving system	Oil pressurized hydraulic motor
Paint tank capacity	90 L
Glass beads bin	18L
Air compressor	0.8m³/min
Spay gun	Equipped with one pneumatic low pressure atomized air spray gun
Spraying width	100-200mm(adjustable)
Control system	Digital intelligent control system
Applied paint	Cold solvent paint, water-based paint
Optional system	Standing trailer vehicle, warning lights, lightening lamp
Dimensions(LWH),Weight	2050x1165x1440mm,350kg

Main Parameter:
Engine	Original 16Hp gasoline engine
Driving system	Oil pressurized hydraulic motor
Paint tank capacity	90 L
Glass beads bin	18L
Air compressor	0.8m³/min
Spay gun	Equipped with one pneumatic low pressure atomized air spray gun
Spraying width	100-200mm(adjustable)
Control system	Digital intelligent control system
Applied paint	Cold solvent paint, water-based paint
Optional system	Standing trailer vehicle, warning lights, lightening lamp
Dimensions(LWH),Weight	2050x1165x1440mm,350kg
