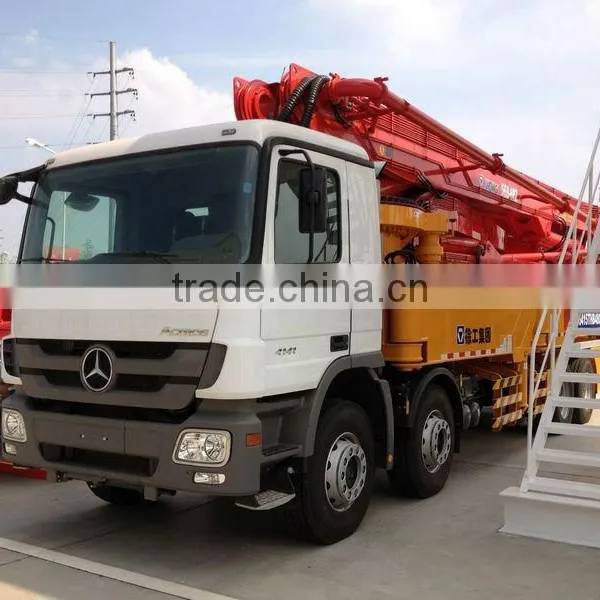

Truck-mounted Concrete Boom Pump

Name: Truck-mounted Concrete Boom Pump
Brand: xcmg
SKU: 141684856
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

xcmg

Model Number:

HB56A Truck-Mounted Concrete Boom Pump

Jinan Shanglong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name xcmg

Model Number HB56A Truck-Mounted Concrete Boom Pump

Specifications

Truck-mounted concrete boom pump afford to the transmission of the concrete in construction industry.

Main Parameters during driving:
CATEGORY	ITEM	UNIT	PARAMETER
Chassis	Chassis Type		actros4141
	Manufacturer		original benz
	Maximum Speed	Km/h	85
	Maximum Gradeability	%	53.1
	Minimum Turning Diameter	m	23.8
	Braking Distance	m	10
	Wheelbase	mm	1700+4600+1350
	Thread(front/rear)	mm	2054/1804
	Approach/departure Angle	°	22/10
	Minimum Ground Clearance	mm	240
	Tire Specification		315/80R22.5
Engine	Model		6WF1D
	Output Power	kw(r/min)	287/1800
	Maximum Torque	N·m(r/min)	1863/1100
	Displacement	L	14.256
	Emission Standard		National III
Others	Dimensions	mm	12800x2500x3995
	The Whole Weight	kg	41000
	Fuel Tank Capacity	L	400
	Hundred Kilometers	L/100km	40

Main Parameters during working:
CATEGORY	ITEM		UNIT	PARAMETER
Pumping System	Theoretical output(High/Low)		m3/h	90/150
	Delivery pressure(High/Low)		MPa	13/8
	Theoretical delivery cycles(High/Low)
	Transport cylinder inner diameter*Travel		mm	φ260×2200
	Max. aggregate diameter		mm	40
	Filling height		mm	1570
	Concrete Slump		cm	12-23
	High and low voltage switching mode		automatic	automatic
Placing Boom	Max. reach height		m	55.6
	Max. reach depth		m	39.2
	Turning radius		m	50.6
	Slewing angle		.	±270
	1st section unfolding angle		.	90
	2nd section unfolding angle		.	180
	3rd section unfolding angle		.	180
	4th section unfolding angle		.	240
	5th section unfolding angle		.	240
	6th section unfolding angle		.	90
	Outrigger Span	Longitudinal	mm	10680
		Front Lateral	mm	9300
		Rear Lateral	mm	11670
	Transfer Tube			S-valve
	Lubrication			Automatic
Others	Control Type			Manual/remote control
	Water tank capacity		L	650
	Max. water pump pressure		MPa	2
