Specifications
tow truck for sale1.rated towing weight:7.3T
2.Maxlifting weight:1.5T
3.Maxlifting weight of full extension:8T

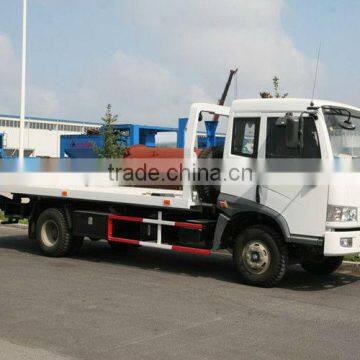

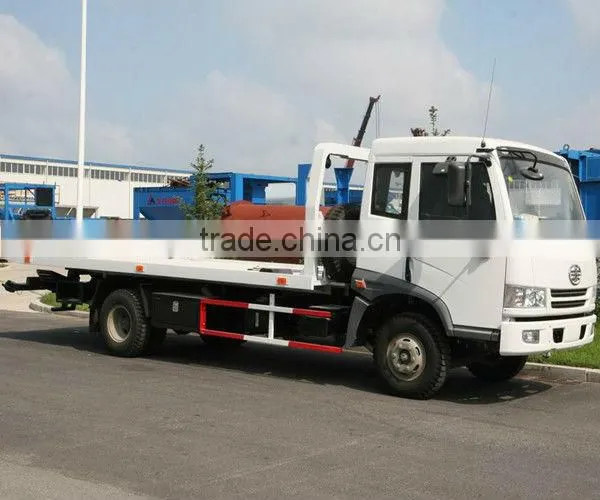

KFM5084TQZ06P-SQZ1503PC KaiFan Light-duty P Series (FAW) Tow Truck For Sale
Working Condition:
1.Altitude: 0-4500m
2.Temperature: -35°C--+45°C
3.Relative humidity: 80%
4.Wind force: ≤8degree
Working Range :
KFM5084TQZ06P Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind.
Main Parameters:
Items |
Unit |
Value |
|
Boom Structure |
Rated towing weight |
kg |
8400 |
Max. Lifting weight |
kg |
1500 |
|
Max. Lifting weight of full extending boom |
kg |
800 |
|
Effective length of boom |
mm |
1630 |
|
Extension traveling of boom |
mm |
1200 |
|
Elevation of boom (upper/ lower) |
° |
7~-10 |
|
Platform Structure |
Min. Elevation of full extending platform |
° |
11 |
Max. Loading of platform |
kg |
3000 |
|
External dimension of platform (length×width×height) |
mm |
5600×2200×57 |
|
Ground clearance of cage floor |
mm |
1156 |
|
Max. Pulling power of winch |
kg |
4000 |
|
Dia. Of steel cable |
mm |
10 |
|
Length of steel cable |
m |
25 |
|
Min. Speed of steel cable |
m/min |
4.5 |
|
|
Vehicle Parameters |
External dimension |
mm |
8509×2280×2790 |
Chassis model |
|
CA1083P9K2L2E |
|
Drive |
|
4×2 |
|
Axle base |
mm |
4250 |
|
The whole weight of empty load |
kg |
5675 |
|
Load of front axle of empty load |
kg |
2505 |
|
Load of rear axle of empty load |
kg |
3170 |
|
The whole weight of full load |
kg |
8495 |
|
Load of front axle of full load |
kg |
2995 |
|
Load of rear axle of full load |
kg |
5500 |
|
Wheel base (front/rear axle) |
mm |
1810/1740 |
|
Front suspension |
mm |
1330 |
|
Rear suspension |
mm |
2480 |
|
Approach angle |
º |
18 |
|
Departure angle |
º |
11 |
|
Max. Speed |
km/h |
99 |
|
Max. Grade ability |
% |
≥31 |
|
Min. Turning diameter |
m |
≤17 |
|
Min. Ground clearance |
mm |
215 |
|
Engine model |
- |
CA4DF3-13E3 |
|
Engine emission |
ml |
4750 |
|
Rated power |
kw/r/min |
96/2500 |
|
Max. Torque |
n·m/r/min |
430/1500 |
|
Fuel type |
|
Diesel |
|
Standard of emission |
|
EN III |
|
Tire size |
|
8.25-16(optional7.50-16,7.50R16,8.25R16) |
|
Persons |
|
3 |
|
Optional Engine |
Engine model(1) |
|
CA4DF3-14E3F |
Rated power |
kw |
103 |
|
Engine emission |
ml |
4752 |
|
Engine model(2) |
|
BF4M2012-13E3 |
|
Rated power |
kw |
96 |
|
Engine emission |
ml |
4040 |
|
If there is any question, please contact me at any time!
Name: Haitao Yan
Tel: +86 -15254123683
Skype: ady958958
