Help CenterKaiFan Middle-duty H Series (HOWO) Road Wrecker
Related Products
Specifications
road wrecker:1.rated towing weight:32T
2.Maxlifting weight:12.435T
3.Maxlifting weight of full extension:4t

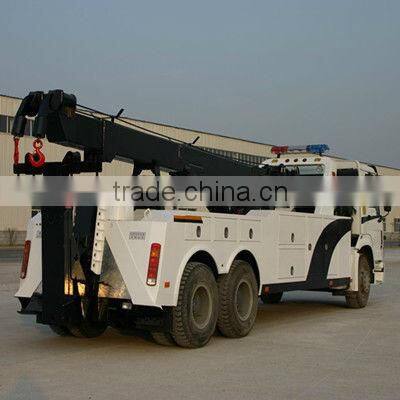

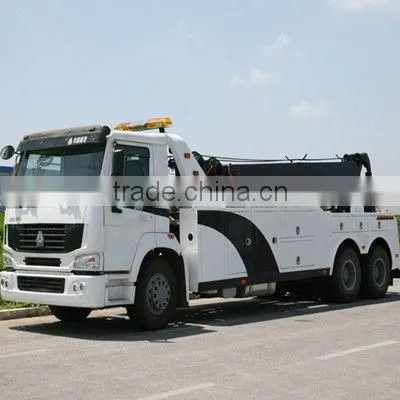

KFM5322TQZ08H KaiFan Middle-duty H Series (HOWO) Road Wrecker
Working Condition:
1.Altitude: 0-4500m
2.Temperature: -35°C--+45°C
3.Relative humidity: 80%
4.Wind force: ≤8degree
Working Range :
KFM5322TQZ08H Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind.
Working Parameters:
Items |
Unit |
Value |
|
Lifting Structure |
Lifting weight |
kg |
7500 |
Max. Lifting weight |
kg |
12435 |
|
Max. Lifting weight of original place |
g |
14000 |
|
Max. Lifting weight of full extension boom |
kg |
4000 |
|
Rated towing weight |
kg |
32000 |
|
Max. Designed towing weight |
kg |
60000 |
|
Effective length of boom |
mm |
3415 |
|
Extension traveling of boom |
mm |
1700 |
|
Folding angle of boom |
|
90 |
|
Under lift Structure |
Max. Rated hanging weight |
kg |
14000 |
The height from hook to the ground |
mm |
9430 |
|
Extension traveling of lifting boom |
mm |
3045 |
|
Turning angle |
|
360 |
|
Numbers of winch |
piece |
2 |
|
Rated pulling power of winch |
kg |
10000*2 |
|
Dia. Of steel cable |
mm |
18 |
|
Length of steel cable |
m |
40 |
|
Min. Speed of steel cable |
m/min |
7 |
|
Rotation angle |
|
54 |
|
|
Vehicle Parameters |
External dimension |
mm |
10410*2500*3185 |
Chassis model |
|
ZZ1257M5847C |
|
Drive |
|
6*4 |
|
Axle base |
mm |
5825+1350 |
|
The whole weight of empty load |
kg |
19435 |
|
Load of front axle of empty load |
kg |
7205 |
|
Load of rear axle of empty load |
kg |
12230 |
|
The whole weight of full load |
kg |
32000 |
|
Load of front axle of full load |
kg |
7000 |
|
Load of rear axle of full load |
kg |
25000= |
|
Wheel base (front/rear axle) |
mm |
2022/1830 |
|
Front suspension |
mm |
1500 |
|
Rear suspension |
mm |
1205 |
|
Approach angle |
|
16 |
|
Departure angle |
|
23 |
|
Min. Ground clearance |
mm |
260 |
|
Min. Turning diameter |
m |
<=24 |
|
Grade ability |
|
>=30 |
|
Max. Speed |
km/h |
90 |
|
Engine model |
- |
WD615.93E |
|
Engine emission |
L |
9.726 |
|
Rated power |
kw/r/min |
247/2200 |
|
Max. Torque |
n·m/r/min |
1350/1100-1600 |
|
Fuel type |
|
Diesel |
|
Standard of emission |
|
EN III |
|
Tire size |
|
11.00-20,11.00R20 12.00-20,12.00R20 |
|
Persons |
|
2 |
|
