Specifications
wrecker tow trucks for sale1.rated towing weight:7.3T
2.Maxlifting weight:1.5T
3.Maxlifting weight of full extension:8T

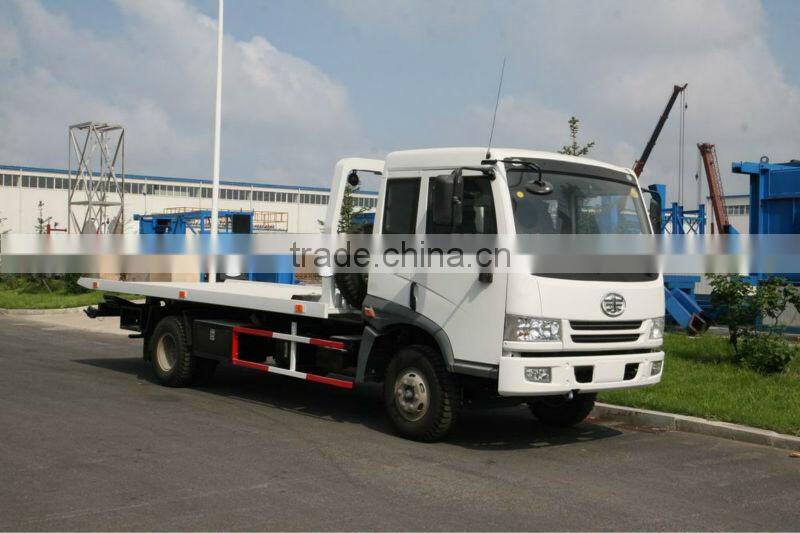

KFM5084TQZ06P-SQZ1503PC KaiFan Light-duty P Series (FAW) Wrecker Tow Trucks For Sale
Working Condition:
1.Altitude: 0-4500m
2.Temperature: -35°C--+45°C
3.Relative humidity: 80%
4.Wind force: ≤8degree
Working Range :
KFM5084TQZ06P Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind.
Main Parameters:
Items | Unit | Value | |
Boom Structure | Rated towing weight | kg | 8400 |
Max. Lifting weight | kg | 1500 | |
Max. Lifting weight of full extending boom | kg | 800 | |
Effective length of boom | mm | 1630 | |
Extension traveling of boom | mm | 1200 | |
Elevation of boom (upper/ lower) | ° | 7~-10 | |
Platform Structure | Min. Elevation of full extending platform | ° | 11 |
Max. Loading of platform | kg | 3000 | |
External dimension of platform (length×width×height) | mm | 5600×2200×57 | |
Ground clearance of cage floor | mm | 1156 | |
Max. Pulling power of winch | kg | 4000 | |
Dia. Of steel cable | mm | 10 | |
Length of steel cable | m | 25 | |
Min. Speed of steel cable | m/min | 4.5 | |
Vehicle Parameters | External dimension | mm | 8509×2280×2790 |
Chassis model |
| CA1083P9K2L2E | |
Drive |
| 4×2 | |
Axle base | mm | 4250 | |
The whole weight of empty load | kg | 5675 | |
Load of front axle of empty load | kg | 2505 | |
Load of rear axle of empty load | kg | 3170 | |
The whole weight of full load | kg | 8495 | |
Load of front axle of full load | kg | 2995 | |
Load of rear axle of full load | kg | 5500 | |
Wheel base (front/rear axle) | mm | 1810/1740 | |
Front suspension | mm | 1330 | |
Rear suspension | mm | 2480 | |
Approach angle | º | 18 | |
Departure angle | º | 11 | |
Max. Speed | km/h | 99 | |
Max. Grade ability | % | ≥31 | |
Min. Turning diameter | m | ≤17 | |
Min. Ground clearance | mm | 215 | |
Engine model | - | CA4DF3-13E3 | |
Engine emission | ml | 4750 | |
Rated power | kw/r/min | 96/2500 | |
Max. Torque | n·m/r/min | 430/1500 | |
Fuel type |
| Diesel | |
Standard of emission |
| EN III | |
Tire size |
| 8.25-16(optional7.50-16,7.50R16,8.25R16) | |
Persons |
| 3 | |
Optional Engine | Engine model(1) |
| CA4DF3-14E3F |
Rated power | kw | 103 | |
Engine emission | ml | 4752 | |
Engine model(2) |
| BF4M2012-13E3 | |
Rated power | kw | 96 | |
Engine emission | ml | 4040 | |
