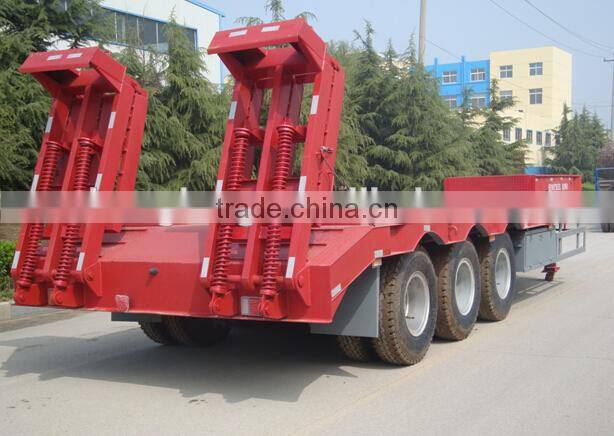

60T Three Axle Low-plate Semi-trailer For Sale
A semi-trailer, an articulated lorry, refers to a trailer having wheels at the back but supported at the front by a towing vehicle. Its centre of gravity is in the front of axles. It also comes with a coupling device passing the horizontal or vertical forces to towing vehicle.
Features and Advantages of three axle low-plate semi-trailer:
Compared with individual vehicle, our semi trailer can make comprehensive economical profits for road transportation. Not only is cost reduced by 30%-40%, but also oil consumption is lowered by 20%-30%. More importantly, semi trailer has an important role in promoting logistic operations of China.
1. Container transport semi trailer is specially designed to container transport and it comes with frame construction without floor.
2. Low plate semi trailer offers plain structure without railing.
3. Semi trailer with railing framework embraces a huge enclosed box.
4. Tank semi trailer has a sealed tank framework.
Main Configurations of three axle low-plate semi-trailer:
Overall size:13500x3300x2800mm |
Loading Dimensions:9000x3300x1300mm |
Loading capacity:60000 kg |
Dead weight: 14000kg |
Axle: Three axles, FUWA brand,13000kg class |
Landing gear:YAHUA FW2800 11T |
Kingpin:90# “fabricated” |
Rim/Tire:12.00R20 12 pieces |
Suspension:Steel spring 9016-10 |
Main structure: Upper wing plate: 20mm; Lower wing plate: 20mm; thickness:16mm |
Electric system:1 set of whole sealing wiring harness +lamps, 1 piece of Seven core socket |
Foldaway ladder |
Tool box:one set, 1000x450x450mm |
Spare tire support:2 pieces, without spare tire |
Looking forward to your inquiry at any time!
