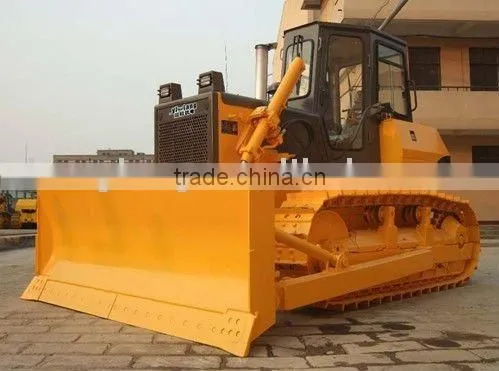

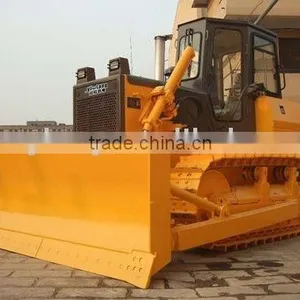

SD6 bulldozer

NO  DESCRIPTION  UNIT  SPECIFICATON

2  Engine  Mode  /  Dongfeng 6114ZG4B
   Type  /  Water cooled, inline,
Turbocharged,
   Number of cylinder-bore*stroke  mm  6-114*135
   Rated horsepower/rpm  kW/r/min  99.2/1900
   Min. Fuel consumption  g/kw. H  228g/kw. H
3  Start method  Type  /  Electric starting motor
   Starting motor  V/kW  24/7.5
   Voltage/power
   Battery  /  24V(12V*2)-195Ah
4  Lubrication system  Lubrication type  /  Forced lubrication.
   Cooling type  /  Water cooling
5  Fuel system  Specification  /  Light diesel
6  Cooling system  Water pump  /  Closed system
7  Electric generator  V/A  24/35
8  Air filter type  /  KLH-14u
9  Transmission system  transmission  /  Planetary gear, multiple disc clutch, 3 forward and 3 reverse speeds.
   Bevel gear  /  Helical bevel gear, splash lubricated
   Steering clutch  /  Wet, multiple disc, spring loaded, hydraulic operated, mechanical separating, linking steering brake
   Steering brake  /  Dry, band brake, foot-actuated.
   Final drive  /  Spur gear, double reduction, splash lubricated.
10  Travel Speed  Forward  1st  km/h  0-3.2
     2nd  km/h  0-5.9
     3rd  km/h  0-9.8
   reverse  1st  km/h  0-3.9
     2nd  km/h  0-7.1
     3rd  km/h  0-11.9
11  Under carriage  Suspension system  /  Equalizer bar
   Track tension  /  Hydraulic-adjusted
   Sprocket  Pics  Segmented
   Number of track rollers (each side)  Pics  6(2 double 4 single)
   Number of carrier rollers (each side)  Pics  2
12  Track  Type  /  Sealed single grouser
   Track pitch  mm  190
   Number of track shoes  pics  38
   Track gauge  mm  1880
   Length of track on ground  mm  2365
   Track width  mm  460
   Ground clearance  mm  320
13  Hydraulic system of work equipment  Pump type    Gear pump
   Rated delivery    180
   Control valve    Servo valve
   Working pressure    14
   Fuel tank
   Blade Max. Lift above the ground    930
   Blade Max. Drop below the ground    590
   Max. Lift speed
   Max. Tilt    400
   Pitch adjustment    55
14  blade  type  /  Straight tilt blade
   Dimension  mm  3286*1320
   Blade capacity  m3  5.7
15  Ground ability  0  30
16  Dimension without ripper  mm  4492*3286*3160
17  Operating weight without ripper  kg  14000
