Specifications
Bulldozer XCMG TY160A bulldozer is a crawler that has a substantial blade for pushing large quantities of soil, sand, rubble,
Earth-moving Machine/XCMG Bulldozer TY160
1.Feature of Bulldozer
•Adopt Steyr WD615-T1-3A engine, featuring strong power, reliable performance, and convenient aftersales services.
•The drive system adopts hydraulic-mechanical drive.
•The electronic monitoring system with sound/light alarm function is very sensitive and the visual monitoring is very convenient.
•The cab seat can automatically adjust the angle and height, and it has the ergonomically designed operation system, which makes it more convenient and easier to operate.
•The new and beautiful hexahedron cab has wide view.
•It can be equipped with straight tilt blade, U-shaped blade, angle blade, and 3-tooth scarifier, applicable to various work conditions.
A bulldozer is a crawler that has a substantial blade for pushing large quantities of soil, sand, rubble, etc., during construction work and a ripper for loosening dense, compacted materials. As a caterpillar tractor, a bull dozer find a wide range of applications on small scale and large construction sites, in mines and quarries, military bases, farming industry, heavy industry factories and large engineering projects.
2. Parameter of Bulldozer
Items | Unit | Parameters |
Engine Model |
| WD615-T1-3A |
Rated speed | r/min | 1850 |
Piston displacement | L | 9.7 |
Rated power | kW | 131 |
Min. oil consumption | g/kW.h | 198 |
Operating weight | kg | 17,400 |
Max.traction | kN | 141 |
Single blade (straight tilt blade) capacity | m³ | 3.9 |
Productivity (haul distance 30m) | m³/h | 350 |
Ground contact length | mm | 2430 |
Ground pressure | kPa | ≤65 |
Track center distance | mm | 1800 |
Max.output torque | N.m | 830 |
Max.gradeability | ° | 30 |
Min.ground clearance | mm | 400 |
Min.turning radius | mm | 3100 |
Dimension(incl. scarifier)L×W×H | mm | 6430×3416×3015 |
Travel speed 3 forward gears | km/h | 0-9.07 |
3 reverse gears | km/h | 0-11.81 |
Max.lifting height | mm | 1149 |
Max. scarification depth | mm | 545 |

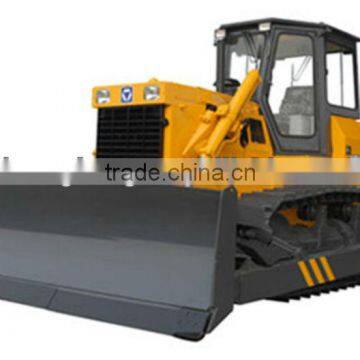

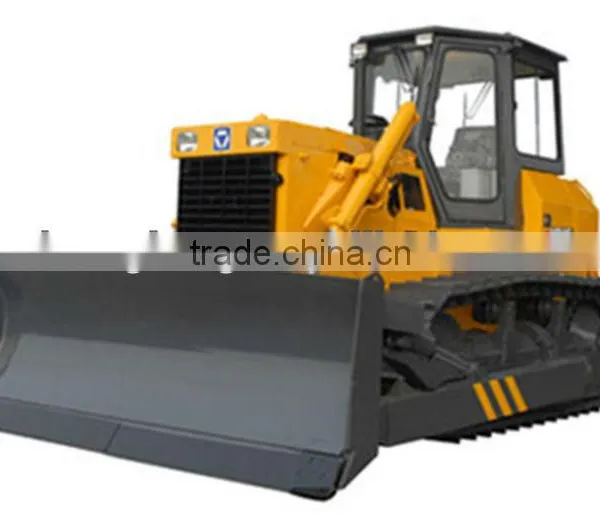

3. Pictures of Bulldozer
4.Company instruction:
Jinan Shanglong International Trade Co.,Ltd is located in Jinan,shandong Province,China.With more years development, we specializes in exporting SINOTRUCK series trucks, such as tipper,tractor,mixer,cargo truck, special-using truck, semi-trailer and spare parts. compressed garbage truck, sewage suction truck,sprinkler, as well as power tank truck and other special vehicles.
XCMG and ZOOMLION series construction machinery such as truck crane, wheel loaders, excavators, compactor, road rooler, pump truck, motor grader, bulldozers, backhoe loaders, road rollers, heavy duty trucks and more products at low prices. Now in the international construction lifting machinery industry, their output and sales rank top and its economic scale and competitive benefits rank top, too.
We have been exporting trucks and construction machinery to many countries across the world. The products that we offered have attained many certifications, such as: ISO9001, ISO14001, CE, EU, GOST and enjoy a high reputation for their quality and competitive price.

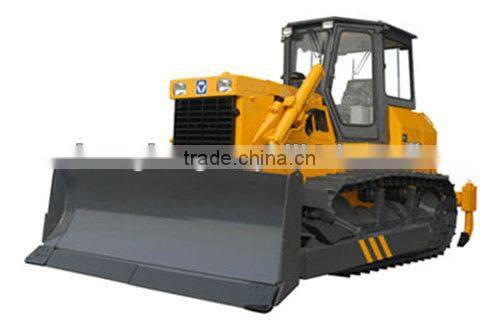

Earth-moving Machine/XCMG crawler Bulldozer TY160
