XCMG Bulldozer DT140BA bulldozer is a crawler that has a substantial blade for pushing large quantities of soil, sand, rubble,
Earth-moving Machinery/XCMG Bulldozer DT140B
1.Feature of Bulldozer
•Shanghai 6135AK-10 engine, new type of suspension spring support, good vibration absorption effect.
•It adopts helical cylindrical gear drive transfer case and transmission, the transmission features 5 forward gears and 4 reverse gears, mechanical control, gear shift collar, featuring high drive efficiency and low noise.
•It adopts constant open main clutch with multi-disc wet friction disc and hydraulic boosting and the constant engaged steering clutch with multi-disc wet friction disc, which is convenient to operate.
•The final drive adopts 2-stage straight teeth and large displacement gear reduction for great traction force.
•The bulldozing work device adopts hydraulic system of pilot control which is easy to operate with less effort; the oil cylinder is front-installed which reduces the system pressure; the control valve is mounted outward; the big oil tank improves cooling effect and the reliability of hydraulic system.
•The hexahedron cab and full closed cover, the patented appearance, heating ventilation, wide view, and convenient maintenance.
•The machine has good overall configuration, compact structure, reasonable gravity distribution, and good stability; the machine body and undercarriage has good buffering effect.
•The optional devices include automatic oil filler, automatic track tension device, air conditioner without freon, scarifier, etc.
A bulldozer is a crawler that has a substantial blade for pushing large quantities of soil, sand, rubble, etc., during construction work and a ripper for loosening dense, compacted materials. As a caterpillar tractor, a bull dozer find a wide range of applications on small scale and large construction sites, in mines and quarries, military bases, farming industry, heavy industry factories and large engineering projects.
2. Parameter of Bulldozer
Items | Unit | Parameters |
Engine Model |
| 6135AK-10 |
Rated speed | r/min | 1800 |
Rated power | kW | 114 |
Operating weight | kg | 17,800 |
Operating weight(incl. scarifier) | kg | 19,400 |
Max.traction | kN | 141 |
Ground pressure | kPa | ≤68 |
Track shoe width | mm | 500 |
Gradeability |
|
|
Longitudinal | ° | 30 |
Transverse | ° | 25 |
Min.ground clearance | mm | 350 |
Dimension(incl. scarifier)L×W×H | mm | 6,320×3,762×3,114 |
5 Forward gears, 4 reverse gears | km/h | 2.52~10.61 |
Travel speed | km/h | 3.53~10.53 |
Angle blade width×height | mm | 3,762×1,048 |
Max.lifting height | mm | 1,000 |
Max.cutting depth | mm | 400 |
Horizontal slewing angle of angle blade | ° | +/-25 |

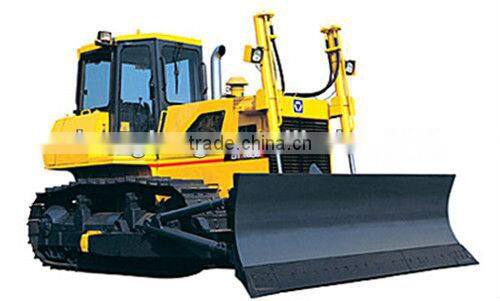

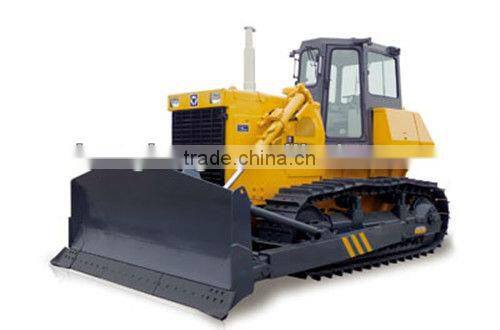

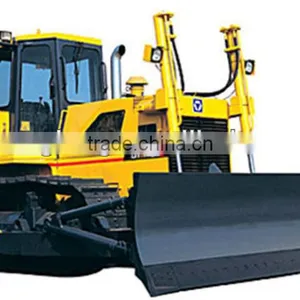

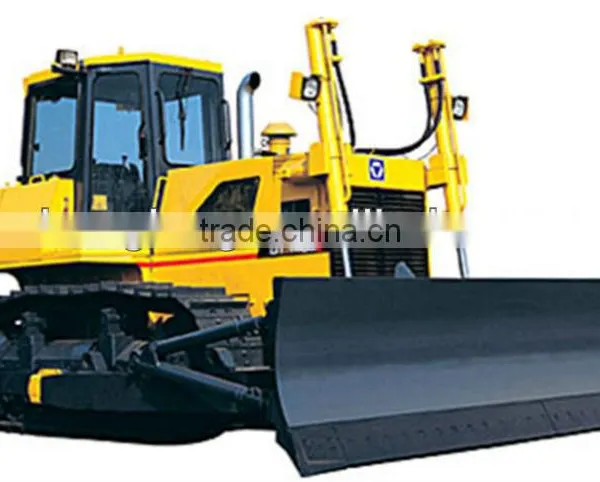

3. Pictures of Bulldozer
4.Company instruction:
Jinan Shanglong International Trade Co.,Ltd is located in Jinan,shandong Province,China.With more years development, we specializes in exporting SINOTRUCK series trucks, such as tipper,tractor,mixer,cargo truck, special-using truck, semi-trailer and spare parts. compressed garbage truck, sewage suction truck,sprinkler, as well as power tank truck and other special vehicles.
XCMG and ZOOMLION series construction machinery such as truck crane, wheel loaders, excavators, compactor, road rooler, pump truck, motor grader, bulldozers, backhoe loaders, road rollers, heavy duty trucks and more products at low prices. Now in the international construction lifting machinery industry, their output and sales rank top and its economic scale and competitive benefits rank top, too.
We have been exporting trucks and construction machinery to many countries across the world. The products that we offered have attained many certifications, such as: ISO9001, ISO14001, CE, EU, GOST and enjoy a high reputation for their quality and competitive price.
Earth-moving Machinery/XCMG crawler Bulldozer DT140B
