Straight Run Single Hinge Table Top Chain 820 Series

Straight Run Single Hinge Table Top Chain 820 Series photo-1
US$ 5 - 10 MOQ: 5 Meters
Key Specifications
Get Latest Price
Condition:
New
Type:
Slat Conveyor
Material:
Other, Plastic, Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Slat Conveyor
Material Other, Plastic, Plastic
Material Feature Heat Resistant
Structure Chain Conveyor
Place of Origin Jiangsu, China
Brand Name TUOXIN
Model Number 820
After-sales Service Provided Overseas third-party support available



Plastic Table Top Chians

Table Top Chains

Flat Top Chains

Slat Chains

Tabletop Plastic Chains



Introduction&Application:



Plastic tabletop chains are made of engineering plastic and are connected using stainless steel pins.The plastic tabletop chains constitute a light-weight yet strong and silent alternative to steel chains.

These chains are used mainly in the food and packaging industry for conveying of many kinds of containers.For example:PET bottle,PET petaloid bottle,Aluminum and steel can,Cartons,Trays,Packaged products(cartons,shrink packs),Glass,Plastic containers.



Benefits:



---Accuracy of molding process guarantees optimum flatness

---High wear resistance and low friction

---High working load



Data Sheet for tabletop chain 820 series:





Chain TypePlate Width Working Load(max) Backflex Radius(min) Weight
 mminchN(21°c)IBF(21°c)mminchKG/M
820-K25063.52.501230276501.970.73
820-K32582.63.251230276501.970.83
820-K35088.93.501230276501.970.87
820-K400101.64.001230276501.970.95
820-K450114.34.501230276501.971.03
820-K600152.46.001230276501.971.25
820-K750190.57.501230276501.971.47

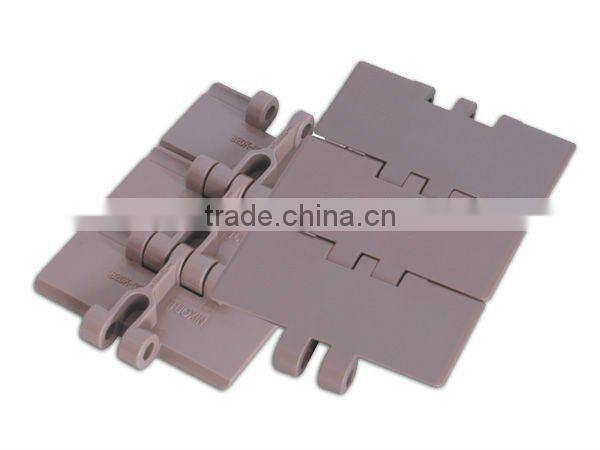

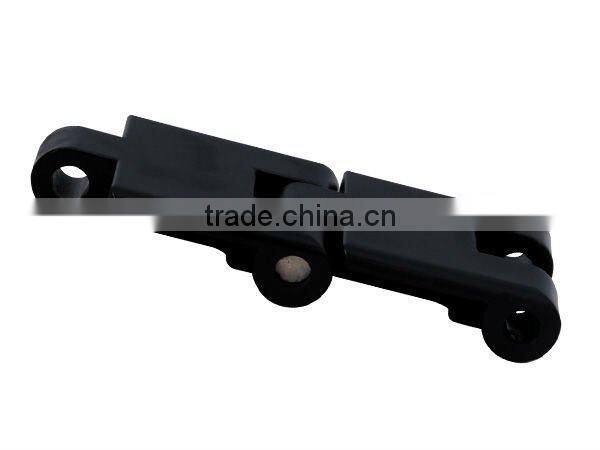

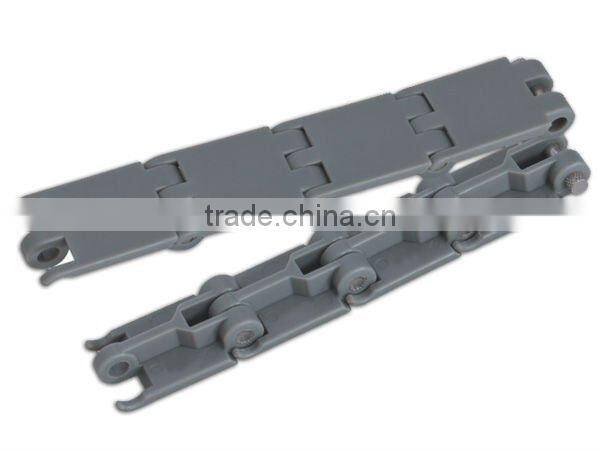

Pictures for series of tabletop chains:

Straight Run Single Hinge Table Top Chain 820 seriesStraight Run Single Hinge Table Top Chain 820 seriesStraight Run Single Hinge Table Top Chain 820 seriesStraight Run Single Hinge Table Top Chain 820 seriesStraight Run Single Hinge Table Top Chain 820 series

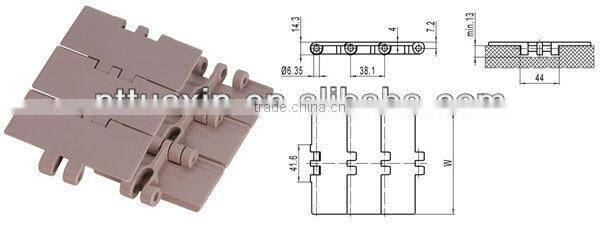

Drawing for tabletop chain 820 series:









Straight Run Single Hinge Table Top Chain 820 series

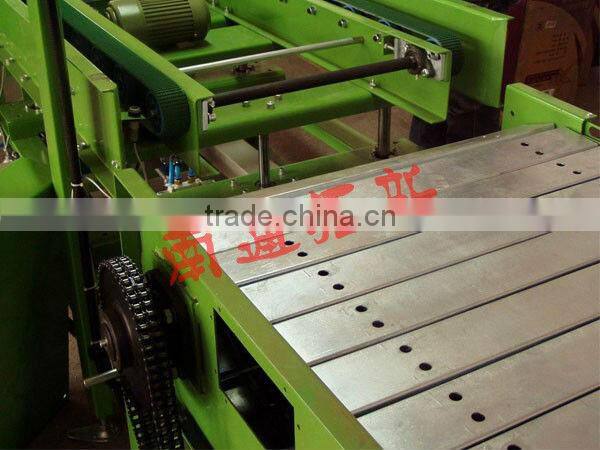

Application for kinds of conveyors:







Straight Run Single Hinge Table Top Chain 820 seriesStraight Run Single Hinge Table Top Chain 820 series



Since we have been specilized in this industry area for more then ten years,now we have many kinds of tabletop chains,if you have any interests about our products,please feel free to contact us.
