Introduction:
Tuoxin has a wide variety of plate top and gripper chains.The roller chain based plate top is developed for greater loading capacity and permits even high speed and longer runs than table top chains.The roller chain based gripper is perfect for product elevating,lowering,rinsing,sterilizing and inverting,by means of soft rubber gripper elements.The base chain is made of stainless steel.
963-,1873-series,with "snap-on" plastic top plates combine the benefits of a plastic conveying surface with those of a percision roller base chain:less slip-stick,high working load and accurate positioning.
Main applications of gripper chains can be found in glass works.However,they can be used in various other situations,such as crate handling and can manufacturing.The grippers are provided in 3-or 4-finger grippers for smaller products and in D-type grippers for other applications.
Date Sheet for Gripper Chain 1873G4 series:
| Chain Type | Plate Width | Working Load(max) | Sideflex Radius(max) | Backflex Radius(min) | Weight | ||||
| mm | inch | N(21°c) | IBF(21°c) | mm | inch | mm | inch | kg/m | |
| 1873G4-K325 | 82.6 | 3.25 | 3400 | 765 | 356 | 14.00 | 305 | 24.00 | 3.0 |
| 1873G4-K450 | 114.3 | 4.50 | 3400 | 765 | 356 | 14.00 | 305 | 24.00 | 3.4 |

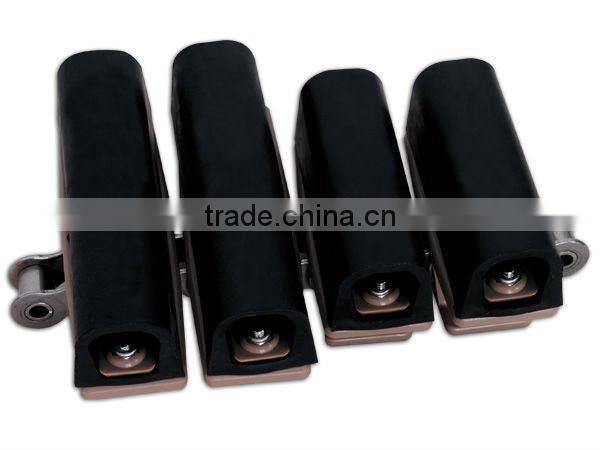

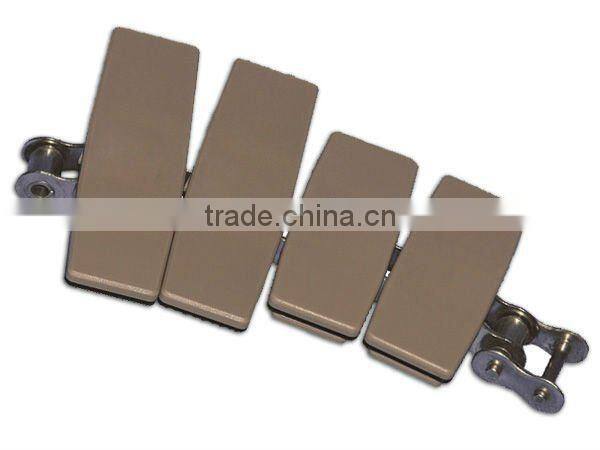

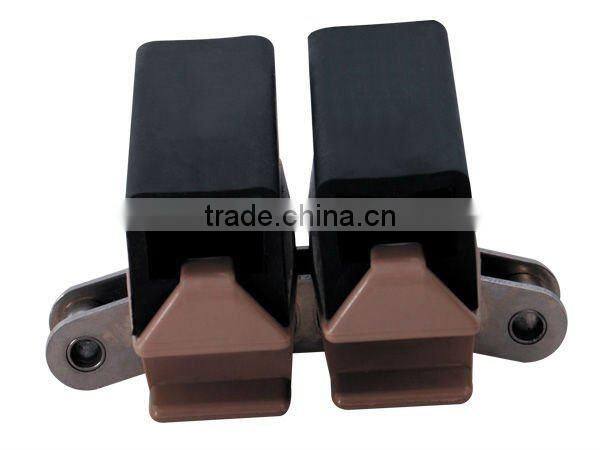

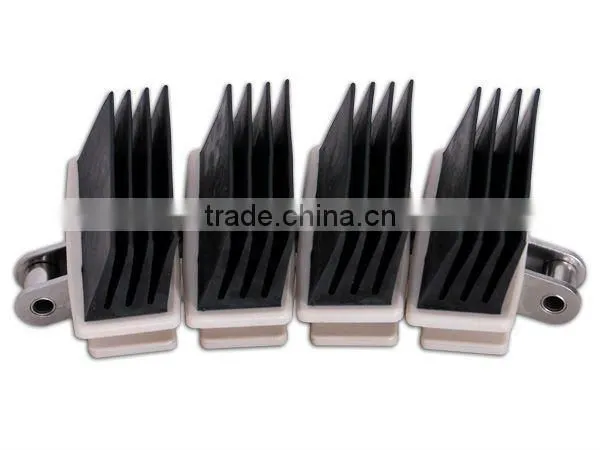

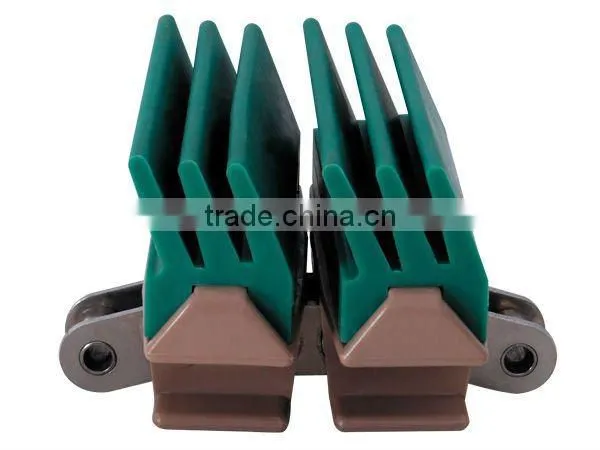

Pictures for series of Gripper Chains:

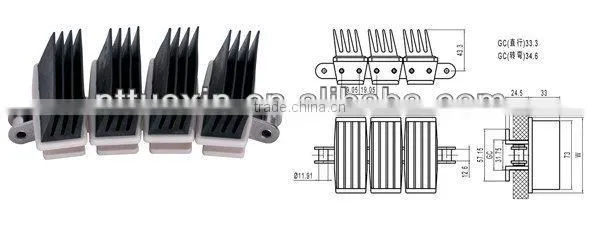

Drawing for the Gripper Chain 1873 G4 series:
Since we have been specilized in this industry area for more than ten years,now we have many kinds of gripper chains,if you have any interests about our products,please feel free to contact us.
