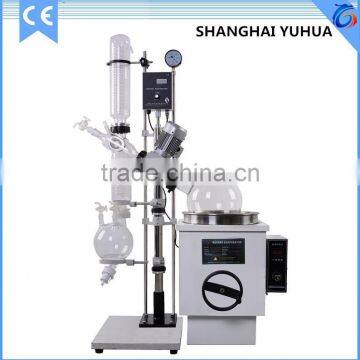

Laboratory High Quality 50L Rotary Vacuum Evaporator

Laboratory High Quality 50L Rotary Vacuum Evaporator thumbnail-1
Laboratory High Quality 50L Rotary Vacuum Evaporator photo-1
US$ 800 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Distillation
Power Source:
Electric
Contact Supplier Request Quote Chat Now
Shanghai Yuhua Instrument Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Distillation
Power Source Electric
Process Rotary
Place of Origin Shanghai, China
Brand Name YUHUA
Model Number RE-5002
Voltage 220V/50HZ
Power(W) 250W
Dimension(L*W*H) 1060*620*1200mm
Weight 200kg, 200kg
Certification CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas
Product Application

 Laboratory Rotary Evaporator


They are the ideal tools for many everyday laboratory applications including:

• Concentration of solutions

• Reclamation of solvents

• Vacuum drying of wet solids

• Degassing liquids

Mainly used in pharmaceutical, Biotechnology and Chemistry.


Product Description

Brief Introduction of  Laboratory Rotary Evaporator


Rotary Evaporator is under normal/negative pressure, with constant heating, use the different boiling point of the


 liquid material to get your target solvent.


Rotary Evaporator is widely used in the process like Concentration, Refining, Separation, Crystallization, etc. Waste


Water Evaporator mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades.


The Main Features of Laboratory Rotary Evaporator


1. Frequency conversion rotation speed regulation

2. Ex-motor optional

3. PTFE rotary seal assembly

4. Tandem type continuous receiving system

     -Realize no vacuum wave continuous receiving during evaporating process

5. Liftable bath with intelligent temperature controller, Manual lift or electric lift optional

6. PTFE Cork, no pollution to solvent

Model
RE-1002
RE-2002
RE-3002
RE-5002
Rotary Flask (L)
10L
20L
30L
50L
Collection Flask (L)
5L Bottom Discharge
10L Bottom Discharge
20L Bottom Discharge
20L Bottom Discharge
Motor Power
180W
250W
Condenser Surface (㎡)
0.57
1
1.5
1.5
Rotation Speed (rpm)
3~110



Evaporating Speed（H2O）
>3L/h
>5L/h
>9L/h
>9L/h
Reachable Vacuum Rate
<133Pa (1.33mbar, 1 Torr)
Bath Power (kW)
3kW
3kW
6kW
6kW
Static Temp. Control Range& Wave（℃）
0-99(180) ±0.2
Power
Single Phase 220V/50HZ
Detailed Images

Charging Valve


New structure and material applier, is


able to offer purely clean charging


 process and durable use experience.


Anti-corrosion&wearable sealing system

Specially designed and precisely manufactured. Enable system ultimate vacuum rate reaching 133pa. 90% user don’t need to replace rotary seal in one year.

PTFE discharging valve

PTFE structure, which is anti-


corrosion, no vacuum grease, no


pollution to solvent received.

Related Products

 Chiller


High and Low Temperature            Circulating Device

                 Vacuum Pump



Packing & Shipping

Packing



-Treated wood case or carton case


-Both neutral and customized packaging can be available


-According to the requirements in your country

Shipping

Depends on the dimensions of the package and your requirements, we can deliver the goods by air, by sea, by train or by express.
By sea:

More than 60kg or big quantity;Safe,cheap but slow;
By air to airport:
Suit for big product or quantity but urgent a lot. Usually 7-10 days arrive.
Some direct flight can arrive at 3-5 days.
By Express delivery DHL,FedEx,TNT:
Suit for small or not too heavy and very urgent
