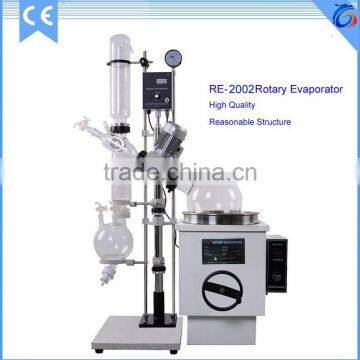

Reasonable Structure 20L Distillation Rotary Evaporator

Reasonable Structure 20L Distillation Rotary Evaporator thumbnail-1
Reasonable Structure 20L Distillation Rotary Evaporator photo-1
US$ 1,650 - 2,150 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Distillation
Power Source:
Electric
Contact Supplier Request Quote Chat Now
Shanghai Yuhua Instrument Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Distillation
Power Source Electric
Process Vacuum Distillation
Place of Origin Shanghai, China
Brand Name YUHUA
Model Number RE-2002
Voltage 220V/50HZ
Power(W) 180W
Dimension(L*W*H) 1450*500*480mm
Weight 160kg, 160kg
Certification CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas
Product Application

Distillation Rotary Evaporator


They are the ideal tools for many everyday laboratory applications including:

• Concentration of solutions

• Reclamation of solvents

• Vacuum drying of wet solids

• Degassing liquids

Mainly used in pharmaceutical, Biotechnology and Chemistry.


Product Description

Brief Introduction of  Distillation Rotary Evaporator


Rotary Evaporator is under normal/negative pressure, with constant heating, use the different boiling point of the


 liquid material to get your target solvent.


Rotary Evaporator is widely used in the process like Concentration, Refining, Separation, Crystallization, etc. Waste


Water Evaporator mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades.


The Main Features of Distillation Rotary Evaporator


1. Frequency conversion rotation speed regulation

2. Ex-motor optional

3. PTFE rotary seal assembly

4. Tandem type continuous receiving system

     -Realize no vacuum wave continuous receiving during evaporating process

5. Liftable bath with intelligent temperature controller, Manual lift or electric lift optional

6. PTFE Cork, no pollution to solvent

Model
RE-1002
RE-2002
RE-3002
RE-5002
Rotary Flask (L)
10L
20L
30L
50L
Collection Flask (L)
5L Bottom Discharge
10L Bottom Discharge
20L Bottom Discharge
20L Bottom Discharge
Motor Power
180W
250W
Condenser Surface (㎡)
0.57
1
1.5
1.5
Rotation Speed (rpm)
3~110



Evaporating Speed（H2O）
>3L/h
>5L/h
>9L/h
>9L/h
Reachable Vacuum Rate
<133Pa (1.33mbar, 1 Torr)
Bath Power (kW)
3kW
3kW
6kW
6kW
Static Temp. Control Range& Wave（℃）
0-99(180) ±0.2
Power
Single Phase 220V/50HZ
Detailed Images

Charging Valve


New structure and material applier, is


able to offer purely clean charging


 process and durable use experience.


Anti-corrosion&wearable sealing system

Specially designed and precisely manufactured. Enable system ultimate vacuum rate reaching 133pa. 90% user don’t need to replace rotary seal in one year.

PTFE discharging valve

PTFE structure, which is anti-


corrosion, no vacuum grease, no


pollution to solvent received.

Related Products

 Chiller


High and Low Temperature            Circulating Device

              Vacuum Pump



Packing & Delivery
Our Service

Pre-Sales Service

-According to your requirements and practical application.


-Find the best solution.


-Beautiful and practical.


-OEM Service.

After-Sales Service

-One year from the deliver date.


-Provide lifetime service for whole equipment.


-24 hours technical support by e-mail.


-Calling or door to door service.


-Use-friendly English software,use manual and detailed  videos.


FAQ

1. Are you manufacturer or trading company?
A: We are professional manufacturer of lab instruments with a history of 7 years.

2. How to choose suitable equipment ?
A: You tell us your requirements (For example: capacity, temperature range, pressure, etc ), we
      will recommend you the best suitable equipment.

3. What’s your delivery time?
A: Within 5 working days after payment confirmed, customized products need 10~15 working
     days.

4. How to solve the problem of your equipment?
A: Please send us email of the problem, pictures or a small video will be much better, we will
     find the problem and tell you how to solve it.
     If there is a broken, we will send you a new part, and it is free in the warranty period.

5. Do you still provide service beyond the warranty?
A: Yes. Our warranty is one year from the delivery date, we also provide service beyond the
      warranty period, but it will not free for the broken parts.

Any question pls don't hesitate to contact me!
