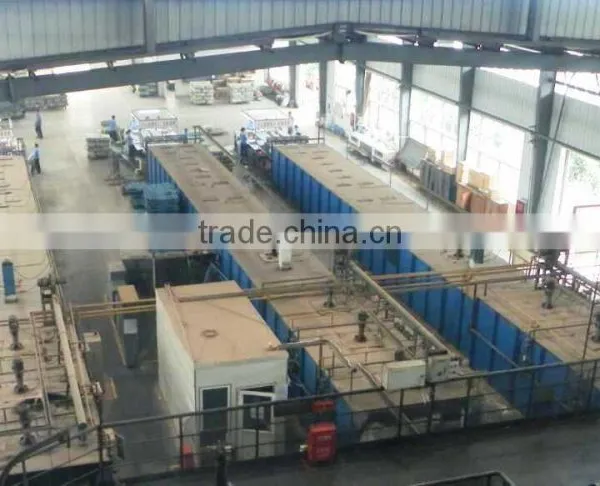

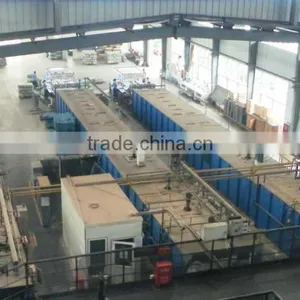

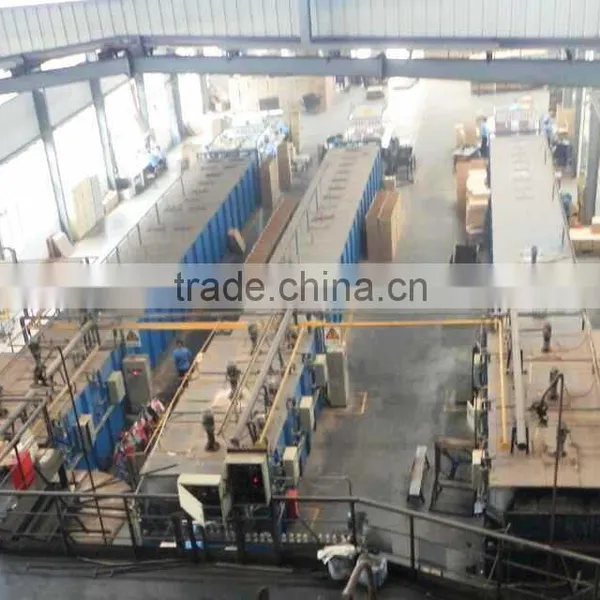

Glassware Annealing Lehr

Zhengzhou Dynnor Industrial Machinery Co., Ltd.

US$ 30,000 - 300,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Product Description

Main Features

radiation heating with flame above.
Temperature can be set in each section to achieve a optimal temperature curve according to the type of annealing product;separate and automatic control on each burning zone.
Evenly distributed temperature,all burning chamber in stainless steel,long service life expectancy.
full automatic and precise control of temperature,temerature difference within +/- 1℃; high energy efficiency.
tailor-made according to production capacity, length of annealing lehr adjustable to guarantee best performances in each different case.

Flame-fired Annealing Lehr

	Item	Unit	Main technical parameters
			FAL	FAL	FAL	FAL	FAL	FAL	FAL	FAL	FAL	FAL	FAL	FAL
				-RTS	-RTS	-RTS	-RTS	-RTS	-RTS	-RTS	-RTS	-RTS	-RTS	-RTS
			600	900	1200	1500	1800	2100	2400	2700	3000	3300	3600	4200
1	Width of Mesh belt B(mm)	mm	600	900	1200	1500	1800	2100	2400	2700	3000	3300	3600	4200
2	Lever Height of Mesh belt	mm	900-1000(or Customized)
3	Mesh belt Speed	mm/min	10-500
4	Allowable Maximum Temperature	℃	630
5	Furnace Hight	mm	350/400
6	Temperature Difference at cross section	℃	±2
7	Max load of Mesh Belt	kg/m2	90
8	Thickness of Stainless Steel Container	mm	3
9	Gear Motor Power	kw	1.1-3
10	Power of Circulation Fan	kw	1.1-2.2
11	Power of exhaust Heat Recovery Fan	kw	0.75-1.5
12	Fuel Type	natural gas,liquefied petroleum gas,Light diesel oil
13	origin of burner	Italy or Germany
14	gas control system	electromagnetic control or Germany proportional control
15	Temperature Control Methods	full-automatic independent control
16	Full Length	mm	25000-28000
17	Width of High-temperature section	mm	B+1100
18	Width of cold section	mm	B+600
