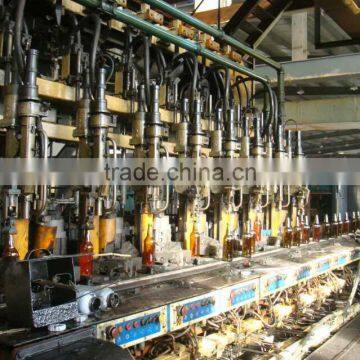

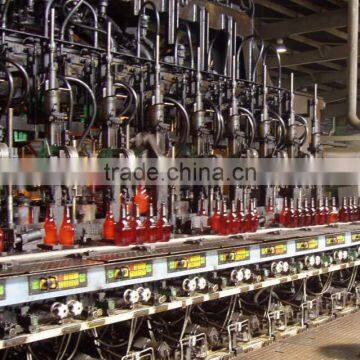

Home > Manufacturing & Processing Machinery > Glass Machine > Glass Tempering Furnace > I.S. Machine for Glass Bottle Production
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
15t/d to 120t/d
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Production Capacity
15t/d to 120t/d
Place of Origin
Henan, China
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Main Features:
Flex line control system
Integrated drive system
Quick change plunger Mechanism
Quick change accessories
Servo Gob Distributor
Delivery Suspension System
Automatic lubrication system
High/low deadplate cooling
Vertiflow blowside cooling
Constant cushion invert
Constant cushion takeout
Servo electric takeout
Conveyor with silent chain
Technical Data
| Model | Max. body diameter | Min. height under finish | Max. height under finish with vertiflow | Max. finish diameter | |||||||||
| with vertiflow | stack cooling without vaccum | with vaccum | B&B | P&B | NNPB | B&B | P&B | NNPB | B&B | P&B | NNPB | ||
| 4-1/4" | Single Gob | 156mm | 178mm | 170mm | 61mm | 74mm | - | 341mm | 265mm | - | 48mm | 120mm | - |
| Double Gob 4-1/4" | 76mm | 90mm | 80mm | 57mm | 40mm | 40mm | 301mm | 282mm | 282mm | 48mm | 83mm | 38mm | |
| Triple Gob 3" | 51mm | 52mm | 45mm | 59mm | 47mm | - | 276mm | 268mm | - | 30mm | 38mm | - | |
| 5" | Single Gob | 156mm | 178mm | 170mm | 74mm | 74mm | - | 341mm | 265mm | - | 48mm | 120mm | - |
| Double Gob 5" | 95mm | 102mm | 95mm | 73mm | 55mm | 55mm | 325mm | 290mm | 290mm | 48mm | 90mm | 38mm | |
| Triple Gob 85mm | 60mm | 62mm | 54mm | 55mm | 50mm | 50mm | 245mm | 213mm | 213mm | 30mm | 55mm | 38mm | |
| 5-1/2" | Single Gob | 156mm | 178mm | 170mm | 121mm | 121mm | - | 380mm | 326mm | - | 48mm | 120mm | - |
| Double Gob 5-1/2" | 102mm | 111mm | 102mm | 68mm | 58mm | 58mm | 343mm | 302mm | 302mm | 48mm | 90mm | 38mm | |
| 6-1/4" | Single Gob | 156mm | 178mm | 170mm | 120mm | 120mm | - | 355mm | 290mm | - | 48mm | 120mm | - |
| Double Gob 6-1/4" | 121mm | 130mm | 121mm | 115mm | 105mm | 105mm | 343mm | 300mm | 300mm | 48mm | 90mm | 38mm | |
| Triple Gob 4-1/4" | 76mm | 90mm | 76mm | 105mm | 86mm | 86mm | 287mm | 268mm | 268mm | 48mm | 70mm | 38mm | |
| Media | Pressue, Bar | CIS 4-1/4" | CIS 5" | CIS 5-1/2" | CIS 6-1/4" | ||||
| SG/DG | TG | SG/DG | TG | SG/DG | SG/DG | TG | |||
| low pressure operating air | 2.1 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | |
| high pressure operating air | 3.1 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | |
| forming air(B&B) | 3.1 | 1.8 | 1.8 | 2.0 | 2.0 | 2.0 | 2.4 | 2.7 | |
| forming air(P&B) | 3.1 | 2.6 | 2.6 | 2.8 | 2.8 | 3.0 | 3.2 | 3.8 | |
| vaccum | 150mbar | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.22-0.3 | 0.25-0.3 | |
| cooling air/stack only | 1200mm H2O | 75 | 60 | 75 | 65 | 90 | 95 | 90 | |
| vertiflow blowside &blank stack | 1200mm H2O | 50 | 40 | 55 | 45 | 60 | 75 | 70 | |
| vertiflow blank &blowside | 1200mm H2O | 35 | N/A | 40 | 30 | 45 | 60 | 55 | |
| vertiflow blowside | 1200mm H2O | 20 | 9 | 23 | 9 | 26 | 31 | 23 | |
| conveyor | 600mm H2O | 10 | 10 | 10 | 10 | 12 | 12 | 12 | |
| lubrication oil | 80 | 1.3L/Day | 1.3L/Day | 1.3L/Day | 1.3L/Day | ||||
| cooling water | 2.1 | 15L/Min | 15L/Min | 15L/Min | 15L/Min | ||||
