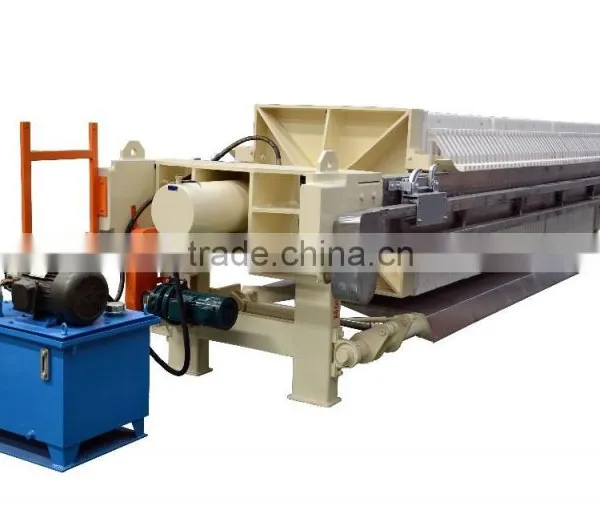

Membrane filter press is a kind of dewatering equipment working in batches, applicable to various solid-liquid separation. Filter press is effective, easy to use, suitable for large filtration plants that requires a high degree of automation or centralized control, with filter pressure of 0.8 Mpa min.. The whole machine is designed with integration of machine, electricity and liquid, can realize automatic pressing, filtering, draining, squeezing, loosening, drawing board, and so on, with a high degree of automation, large production capacity, low liquid content in filter cake, high unit output, requiring only very limited area for installation&operation. Widely used in petroleum, chemical industry, dye, metallurgy, pharmacy, food, paper making, coal washing,water treatment and sewage treatment and so on all kinds of solid-liquid separation is required.
Automatic filter press is on the basis of the pressure filter, according to user's different requirements for filter press equipment automation degree, choose to increase automatic plate system, auxiliary varicose arm of discharging slag system, single lever water flushing system, flap hydraulic system, PLC control system and other auxiliary facilities, in order to reduce the workers labor intensity, improve production efficiency.
Chamber Filter Press Models & Technical Data
| Model | Filter area (m2) | Plate size (mm) | Cake thickness (mm) | Filter chamber voiume (L) | Number of plates (pcs) | Filtration pressure (MPa) | Motor power (Kw) |
Total weight (kgs) |
Overall dimension LxWxH(mm) |
| AC30/870 | 30 | 870×870 (or 800x800) |
30 | 460 | 23 | >=0.6 | 2.2 | 2680 | 3180*1400*1230 |
| AC40/870 | 40 | 595 | 30 | 3050 | 3570*1400*1230 | ||||
| AC50/870 | 50 | 748 | 38 | 3456 | 4110*1400*1230 | ||||
| AC60/870 | 60 | 902 | 46 | 4003 | 4550*1400*1230 | ||||
| AC70/870 | 70 | 1056 | 54 | 4584 | 4990*1400*1230 | ||||
| AC80/870 | 80 | 1210 | 62 | 5082 | 5430*1400*1230 | ||||
| AC50/1000 | 50 | 1000×1000 | 30 | 736 | 28 | >=0.6 | 4 | 4128 | 4040*1500*1400 |
| AC60/1000 | 60 | 889 | 34 | 4636 | 4460*1500*1400 | ||||
| AC70/1000 | 70 | 1041 | 40 | 5143 | 4760*1500*1400 | ||||
| AC80/1000 | 80 | 1193 | 46 | 5651 | 5120*1500*1400 | ||||
| AC100/1000 | 100 | 1475 | 57 | 6628 | 5780*1500*1400 | ||||
| AC120/1000 | 120 | 1777 | 69 | 7644 | 6500*1500*1400 | ||||
| AC100/1250 | 100 | 1250x1250 | 30 | 1468 | 36 | >=0.6 | 4 | 8307 | 5020*1800*1600 |
| AC120/1250 | 120 | 1746 | 43 | 9308 | 5470*1800*1600 | ||||
| AC140/1250 | 140 | 2063 | 51 | 10455 | 5990*1800*1600 | ||||
| AC160/1250 | 160 | 2341 | 58 | 11492 | 6450*1800*1600 | ||||
| AC180/1250 | 180 | 2619 | 65 | 12494 | 6905*1800*1600 | ||||
| AC200/1250 | 200 | 2896 | 72 | 13504 | 7360*1800*1600 | ||||
| AC220/1250 | 220 | 3214 | 80 | 14652 | 7880*1800*1600 | ||||
| AC250/1250 | 250 | 3650 | 91 | 16227 | 8600*1800*1600 | ||||
| AC200/1500 | 200 | 1500x1500 | 35 | 2998 | 49 | >=0.6 | 7.5 | 20030 | 6400*2200*1900 |
| AC250/1500 | 250 | 3594 | 61 | 22978 | 7225*2200*1900 | ||||
| AC300/1500 | 300 | 4347 | 74 | 26026 | 8130*2200*1900 | ||||
| AC350/1500 | 350 | 5043 | 86 | 29220 | 8950*2200*1900 | ||||
| AC400/1500 | 400 | 5796 | 99 | 32574 | 9880*2200*1900 | ||||
| AC450/1500 | 450 | 6492 | 111 | 35586 | 10690*2200*1900 | ||||
| AC500/1500 | 500 | 7187 | 123 | 38606 | 11560*2200*1900 | ||||
| AC600/2000 | 600 | 2000x2000 | 40 | 8926 | 85 | >=0.6 | 15 | 49000 | 11100*3000*2500 |
| AC700/2000 | 700 | 10380 | 99 | 53000 | 12200*3000*2500 | ||||
| AC800/2000 | 800 | 11210 | 107 | 57000 | 13350*3000*2500 | ||||
| AC900/2000 | 900 | 13290 | 127 | 61000 | 14500*3000*2500 | ||||
| AC1000/2000 | 1000 | 14740 | 141 | 65000 | 15600*3000*2500 |
|
|
|
|
