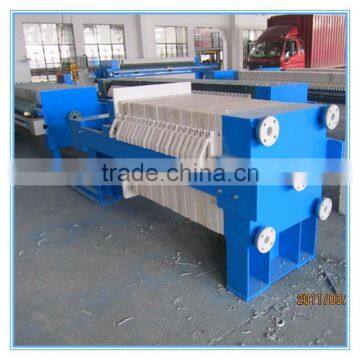

Membrane Filter Press
Our company supply various series of filter presses, including chamber filter press, plate and frame filter press, stainless steel filter press, lab type filter press, automatic filter press, water washing filter press, cast iron filter press, vertical filter press, etc.
Introduction of Membrane Filter Press:
Membrane filter press has high squeezing pressure, and good corrosion resistance. The membrane filter press from the material can be divided into rubber membrane filter press and PP membrane filter press. Rubber membrane filter press is more suitable for weak acid, weak alkali, organic solvents and not ideal filter material, rubber membrane tympanic membrane more fully, the use of pressure and volume is small, can greatly reduce the energy consumption. While the PP membrane used in strong acid, strong alkali and organic solvent materials, relatively more ideal performance and longer service life. In the form of the squeezing gas (air, inert gas) squeezing and liquid (water, oil) squeeze, to meet the needs of different industries. Food grade can be configured according to customer need to squeeze the components and common control can use PLC and man-machine interface. For general materials, diaphragm tympanic membrane 3-15 minutes later, can fully play the role of pressing dehydration.
For some special materials also can be used after the first low pressure squeeze high-pressure squeezing piecewise squeezing method. Diaphragm filter plate can meet the high efficiency of dehydration filter technology, and can safeguard filter press to play the best filtering effect. A diaphragm filter press can largely reduce the moisture content of filter cake and greatly improve the yield.
At the end of the feeding process, and through the filter cake to squeeze, to enhance the efficiency of dewatering, rights and filter cake dryness, reduce pollution and reduce labor. The drying process can be avoided in some of the process. If before squeezing and squeezing, increase the blowing operation, further reduce the moisture content of filter cake.
Features of Membrane Filter Press:
1, it adopts low pressure filtration, high pressure pressing, greatly shortening the whole filtration cycle.
2, it uses TPE elastomer, the maximum filtering pressure can reach 25 mpa, so that the moisture content is reduced greatly, and save the cost of drying, improve the yield.
3, save power consumption, operation late in filtration, small flow, high pressure.
4, the membrane pressing function, in a very short time to complete this process, save power consumption.
5, improve degree of mud biscuits, reduce rate of mud cake, diaphragm squeeze on static filter cake after the secondary crushing, the structure of the filter cake rearrangement, density increase, thus replacement part, improved the dryness.
6, strong corrosion resistance, basic is applicable to all the solid-liquid separation.
7, PLC and man-machine interface control can be configured.
8, membrane filter plate has anti-fatigue, anti-aging, sealed performance is good wait for a characteristic.
Application of Membrane Filter Press:
The membrane filter press has high squeezing pressure, good corrosion resistance advantages of convenient maintenance, safe and reliable, is metallurgy, gas, the papermaking, metallurgical, pharmaceutical, food, brewing, fine chemical industry of choice for customers. The membrane filter press has been widely used in every field in need of solid-liquid separation. The membrane filter press is considered to be the common box pressure filter replacement to upgrade equipment. Diaphragm filter press in processing capacity per unit area, reduce the filter cake moisture, the nature of processing materials showed better effect in such aspects as the adaptability.
Technical Specification of Membrane Filter Press:
| Model | Filter area (m2) | Plate size (mm) | Cake thickness (mm) | Filter chamber voiume (L) | Number of plates (pcs) | Filtration pressure (MPa) | Motor power (Kw) | Total weight (kgs) | Overall dimension LxWxH(mm) |
| AM30/870 | 30 | 870×870 | <= 35 | 498 | 23 | >=0.8 | 2.2 | 3046 | 3880*1250*1300 |
| AM40/870 | 40 | 623 | 30 | 3593 | 4270*1250*1300 | ||||
| AM50/870 | 50 | 789 | 38 | 4057 | 4790*1250*1300 | ||||
| AM60/870 | 60 | 955 | 46 | 4597 | 5310*1250*1300 | ||||
| AM70/870 | 70 | 1121 | 54 | 5136 | 5830*1250*1300 | ||||
| AM80/870 | 80 | 1287 | 62 | 5636 | 6350*1250*1300 | ||||
| AM50/1000 | 50 | 1000×1000 | <=35 | 776 | 28 | >=0.8 | 4 | 4352 | 4270*1500*1400 |
| AM60/1000 | 60 | 943 | 34 | 4480 | 4770*1500*1400 | ||||
| AM70/1000 | 70 | 1109 | 40 | 5263 | 5130*1500*1400 | ||||
| AM80/1000 | 80 | 1275 | 46 | 5719 | 5560*1500*1400 | ||||
| AM100/1000 | 100 | 1608 | 57 | 6555 | 6410*1500*1400 | ||||
| AM120/1000 | 120 | 1941 | 69 | 7466 | 7260*1500*1400 | ||||
| AM80/1250 | 80 | 1250x1250 | <= 40 | 1560 | 29 | >=0.8 | 5.5 | 10900 | 4830*1800*1600 |
| AM100/1250 | 100 | 1975 | 37 | 11750 | 5440*1800*1600 | ||||
| AM120/1250 | 120 | 2391 | 45 | 12600 | 6060*1800*1600 | ||||
| AM150/1250 | 150 | 2911 | 55 | 13620 | 6820*1800*1600 | ||||
| AM160/1250 | 160 | 3119 | 59 | 14470 | 7130*1800*1600 | ||||
| AM200/1250 | 200 | 3847 | 73 | 15320 | 8200*1800*1600 | ||||
| AM240/1250 | 240 | 4679 | 89 | 16170 | 9420*1800*1600 | ||||
| AM250/1250 | 250 | 4783 | 91 | 17020 | 9570*1800*1600 | ||||
| AM200/1500 | 200 | 1500x1500 | <=40 | 3809 | 49 | >=0.8 | 11 | 26120 | 7140*2200*1820 |
| AM250/1500 | 250 | 4723 | 61 | 26930 | 7730*2200*1820 | ||||
| AM300/1500 | 300 | 5637 | 73 | 28160 | 8720*2200*1820 | ||||
| AM350/1500 | 350 | 6551 | 85 | 29600 | 10110*2200*1820 | ||||
| AM400/1500 | 400 | 7618 | 99 | 31500 | 11260*2200*1820 | ||||
| AM450/1500 | 450 | 8532 | 111 | 33400 | 12250*2200*1820 | ||||
| AM500/1500 | 500 | 9446 | 123 | 33380 | 13240*2200*1820 | ||||
| AM600/2000 | 600 | 2000x2000 | <= 40 | 11901 | 85 | >=0.8 | 15 | 54164 | 13030*3000*2500 |
| AM700/2000 | 700 | 13838 | 99 | 58300 | 14390*3000*2500 | ||||
| AM800/2000 | 800 | 14945 | 107 | 62460 | 15770*3000*2500 | ||||
| AM900/2000 | 900 | 17713 | 127 | 66620 | 17150*3000*2500 | ||||
| AM1000/2000 | 1000 | 19651 | 141 | 70780 | 18530*3000*2500 |
