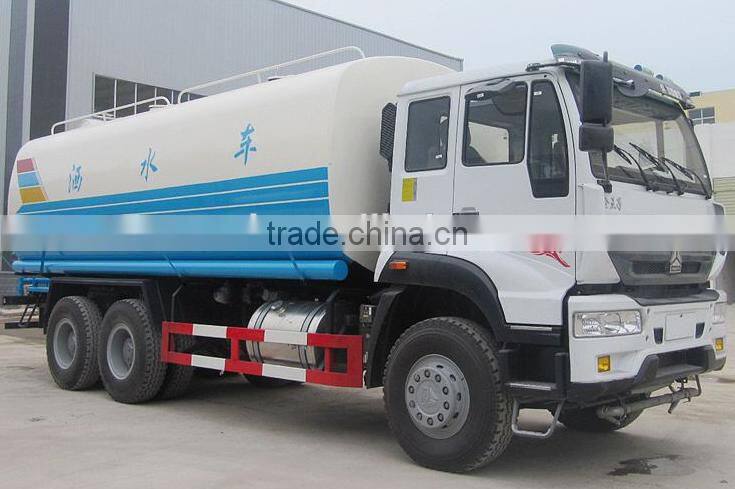

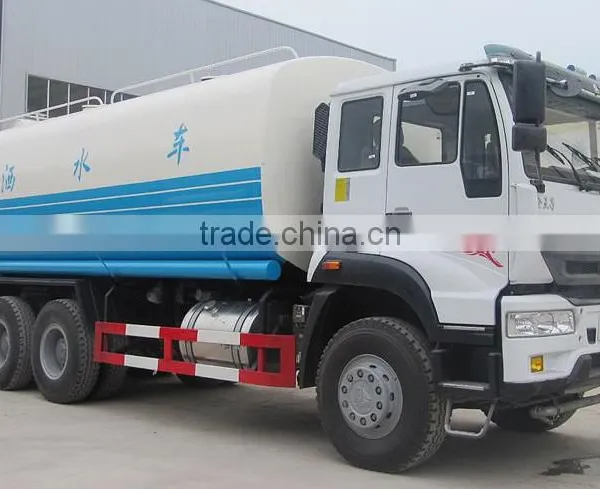

Chinese Famous Manufacture 17ton Water Tanker with All Capacity
| Overall | |
| Product model | CLW17418-WT |
| Overall size | 9650×2500×3000(mm) |
| Overall G.W. | 25000kg |
| Curb weight | 11370kg |
| Fact load | 13500kg |
| Chassis | |
| Chassis brand | Sinotruk |
| Chassis model | ZZ1251N464G |
| Drive wheel | 6*4 (6*6 is optional) |
| Drive type | Manual, left hand drive (right hand drive is optional) |
| Approach/departure angle | 13/20 (13/17,13/14 optional) |
| Overhang F/R | 1320/2180,1320/2490,1320/3000mm |
| Axis load | 7000/18000 |
| Springs number | 3/5,3/10,11/10,11/12,3/-,11/-,3/4 |
| Tyre | 10.00-20, 6+1pieces |
| Control system | Electrically hydraulic system |
| Transmission | Six speed levers,6 speed forward with 1 reverse |
| Chassis dimension | 9200(or 9710,11370)*2470*3000mm |
| Wheel base | 4350+1350mm; (4550+1350, 5700+1350mm is optional) |
| Axis number | Triaxial (3 axis) |
| Cab Passengers | 2 or 3 passengers |
| ABS brand / model | WABCO / 4460046300 |
| Speed limiting device | 80km/h (Optional) |
| Engine | |
| Engine brand | Sinotruk |
| Engine model | D10.28 |
| Horse power | 206Kw/280Hp |
| Exhaust | 9726CC |
| Electric system | 24V |
| Emission standard | Euro 3;( Euro 4;Euro 5 optional) |
| Max speed | 90km/h |
| Fuel | Diesel |
| Water tank system | |
| Tank volume | 17m3 |
| Load-media (transport medium ) | Water; Aqueous acetone solution; Acetone water; Density:800kg/m3 |
| Tank size | 6500*2300*1500mm |
| Tank shape | Oval |
| Tank material | Carbon steel |
| Tank color | Any color you prefer |
| Tank thickness | 4mm |

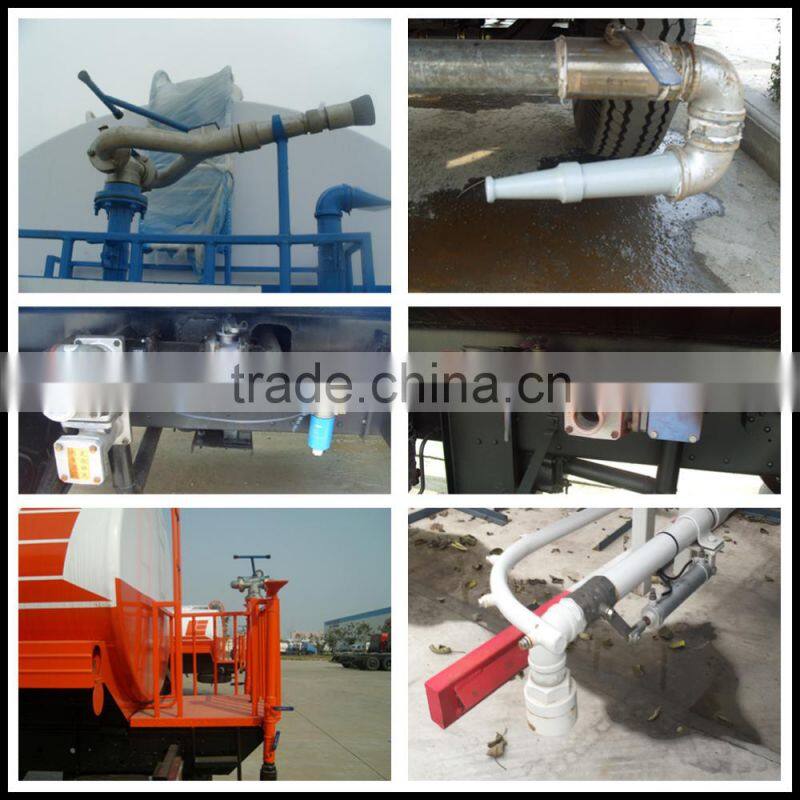

| Other equipment | Fire valve,water valve,and filter gauze |
| Pump | CLW pump(suction lift>6m) |

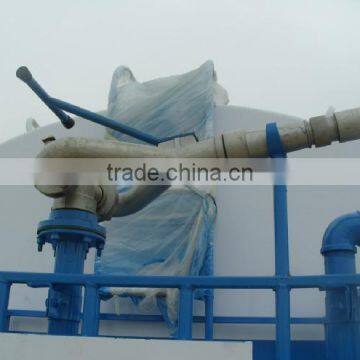

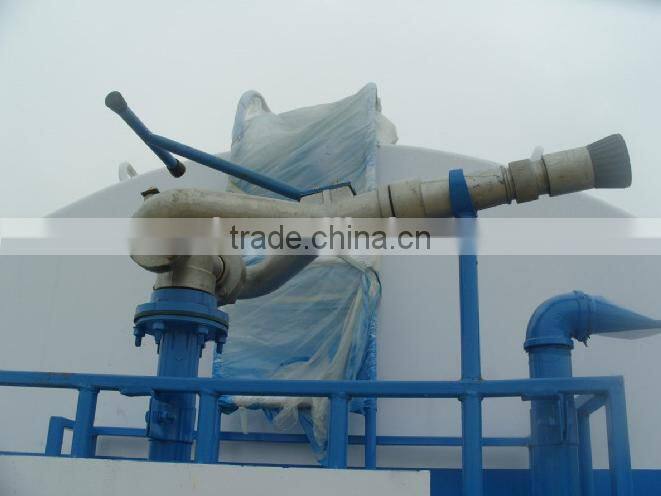

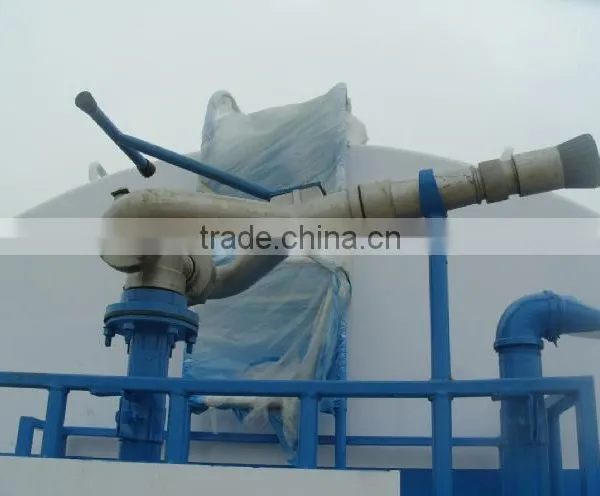

| Rear working platform | Rear working platform with water cannon(range>28m) |

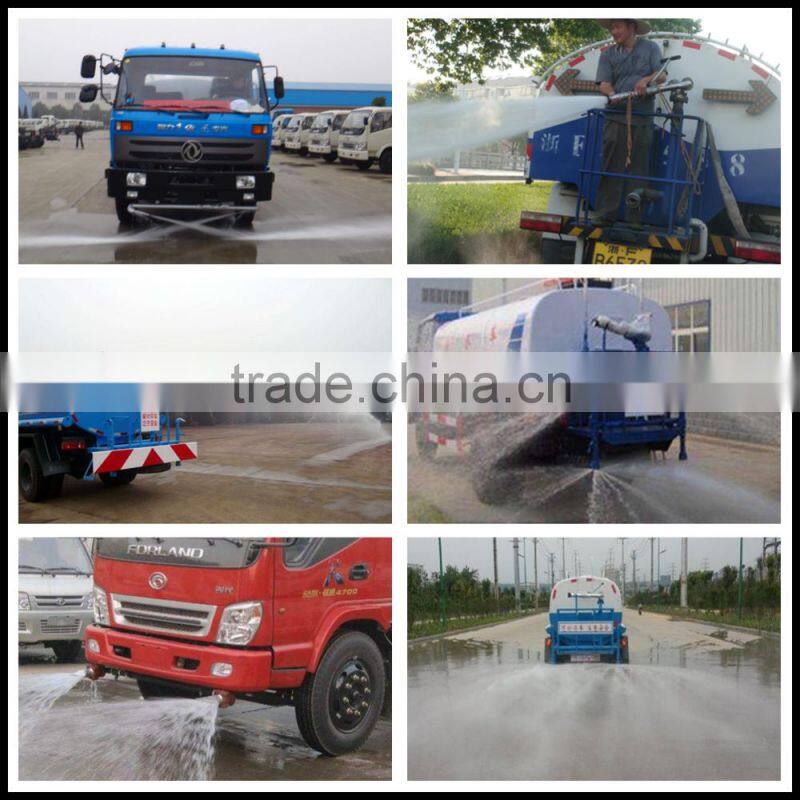

| Sprinkler width | Front(rear,side)sprinkler(sprinkling width>14m) |
| Protective guard | Material: Q235A carbon steel; Size:150*50mm; Height:530mm. |
| Sign&marks | Design according to your requirements; Sign model:TM1200-1,HW1400 |
| Remarks: | 1. We can design different sprinking system and watering devices according to your needs. |
2. The urea tank and the oil tank are placed on the right side of the vehicle;and the muffler and battery are placed on the left side of the vehicle. | |
| Certification | CCC, ISO... |
| Warrenty | 1 year |
| Production cycle | 7-15 days |

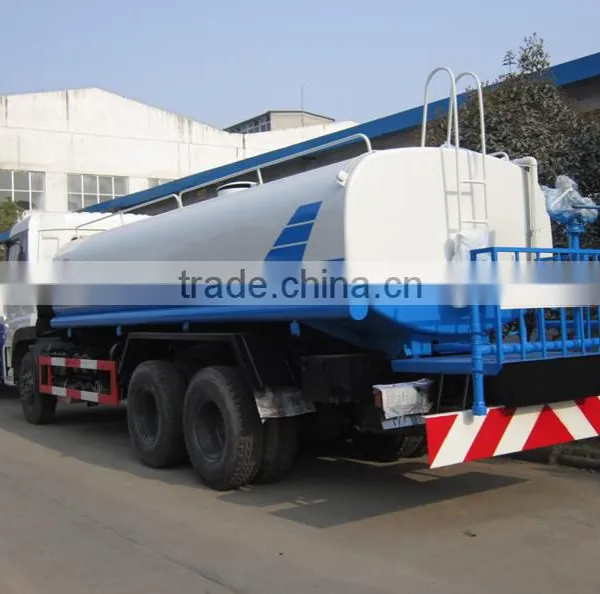

Chinese Famous Manufacture 17ton Water Tanker with All Capacity
Chinese Famous Manufacture 17ton Water Tanker with All Capacity
Chinese Famous Manufacture 17ton Water Tanker with All Capacity
Chinese Famous Manufacture 17ton Water Tanker with All Capacity
--- Packing: Waxed or nude, and covered with tarpaulin.
--- Shipping: small type can be shipped in 20"GP,40"GP,or 40"HQ, big type can be
shipped in bulk ship or RO-ROshipping, or according to your requirement.
CLW GROUP
ChengLi Special Automobile Co.,Ltd, is the headquarter of CLW GROUP. We are the biggest
manufacture of Special Purpose Vehicles in Suizhou city. And Suizhou city is the biggest Chinese
production base of special purpose vehicles.
CLW is our trademark. As the biggest manufacture in Suizhou city, we have been awarded many
honors, for example, CLW Group is the 19th in the top 100 private enterprises in Hubei province.
CLW Group is also 500 private enterprises in China."High-tech enterprises in Hubei province",
" Best credit enterprises".CLW sprinkler truck was named "Hubei famous brand"; "CLW" won the
Hubei famous brand, A Well-Known Trademark in China.
Our leading products include Water truck, Fire truck, Garbage truck, LPG vessel/truck/trailer,
Refrigerator truck, Dump truck, Concrete mixer truck , Sewage truck, Crane Truck, Van truck, etc.
With high quality and low price, our products are widely exported to Africa, Asia and South America
every year.
1. The total assets of CLW Group is 300,000,000 USD.
2. Our headquarter covers an area of more than 200 acres.
3. We have more than 8000 employees, of which more than 500 technical engineers,
more than 2000 technical workers.
4. Our annual production capacity is 100,000 sets of special vehicles.
5. We have more than 2000 sets of large production equipment, more than 200 sets
of testing equipment, some of which the machining centers and production lines are
in the world leading level.
6. We have more than 100 independent innovation products obtained national patent,
the vehicle type sewage purification device, gas lighting fire trucks and other projects
to get third-prize progress of science and technology.
7. More than 840 CLW brand products are included in the national bulletin directory.
1.You are factory or trading Company?
We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese
special purpose vehicles.
2.Could you customize exactly according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your
requirements.
3. Do you provide certification that we need?
We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
4. What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile
we provide free training and technical support to guide you repair your product. If need, we will
also send original spare parts free of charge by air.
