Home > Products > water tank truck > 2017 4*2 DONGFENG 10000L High Pressure Washer Water Cannon Vehicle
2017 4*2 DONGFENG 10000L High Pressure Washer Water Cannon Vehicle
- 1000 Set / Sets per Month
- Shanghai or any other port of China
- T/T L/C D/P D/A Credit Card PayPal
-
Multi-function dust suppression car spray car site dust cleaning road
-
Environmental spray dust removal vehicle multi-functional road cleaning greening water spreader
-
Kellywind small Dorica -5 square sprinkler Four Wheel Sprinkler
-
Municipal sanitation cleaning car dust fog car sprinkler spray car
-
Multi-functional sprinkler Sprinkler Bowser Spray Cleaning Transport and Delivery Truck
-
The car mounted hedge trimmer adopts a Jiangling chassis
Product Details
| Condition: | New | Transmission Type: | Manual | Emission Standard: | Euro 3 |
| Fuel Type: | Diesel | Dimensions (L x W x H) (mm): | 9000*2490*3080mm | Gross Vehicle Weight: | 16000 |
| Place of Origin: | Hubei, China | Brand Name: | DONGFENG | Model Number: | DFL17411-WCV |
Product Description

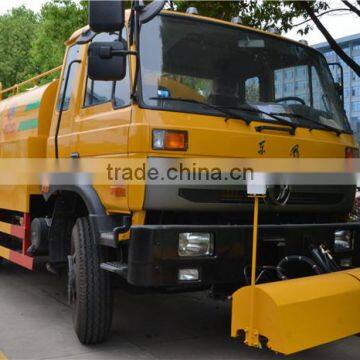

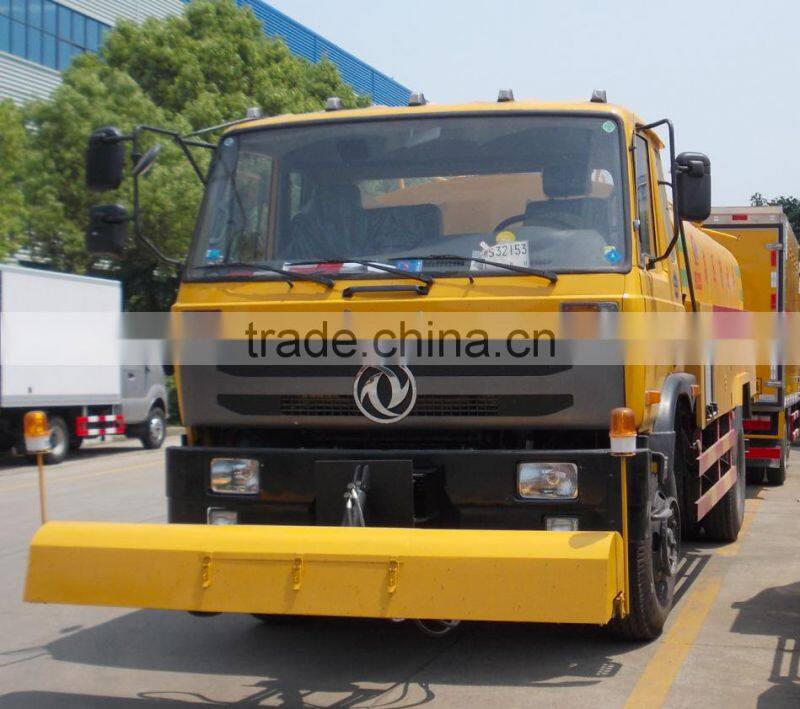

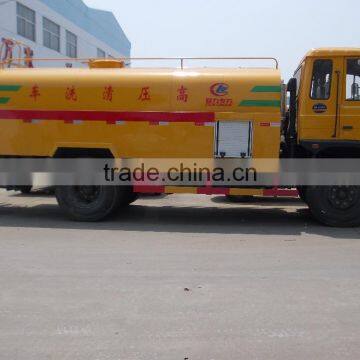

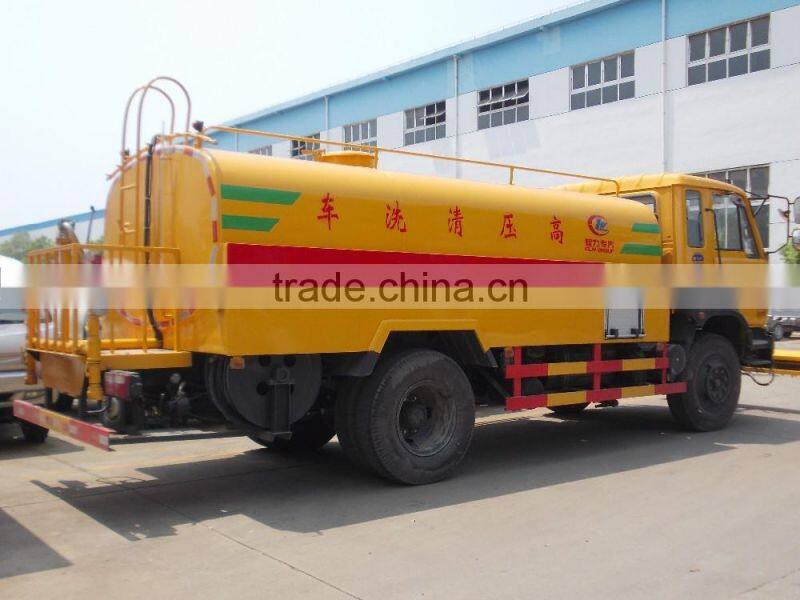

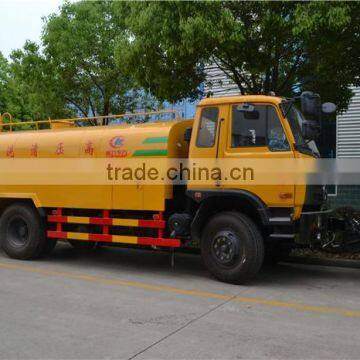

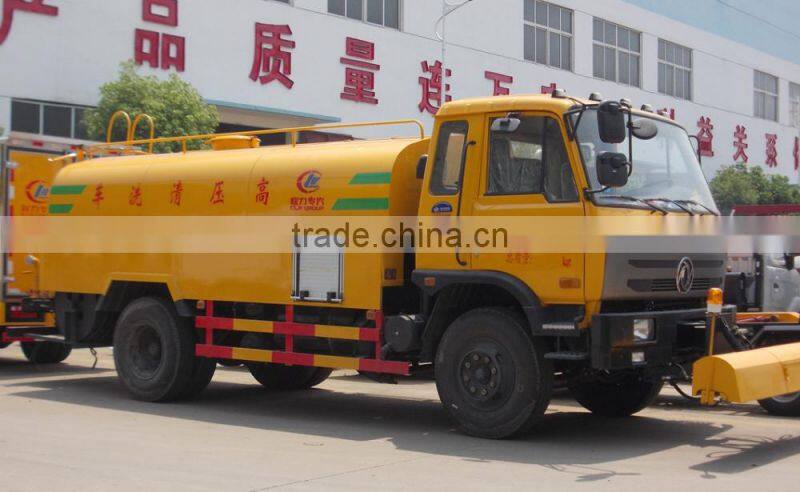

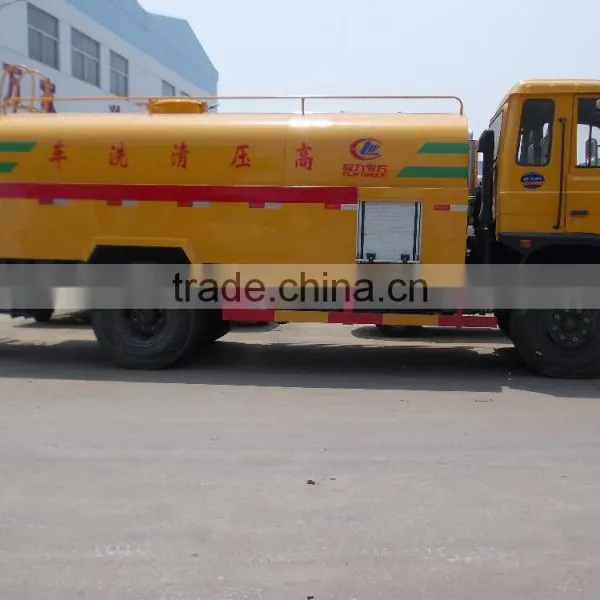

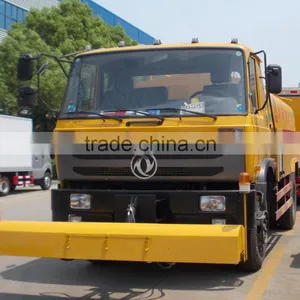

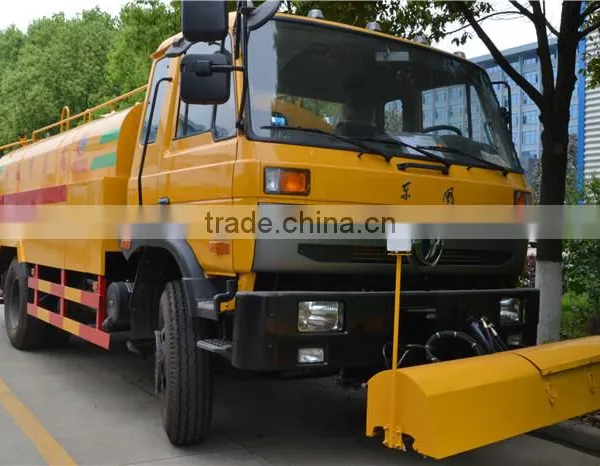

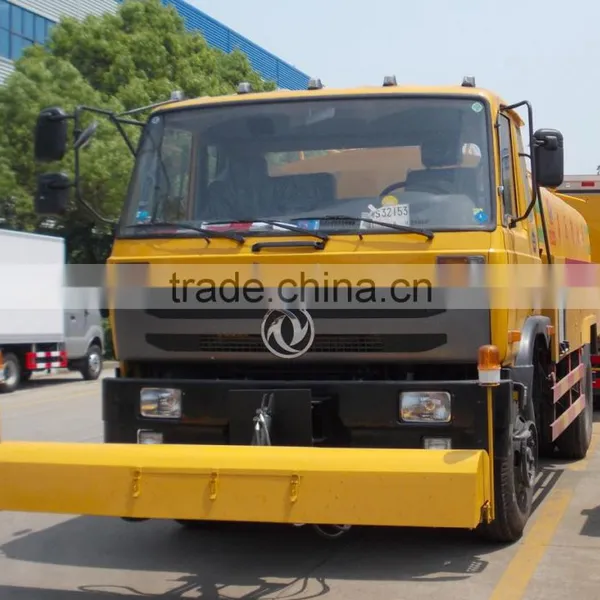

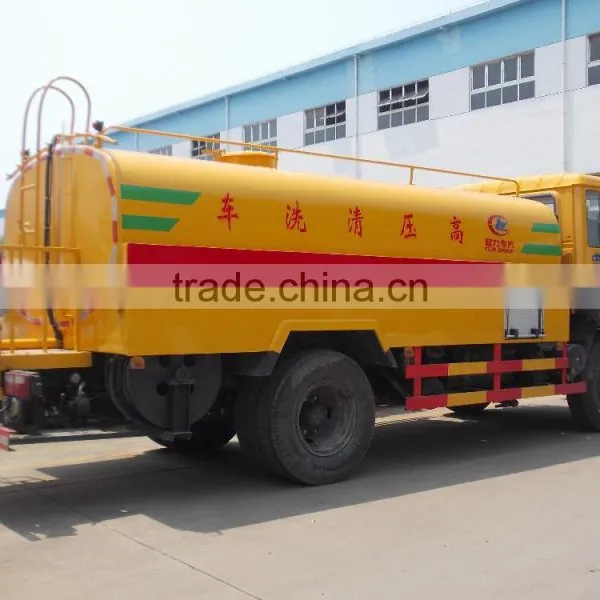

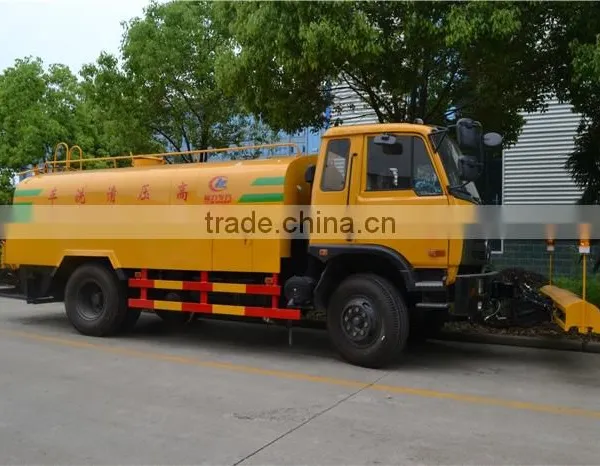

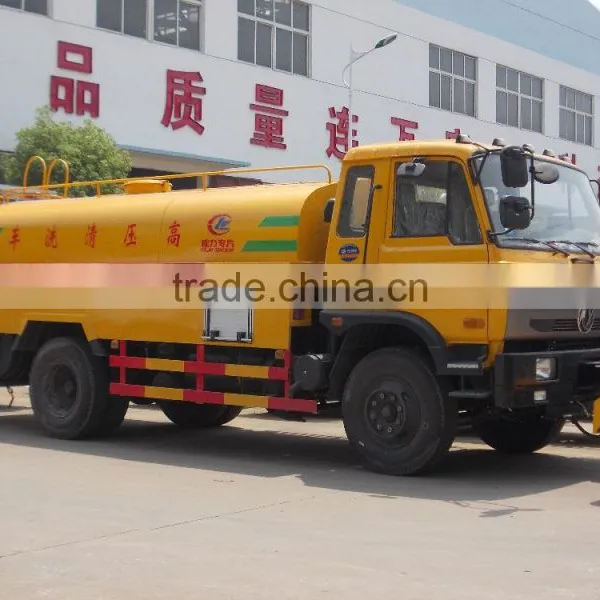

Pictures:
2017 4*2 DONGFENG 10000L High Pressure Washer Water Cannon Vehicle
Technical Parameters
2017 4*2 DONGFENG 10000L High Pressure Washer Water Cannon Vehicle
| Main Technical Parameters | |
| Overall | |
| Product name | 2017 4*2 DONGFENG 10000L High Pressure Washer Water Cannon Vehicle |
| Product model | CLW5160G17411-HWT |
| Tank size | 3800×2200×1380mm |
| Overall size | 9000×2490×3080mm |
| Overall G.W. | 16000kg |
| Curb weight | 6420(Kg) |
| Fact load | 10000(Kg) |
| Tank shape | Oval |
| Tank material | Carbon steel |
| Tank color | any color customer like |
| Tank thickness | 4mm |
| Max speed | 90 Km/h |
| Chassis | |
| Chassis brand | DONGFENG |
| Chassis model | DFL1160 |
| Drive type | Manual, left hand drive or RHD |
| Drive wheel | 4*2 |
| Approach/departure angle | 21/11(°) |
| Overhang F/R | 1430/1920,1430/2120mm |
| Axis load | 6000/9990kg |
| Tyre | 10.00R20, |
| Springs number | 8/10+8 |
| Transmission | Six speed levers,6 speed forward with 1 reverse |
| Wheel base | 4700mm |
| Axis number | 2 pieces |
| Cab passengers | 3 passengers |
| Engine | |
| Engine | B190 33 |
| Horse power | 140kw/190hp |
| Exhaust | 5900ml |
| Emission standard | Euro 3 |
| Fuel | Diesel |
| Superstructure | |
1. Equipped with front Sprinkler system, rear watering system ,with high pressure and low pressure waterway system. | |
2. In the high pressure condition, Spray rack cleaning width(m): 2.3 ~ 3.5 , Sprinkler rack deflection angle (°) :left or right 30 °, Cleaning water flow(L/min): ≥ 150, Cleaning speed(km/h):5-15. | |
3. In the low pressure condition, Cleaning width(m): ≥ 16, Cleaning water flow(L/min): 500-900, Water gun shot range(m):5- ≥ 35, Self-priming height(m) ≥ 6. | |
| 4. Optional Trolleys and hand gun. | |
5. Optional equipped with hydraulic lifting platform or guardrail cleaning brushes or pushing snow shovel. | |
| Warrenty | 1 year |
| Certification | CCC, ISO... |
| Production cycle | 7 -15 days |
--- Packing: Nake or waxed.
--- Shipping: small type can be shipped in 20"GP,40"GP,or 40"HQ, big type can be
shipped in bulk ship or RO-ROshipping.
CLW GROUP
ChengLi Special Automobile Co.,Ltd, is the headquarter of CLW GROUP. We are the biggest manufacture of Special Purpose Vehicles in Suizhou city. And Suizhou city is the biggest Chinese production base of special purpose vehicles.
CLW is our trademark. As the biggest manufacture in Suizhou city, we have been awarded many honors, for example, CLW Group is the 19th in the top 100 private enterprises in Hubei province. CLW Group is also 500 private enterprises in China."High-tech enterprises in Hubei province", " Best credit enterprises".CLW sprinkler truck was named "Hubei famous brand"; "CLW" won the Hubei famous brand, A Well-Known Trademark in China.
Our leading products include Water truck, Fire truck, Garbage truck, LPG vessel/truck/trailer, Refrigerator truck, Dump truck, Concrete mixer truck , Sewage truck, Crane Truck, Van truck, etc.
With high quality and low price, our products are widely exported to Africa, Asia and South America every year.
1. Is your company a factory or trading Company?
We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Could you customize exactly according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
3. Do you provide certification that we need?
We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
4. What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
5. Any more questions,please feel free to contact me directly!
