P12mm Outdoor Fullcolor Advertising Led Mobile Billboard For Truck
We are manufacture of mobile led advertising truck, led truck, led advertising truck, led screen in trailer,etc.
Our mobile led advertising truck with high quality and favorite price.
Brief introduction of Led advertising truck:
1.LED Screen: It uses imported EPISTAR chips, high level of illumination, long life-span, and high refresh
frequency and easy to maintain.
2.Generator set: It is specialized designed for this style. Lower noise and stable.
3.Lifting system of LED screen: We use the electric puts as the lifting system, since the synchronization
error of two Electric puts is only 1mm.
4.Vehicle air-conditioner: Its most important function is cooling the LED screen and the generator, also it
could well cool the carriage, and provide a very comfortable environment for the staffs. The vehicle air-
conditioner also has excellent quake-proof index and waterproof index.
5.Multi-media Control System: Integrated control cabinet with industrial computer, amplifier, and operation
buttons together. The speakers are equipped in the frame of carriage. With it, you could do on-site live
recording and broadcasting, television program broadcasting, live karaoke and so on.
Advantages of mobile led advertising manufactured by Chengli
1. Our led screen :P10,P8,P6,H4,etc.
2. Our led mobile truck for outdoor and indoor.
3. Our led screen mounting type: lifting and fixed.
4. Our led truck delivery : within 25 days after you confirm the order
| Main specification | |||||
| Product model,name | CLW5040XX LED advertising truck | ||||
| Gross weight(Kg) | 4475 | Drive type | 4 x 2 | ||
| Curb weight(Kg) | 4345 | Overall dimension (mm) | 5990×2000×2900 | ||
| Wheelbase(mm) | 3360 | Cab seats (man) | 2 | ||
| Approach / departure angle(°) | 24/15 | Front/rear hang(mm) | 1015/1615 | ||
| Axle load | 1800/2675 | Max speed(Km/h) | 98 | ||
| Chassis specification | |||||
| Chassis model | BJ5071 | Manufacturer | Qingling Motors Co., Ltd. | ||
| Brand name | Foton | Number of axes | 2 | ||
| Tire specification | 7.00-15 | Tires No. | 6 | ||
| Leaf spring | 8/6+5, 4/3+2 | Front track(mm) | 1504 | ||
| Type of fuel | Diesel | Rear track(mm) | 1425 | ||
| Emission standard | Euro IV | Transmission | MSB 5 Forward Gear | ||
| Driving cab |
The shrinking middle Cab, luxury dashboard and seat with air conditioning, and the direction of power |
||||
| Engine model | Engine Manufacturer | Displacement(ml) | Power(KW) | ||
| 4JB1CN | Qingling (Chongqing) Engine Co., Ltd. | 2771 | 72 | ||
| Mobile LED truck specification | |||||
| LED screen size(LxH) | 3840 x 1760 | Led side screen area(m2) | 6.8 | ||
| Screen Lift Height(m) | 1.5 | LED screen’s pixel pitch(mm) | 10 | ||
| RollerScreen Size(mm) | 3840×1460 | Rear monochrome screen size(Length×heigh mm) | 1280×1440 | ||
| Remark |
There be equipped the Silent generator, wooden floors, lighting, ventilation fans, skylights, computers, stereos, amplifiers and other facilities within the body , and 220V external power connector outside the body. |
||||
| [The Main Features of LED truck] | |||||
| 1. This truck is a special vehicle for advertising, generally used for the product promotion, brand promotion, | |||||
| draft activities , live shows sales, sporting events, vocal concerts, concerts and so on! | |||||
| 2. Can be showing at any time, communication, interaction, publicity coverage extensively. | |||||
| And meanwhile effectively get the best of advertising effect,, | |||||
| 3. According to own requirement. you can select the left and right sides and the back medium(include | |||||
| LED full color, Monochrome LED, Light box advertising) , Led full colour screen can be chose P10, P8, P7, P6. | |||||

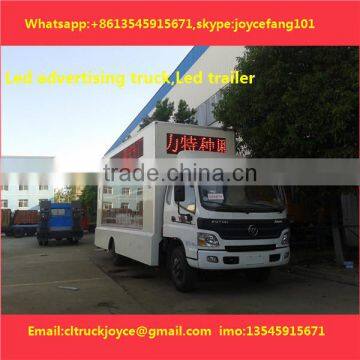

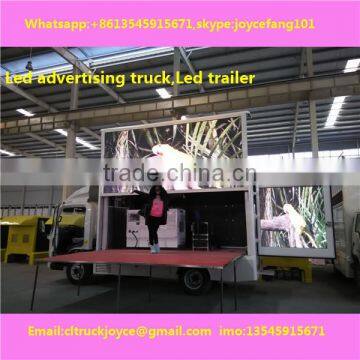

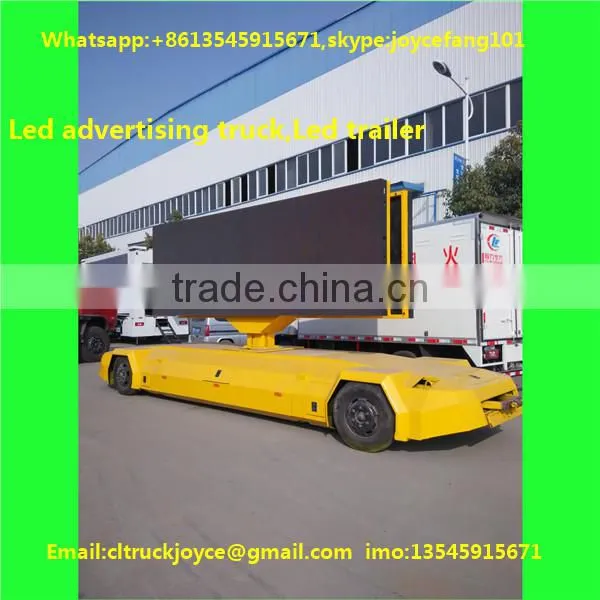

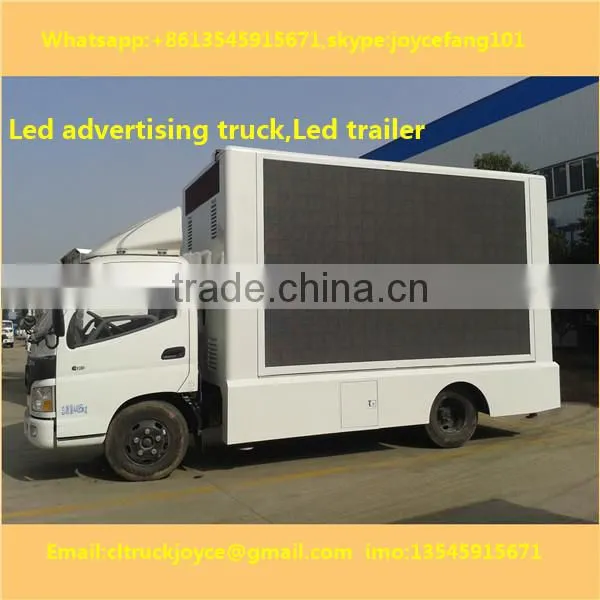

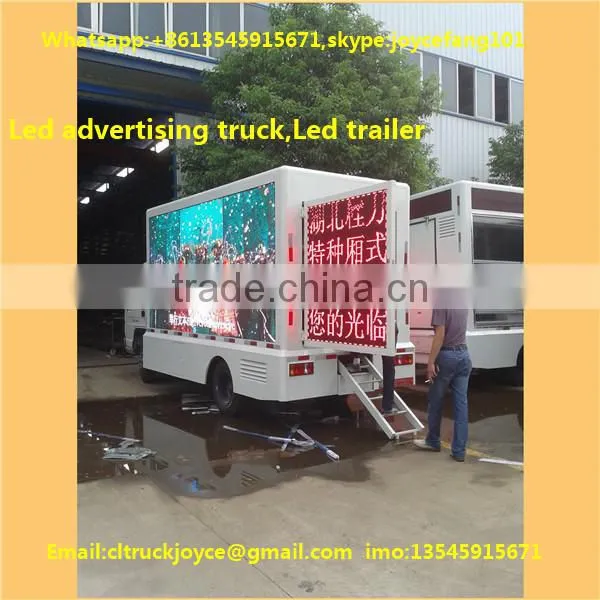

Pictures of 4X2 Mobile Led Advertising Trucks :
More Led truck,Mobile led advertising truck, please contact with me : Ms.Joyce Tel: 0086-13545915671
More informations of delivery, payment terms, warranty of Led truck,Led advertising truck
please contact with me :
Ms.Joyce ( Trade manager)
Tel :0086-13545915671
Whatsapp: +86135459145671
Skype :joycefang101
Wechat : 13545915671
Led advertising truck/Led truck manufacture : Chengli Special Automobile Co.,Ltd
Welcome to visit our factory !!
