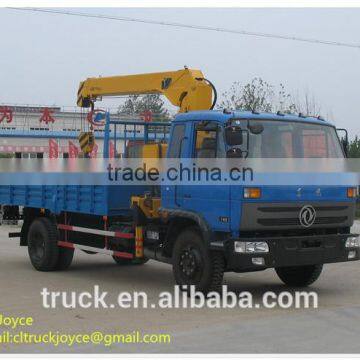

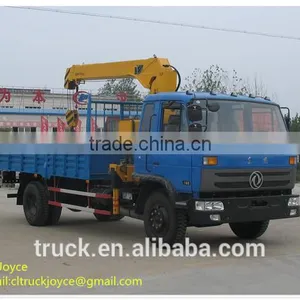

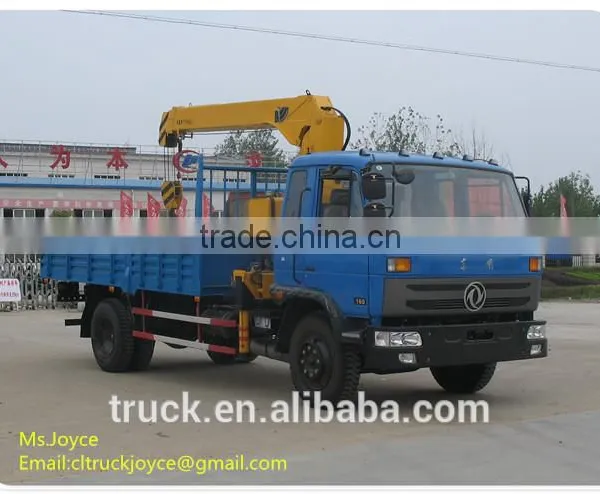

5-10tons Knuckle Crane, Truck With Hiab, Lorry Crane

FOB Price

US$ 28,500 - 68,500 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	all
Rated Loading Capacity	5-10tons	Rated Lifting Moment	151200n.m
Max. Lifting Load	6.3tons	Max. Lifting Height	14m
Span	5	Place of Origin	Hubei, China
Brand Name	Dongfeng	Model Number	SQ6.3SA3
Certification	CCC,ISO	Warranty	12monthes
After-sales Service Provided	Engineers available to service machinery overseas

5-10tons knuckle crane, truck with hiab, lorry crane

Parameters of lorry crane

Item	unit	parameter
Vehicle		Dongfeng Truck With Crane
Overall dimensions	mm	9000x2470x3600
GVW	kg	Appro×12400
loading capacity		Appro×10000
Mass in working order		Appro×7825
Body internal dimensions	mm	6140x2294x550
Wheel base		4700
F/R track base		1250/2650
Approach/departure angle	°	34/16
Exhaust/hp	ml/hp	5900/170
Max speed	km/h	90
Tire specification	9.00-20	Engine type	B17033
Traction system	4×2	transmission	6-speed with over drive
Number of axles	2	Electric system	24v
Operation control system	Electrically hydraulic control	Allowable passengers in cab	2
Engine	Cummins diesel engine
Production cycle	10-15 days
Warranty	12 month,from the date of supply
Contact : Joyce	Tel:+86 13545915671,Skype:joycefang101

More details of knuckle crane

Vehicle model number:					SQ6.3SA3 (6.3ton four straight arm)
Max. Lifting Load (ton)					6.3 ton
Max. Lifting Moment(t.m)					15.12
Section type		pentagon			Revolving mechanism			rotating speed(r/min)			2
Boom number		4						Rotating range°			360(Random)
Length(m)		4.5-12.5			Leg			type			H
Max working radius(m)		12.03						Span(m)			2.28-5.0
Out of speed(m/s)		0.3			Hydraulic system			System pressure(mpa)			18
Amplitude range		1-70						Fuel tank capacity(L)			80
The speed of The arm angular (°/s)		5.1			Safety device			Switch alarm
Max. Lifting Height(m)		14			Vehicle Wt(kg)			2050
Hook lifting speed(m/min)		12.5			Installation space			900mm
Steel wire rope diameter (mm)		9.3			Match truck			Load above 5 tons truck
Steel wire rope length(m)		80
Lifting capacity comparison table
Working radius(m)	2.5		4.0	6.0		7.0	9.0		10.0	11.0		11.9
Rated load(kg)	6300		3000	1190		930	600		490	410		350

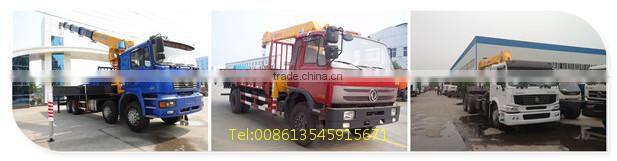

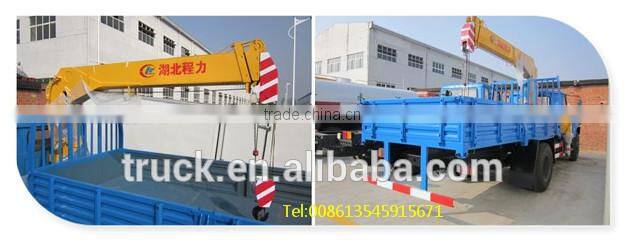

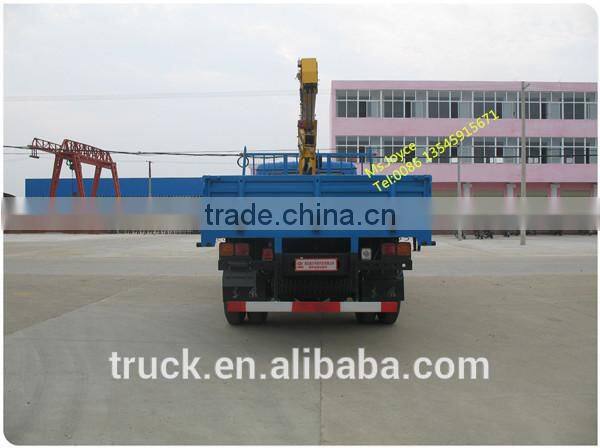

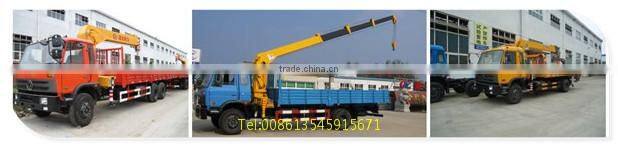

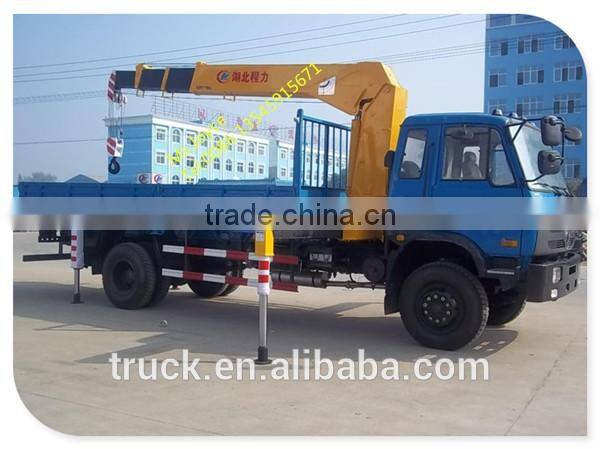

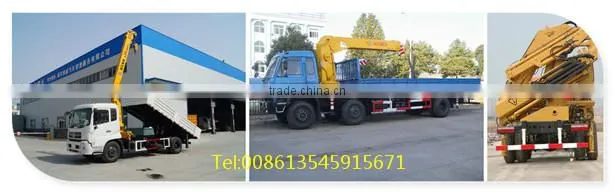

More pictures of truck with hiab

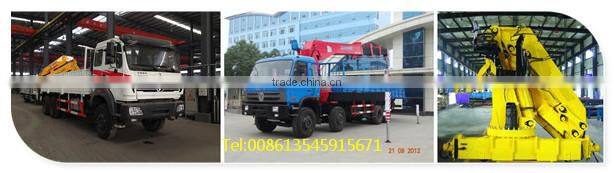

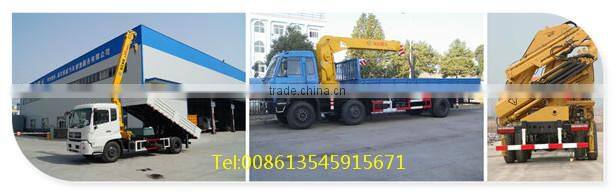

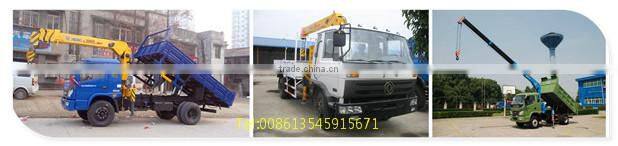

More exported truck with crane for you choose :

Factory photos:

Main certificate:

Main market :

Domestic Market,Africa,Southeast Asia,Mid East,Eastern Asia
