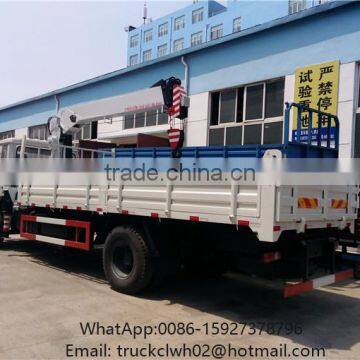

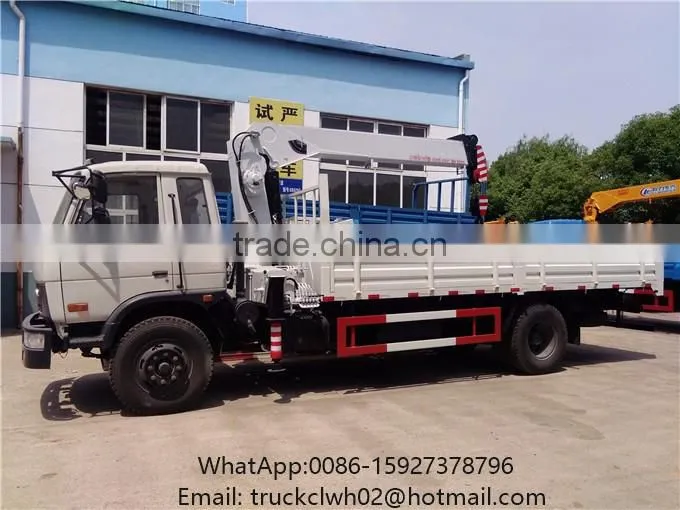

Price of DONGFENG 8 Ton Self Loader Crane Lorry

ITEM

UNIT

PARAMETER

Vehicle

DONGFENG Crane Truck

Overall dimensions

mm

9000×2490×3600

GVW

kg

Appro×16145

Curb weight

Appro×8145

Loading capacity

      Appro×8000

Cargo box dimension

mm

5800×2294×600

Wheel base

5100

F/R track base

1920/1860

Approach/departure angle

°

20/12

Max speed

km/h

90

Chassis parameter

Cabin

One and a half row cabin, power steering, air conditioner

Traction system

4×2, air brake

Engine

Engine brand : DONGFENG CUMMINS

Engine model: CUMMINS B190 33, 190hp

Fuel type: diesel

Displacement: 5900cc

Emission standard: Euro 3

Tire specification

10.00-20,6pcs, and a spare tire

Transmission

8-speed, manual

Production cycle

25 working days

Warranty

12 month.

from the date of supply, if three key parts- engine,axle and transmission broken udner normal use, can be replaced for free charge.

Performance

1. With 10 ton CLW telescopic boom crane.

2. Corrugated iron cargo box.

Maximum lifting weight  (kg)

8000

Cross section form

pentagon

Slewing mechanism

Rotation speed

2 r/min

No.of arm

4

Rotation angle

360 °

Length

4.2--12.6 m

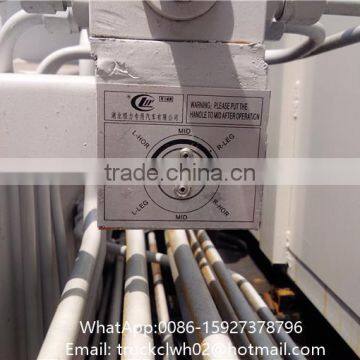

Outrigger

Vertical support legs

Maximum working radius

12.5 m

Cross distance

2.3-5.4 m

Extend speed

0.25 m/s

Hydraulic system

Pressure

21 mpa

Amplitude range

1-70 °

Oil tank volume

120 L

Rise arm speed

5.3 °/s

Safety device

Switch alarm

Max lifting height

14.5 m

Self weight

  3000 (kg)

Hook speed

8.33m/min

Installation space

1200 mm

Steel wire rope diameter

9.3mm

Steel wire rope length

100m

Lifting Capacity Comparison Table

Working radius (m)

2.5

4

5

6

7

9

11

12.5

Load capacity (kg)

8000

4500

3500

2550

1910

1260

910

850
