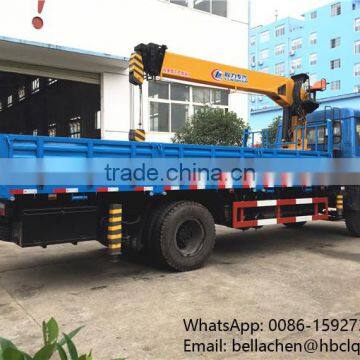

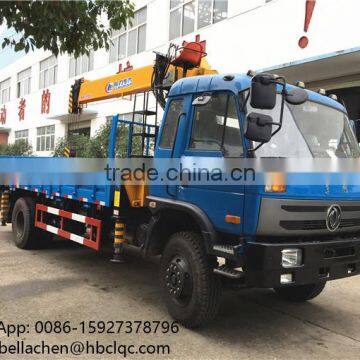

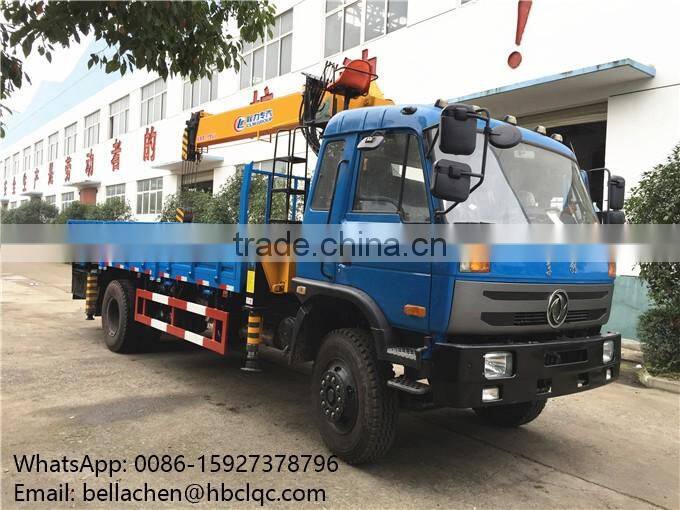

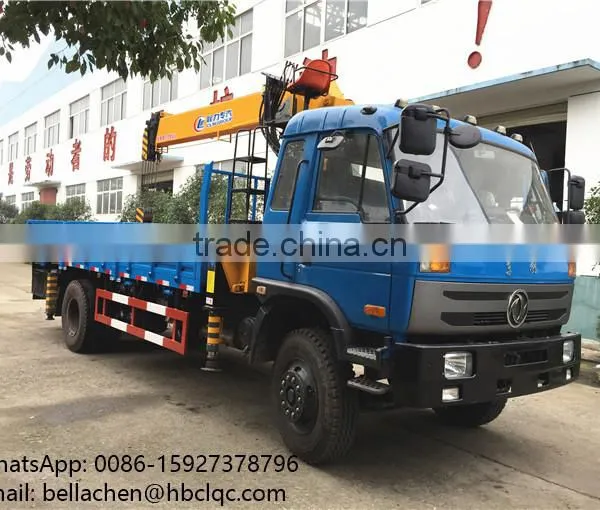

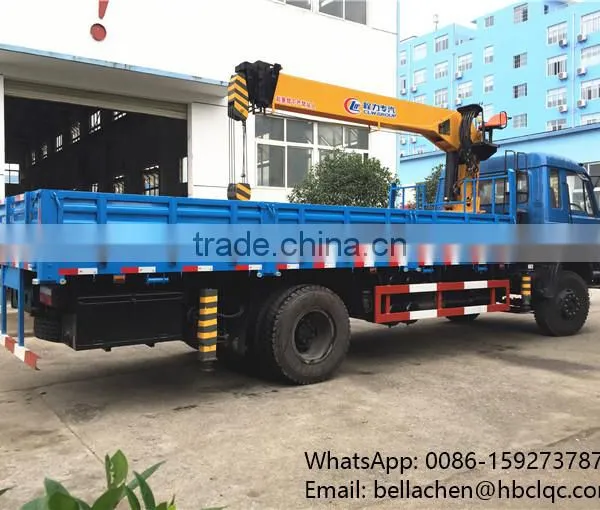

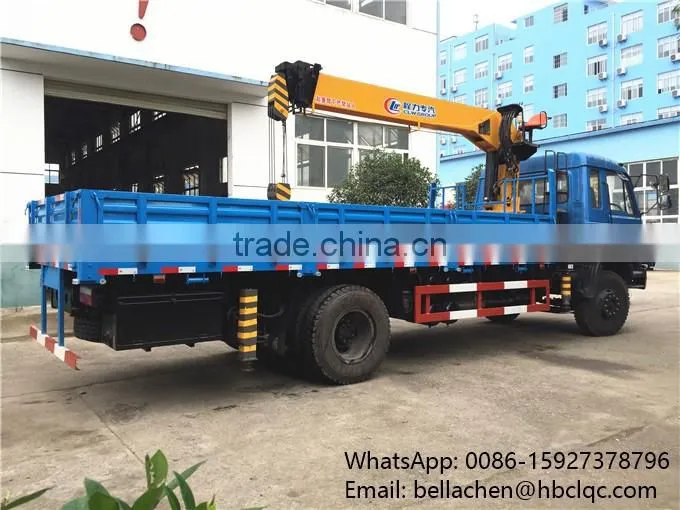

8 tons telescopic boom truck mounted crane.
CLW produce 8 ton crane truck
ITEM |
UNIT |
PARAMETER |
|
Vehicle |
|
DONGFENG Crane Truck |
|
Overall dimensions |
mm |
9000×2490×3600 |
|
GVW |
kg |
Appro×16145 |
|
Curb weight |
Appro×8145 |
||
Loading capacity |
Appro×8000 |
||
Cargo box dimension |
mm |
5800×2294×600 |
|
Wheel base |
5100 |
||
F/R track base |
1920/1860 |
||
Approach/departure angle |
° |
20/12 |
|
Max speed |
km/h |
90 |
|
Chassis parameter | |||
Cabin |
One and a half row cabin, power steering, air conditioner |
||
Traction system |
4×2, air brake |
||
Engine |
Engine brand : DONGFENG CUMMINS Engine model: CUMMINS B190 33, 190hp Fuel type: diesel Displacement: 5900cc Emission standard: Euro 3 |
||
Tire specification |
10.00-20,6pcs, and a spare tire |
||
Transmission |
8-speed, manual |
||
Production cycle |
25 working days |
||
Warranty |
12 month. from the date of supply, if three key parts- engine,axle and transmission broken udner normal use, can be replaced for free charge. |
||
Performance |
1. With 10 ton CLW telescopic boom crane. 2. Corrugated iron cargo box. |
||
Crane specifications
Maximum lifting weight (kg) |
8000 |
|||||||||||
Cross section form |
pentagon |
Slewing mechanism |
Rotation speed |
2 r/min |
||||||||
No.of arm |
4 |
Rotation angle |
360 ° |
|||||||||
Length |
4.2--12.6 m |
Outrigger |
Vertical support legs |
|||||||||
Maximum working radius |
12.5 m |
Cross distance |
2.3-5.4 m |
|||||||||
Extend speed |
0.25 m/s |
Hydraulic system |
Pressure |
21 mpa |
||||||||
Amplitude range |
1-70 ° |
Oil tank volume |
120 L |
|||||||||
Rise arm speed |
5.3 °/s |
Safety device |
Switch alarm |
|||||||||
Max lifting height |
14.5 m |
Self weight |
3000 (kg) |
|||||||||
Hook speed |
8.33m/min |
Installation space |
1200 mm |
|||||||||
Steel wire rope diameter |
9.3mm |
Steel wire rope length |
100m |
|||||||||
Lifting Capacity Comparison Table | ||||||||||||
Working radius (m) |
2.5 |
4 |
5 |
6 |
7 |
9 |
11 |
12.5 |
||||
Load capacity (kg) |
8000 |
4500 |
3500 |
2550 |
1910 |
1260 |
910 |
850 |
||||

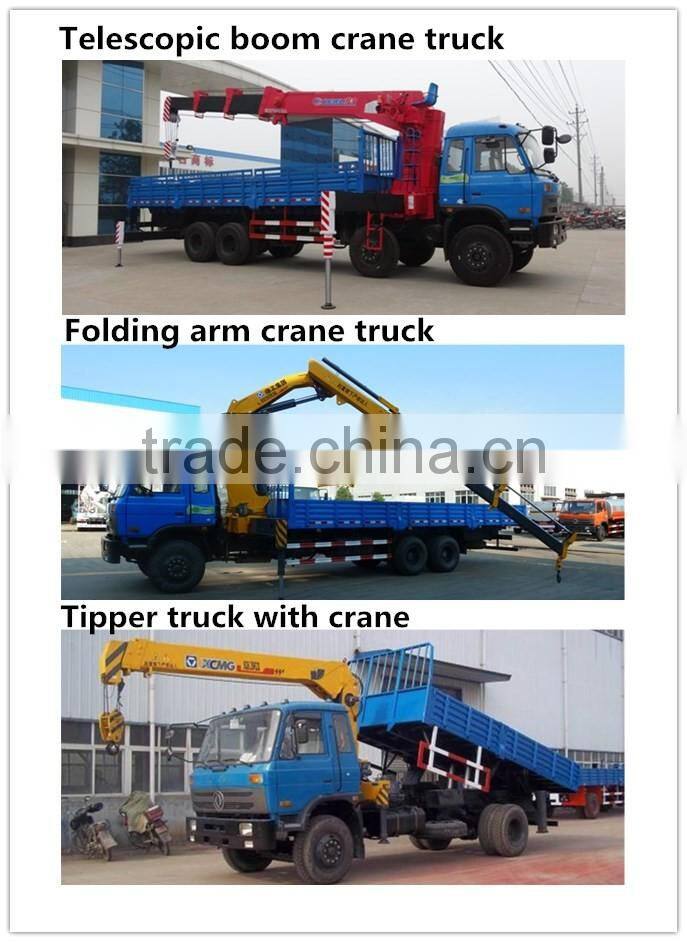

Different types of crane truck
8 tons telescopic boom truck mounted crane packing and shipping : nude, covered with wax , shipping in Container ; in RO/RO ship; in Bulk carrier ship. Choose one way
Chengli Special Automobile Co.Ltd is located in Hubei Province, China, which is the largest special automobile manufacturer in Hubei.
Location is near Wuhan Tianhe airport, convenient to pick up clients to visit our factory.
Factory covers an area of 8 hectares, more than 6000 employees.
China top 500 private manufacturing enterprises
Factory overview
1. Do you have right hand drive truck ?
A: Yes.
2. Can we test truck ?
A: Yes, we will let our workers show you.
3. How to go to your factory ?
A: Our factory is near Wuhan Tianhe Internation Airport, when you arrive at the airport, we can pick you up, then we drive to our factory together.
Customers visiting our factory
