Truck With Crane,4x2 Truck Chassis,truck Mounted Crane

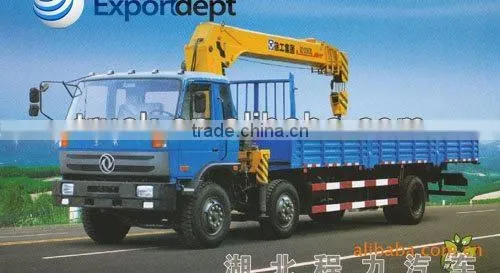

Truck With Crane,4x2 Truck Chassis,truck Mounted Crane photo-1
US$ 10,000 - 35,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
all field
Place of Origin:
Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application all field
Place of Origin Hebei, China
Brand Name Dongfeng
Model Number CLW5080JSQ
Certification ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

5 ton truck with crane



3ton,4ton,5ton,6ton,7ton,8ton,9ton,10ton,12ton,16ton,20 ton for your choose



truck with crane, 4x2 truck chassis



2 arms,3 arms,4arms, straight arm,folding arm ,or customized.

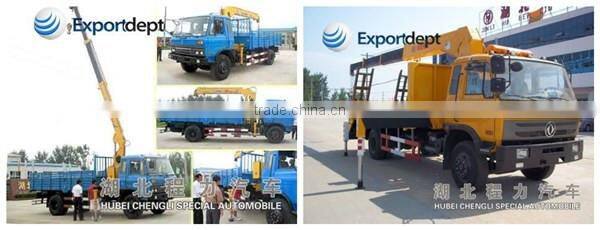

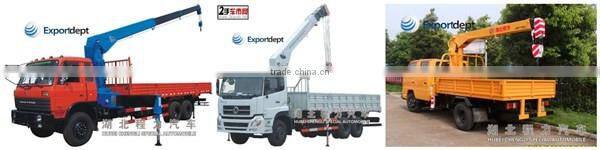

More types of truck mounted crane as picture show:





truck with crane,4x2 truck chassis,truck mounted crane





truck with crane,4x2 truck chassis,truck mounted crane





truck with crane,4x2 truck chassis,truck mounted crane



Details of truck with crane



Item Unit Description
Model   CLW5110JSQ3 Truck mounted Crane
Dimension mm 7050*2420*3150
Box dimension mm 4200*2050*550
GVW kg 5440
Loading Weight Kg Around 6500kg
Wheel Base mm 3800
F/R track base mm 1770/1602
F/R Axles Loading Kg 3000/7000
Approach/Departure angle . 22/11
Traction system 4x2 Tire Specification/Number 7.50-16 / 6 Units
Max speed 85 km/h Number of axles/ability 2
Engine model CY4102-E3C Emission/kw 3856ml /91 Kw ,  125Hp
Diesel, 4 cylinders, direct-line, turbocharge-aftercooling
Engine brand Dong Feng Changyang Engine Co.,Ltd
Operation control system Electrically hydraulic  Transmission 5 speed with over drive
Cab passenger 3 Electric System 24V
Driven System Left hand
Remark Power steering. Fuel Tank : 100L , Color~ Option. Option~ 340 USD if installing air condition. Option~ Could also add dump function
Equipment
Original crane model SQ5SA2 Option model  TO be Confirmed
5 tons, three arms(two extendible arm)
